AHD 1080P MDVR Monitor 7 Inch Split Display Monitor SD Card Camera Rear View Reversing Kit for RV Motorhome Truck Bus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VM-M705QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 7 Inch AHD Mirror Car Monitor | Ratio: | 16:9 |
|---|---|---|---|
| Selling Points: | All The Way VGA Input | Cameras: | 4-8 CVBS AHD Cameras |
| Voltage: | DC 12~36V | Video Format:: | H.264 |
| Storage: | SD Card | Warranty: | 18 Months |
| Screen Resolution: | 1024*R.G.B*600 | Special Function: | Light Sensing Function, Can Automatically Adjust The Screen Brightness Day And Night, |
Product Description
AHD 1080P MDVR Monitor 7 Inch Split Display Monitor SD Card Camera Rear View Reversing Kit for RV, Motorhome, Truck, Bus
MDVR Split Display Monitor Paramenters
|
Model
|
VW-M704QA
|
|
Screen
|
7 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED 500-650cd/㎡
|
|
View angle
|
L/R: 85°
UP/Down: 85° |
|
Video Input
|
4-Channel AHD Video Input
Single/2/3/4/6 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|
SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
DC 12V-36V input,12V output
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|
Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|

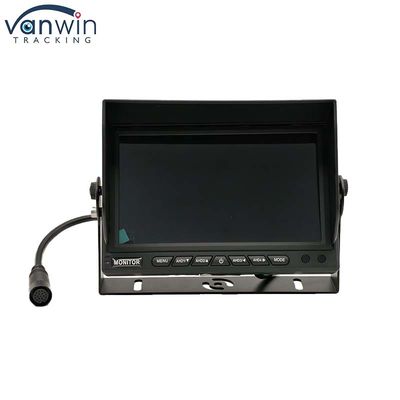

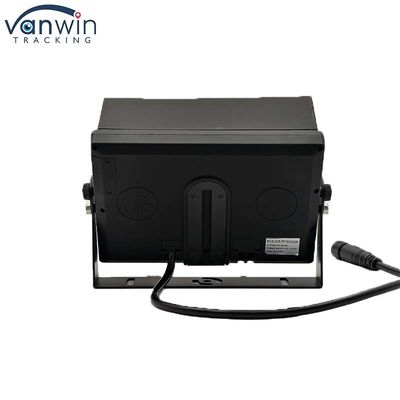

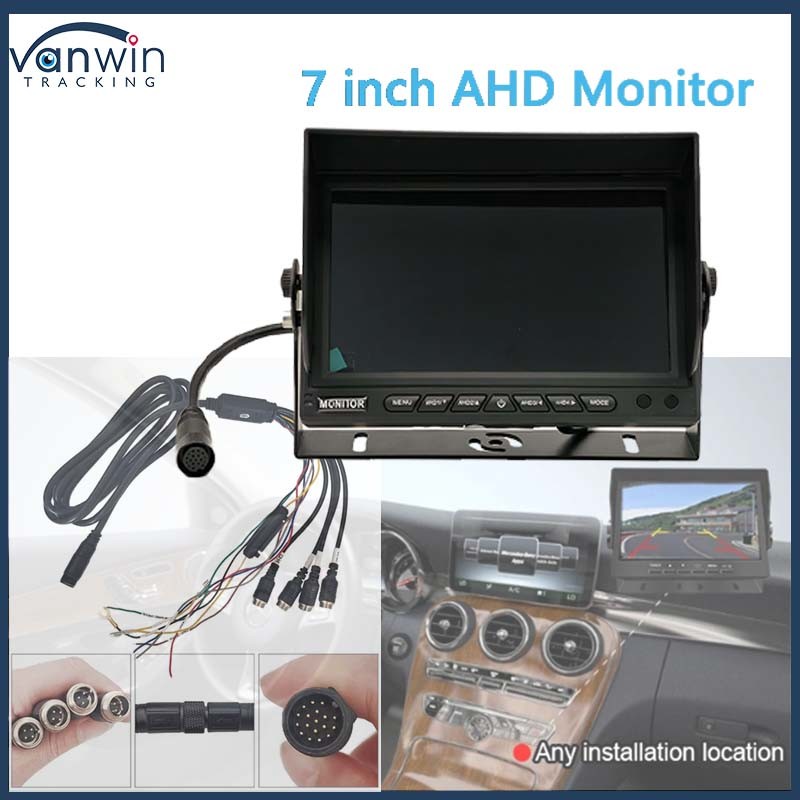

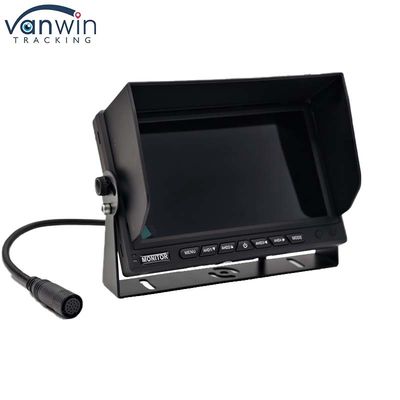

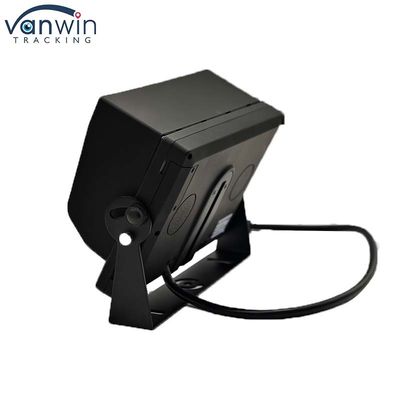

MDVR Split Display Monitor Photos
Why Choose Our Display?
Exclusivity: Unique design and custom control board ensure unmatched quality and performance.
Innovation: AI integration and light-sensing technology set new standards for smart displays.
Versatility: Multi-signal compatibility and intelligent interaction cater to a wide range of user needs.
Comfort: Adaptive brightness and ergonomic design prioritize user comfort and safety.
Reliability: Built to withstand harsh environments, ensuring long-lasting performance.
MDVR Monitor Applications:
Commercial Vehicle Monitoring
Public Transportation Systems
Logistics and Transportation
Security Surveillance
