7 Inch LCD Security TFT Car Monitor with 4 channel AV inputs, 32GB SD card storage
Product Details:
| Place of Origin: | Shenzhen,Guandong |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW702-DVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 pcs per month ;7 Inch LCD Security TFT Car Monitor with 4 channel AV inputs |
|
Detail Information |
|||
| Power Supply: | 12V-24V DC Optional | Screen Size: | 7 Inch TFT LCD With DVR Quad Picture |
|---|---|---|---|
| Resolution: | 800xRGBx480 | Installation Place: | Standalone |
| View Angle: | Hor. L(70) R(70) Ver. UP(50) DOWN(70) | Usage: | For Monitoring System |
| Product Name: | 800x 480 Quad Screen 7 Inches TFT Car Monitor With DVR Recording | Warranty: | 12 Months |
| Highlight: | car reverse lcd monitor,car rear view monitor |
||
Product Description
7 Inch LCD Security TFT Car Monitor with 4 channel AV inputs, 32GB SD card storage
Specification
| Screen Ratio:16:9 |
| Back Light Luminance:LED, 300cd/㎡ |
| Resolution:800xRGBx480 |
| Compatiblesystem:NTSC & PAL (automatically) |
| OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
| View angle:Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
| Image reversion:UP/Down and Left/Right |
| Power requirement:12V DC (12-24V DC optional) |
| Power consumption:＜8W |
| Size:180mm*121mm*24mm |
| Key color: Black rubber oil, radium carving, through blue light |
| Shockproof level:4G |
| DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI |
| Memory interface:1 SD interface |
| Video storage:SD high-speed card, maximum support 32G |
| AV Inputs:4 way video input,1way audio input |
| Number of Trigger and display:4 triggers |
| Optional functions:4 PIN connector, Butterfly style bracket |
| Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor |

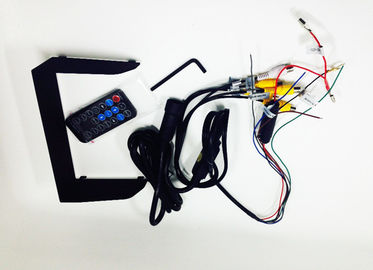

| Accessories:Remote controller, Power supply cable , User manual, Bracket |
Pictures
BNC and 4-pin cable for optional below
About US
We are professional manufacturer of 4ch/8ch mobile dvr system with monitors ,cameras.They are used for vehicle fleeting management and safety monitoring.The full system are very necessary for buses ,truck,school buses,tailer,police cars, bank money carrying cars and so on.
3G remote viewing real time monitoring function let you see what drivers and passengers are doing ,where they are with GPS tracking .
Welcome you to test.
