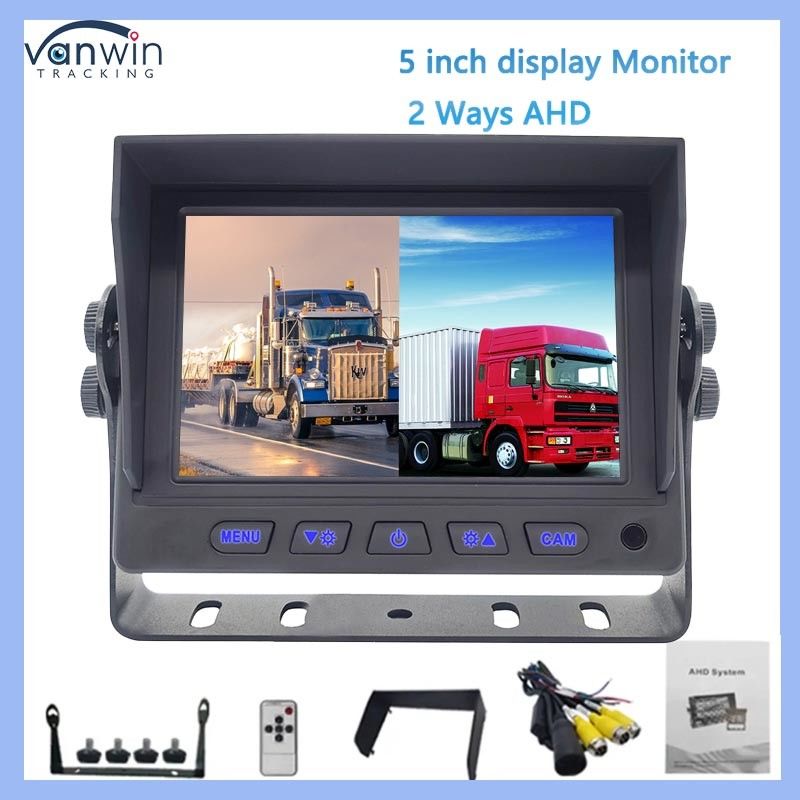

5 Inch Car GPS Monitor HD AHD Digital TFT LCD Small Auto Monitoring System IPS Rear View Display
Product Details:
| Place of Origin: | Shenzhen,Guandong |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M504A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 pcs per month ; 9 inch Car Monitor Rear View with TFT LCD Display and Quad Pictures for optional |
|
Detail Information |
|||
| Product Name: | 5 Inch Car Monitor Rear View With TFT LCD Display And Quad Pictures For Optional | Installation Method: | Standalone |
|---|---|---|---|
| Car Make: | Bus,Car,Truck Or Any Vehicle | Ratio: | 16:9image |
| Resolution: | 800xRGBx480 | Warranty: | 12 Months |
| Quad Screen: | Optional | TV System: | NTSC & PAL (automatically) |
| Power Supply: | 9-36V DC/ Output 12V | Power Consumption: | 5W |
| Storage Temperature: | -30〜80℃ | Working Temperature: | -20℃ To 70℃ |
Product Description
5 Inch Car GPS Monitor HD AHD Digital TFT LCD Small Auto Monitoring System IPS Rear View Display
5 Inch Car GPS Monitor Specification
(Detachable sunshade)
| Screen Ratio | 5”high digital new panel ,16:9image |
|
Back Light Luminance /Resolution/ View angel |
LED, 500cd/㎡ /800xRGBx480 /Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
| AV Inputs(standard) | 2 way video input, 2 way audio input,1 ways Trig function, |
| AV Inputs (Optional) | 3 way video input,2 way audio input,3ways Trig function |
| Function(optional) | Light sensor automatic adjustment(optional) |
| Compatible system | NTSC & PAL (automatically) |
| OSD control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
| Image reversion | UP/Down and Left/Right |
| Power requirement | 9-36V DC/ Output 12V |
| Power consumption | 5W |
| Storage temperature | -30〜80℃ |
| Working temperature | -20℃ to 70℃ |
| Size | 140*102*26(56)mm |
| Exterior color | Black rubber oiling |
| Montior And Camera Connector | RCA/ 4pin connector (Optional) |
| Accessories | Remote controller, Power supply cable , User manual, U type bracket |
1. very hot model ,used for rear view system with 1-4 cameras ,or for monitoring system working with car mobile dvr.
2. 5 inch ,7inch ,9inch ,10inch ,12 inch for optional. Quad monitor or normal one
3. One year warranty
4. Full image/2 images/3 images/4 images to show
why did you choose us
With 15 years of professional experience, we have provided different customized solutions to customers all over the world and are a supplier to many branded companies. Has a strong customization ability, can customize unique products according to customer requirements, one-stop to provide monitoring systems for different transportation, do not need to spend time to purchase matching equipment from other companies. The products of our company fully covered include hard disk video recorder, vehicle traveling data recorder, camera, display and expansion and other auxiliary equipment. Excellent quality, each product before the factory has gone through a series of strict production tests to ensure the stability of the product structure and reliable function. With the same quality, our prices are more favorable than brand companies, and many customers from Streamax or Hikvision Stonkam or Howen also buy from us. Our business experience, good at communication, love of work, careful patience, whole process orders will actively communicate with production department and customers confirmation details, personally check goods before delivery, to ensure that customers get the best product to use experience, is a very good partner.
5 Inch Car GPS Monitor Application scenario
