Mini Car Rear View Monitor 5 Inch In-car High Definition Display For Taxi Bus Truck RV
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M504A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000 pcs per month |
|
Detail Information |
|||
| System: | PAL / NTSC | Connector: | RCA / 4pin |
|---|---|---|---|
| Power Consumption: | 5W | Language: | Variety, Can Also Add Customization |
| Size: | 140*102*26(56)mm | Color: | Black |
| Warranty: | 12 Month | ||
Product Description
Mini Car Rear View Monitor 5 Inch In-car High Definition Display For Taxi Bus Truck RV
Our monitors are of good quality and good price, and each product has undergone strict production testing before leaving the factory to ensure the stability of the product structure and reliable function. We provide a complete set of vehicle monitoring system equipment, absolutely perfect to meet your needs.
1. Hd display optimization
5 inches in size, 1080p resolution, provides high-definition monitoring picture, anti-glare coating for strong light environment.
The compact design ADAPTS to the center control of small cars to avoid visual field obstruction.
2. Out-of-the-box compatibility
Embedded/suction/support three-mode installation, compatible with multiple signal sources such as reversing image and driving recorder.
12V/24V directly connected car circuit, no modification and low power consumption.
3. Intelligent driver assistance
Multi-task split screen: navigation, vehicle condition diagnosis, multimedia synchronous display.
Use with AI MDVR, voice control +ADAS warning (lane departure/obstacle ranging).
4. Industrial durability
-20℃~70℃ wide temperature range operation, anti-seismic and dust-proof structure, modular components easy to maintain.
5. Economic expansion
Excellent pricing, suitable for private car/truck/RV, support firmware upgrade and external module expansion.
Main Specification
| Specifications | VW-504A |
| Screen Ratio | 5" high digital new panel ,16:9image |
|
Back Light Luminance /Resolution/ View angel |
LED, 500cd/㎡ /800xRGBx480 /Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
| AV Inputs (standard) | 2 way video input, 2 way audio input, 1 ways Trig function |
| AV Inputs (optional) | 3 way video input, 2 way audio input, 3ways Trig function |
| Function (optional) | Light sensor automatic adjustment (optional) |
| Compatible system | NTSC & PAL (automatically) |
| OSD control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
| Image reversion | UP/Down and Left/Right |
| Power requirement | 9-36V DC/ Output 12V |
| Power consumption | 5W |
| Storage temperature | -30〜80℃ |
| Working temperature | -20℃ to 70℃ |
| Size | 140*102*26(56)mm |
| Exterior color | Black rubber oiling |
| Monitor And Camera Connector | RCA/ 4pin connector (Optional) |

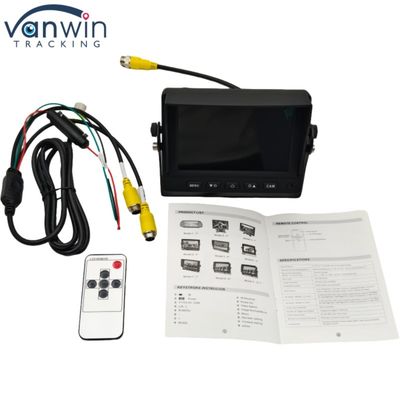

| Accessories | Remote controller, Power supply cable , User manual, U type bracket |

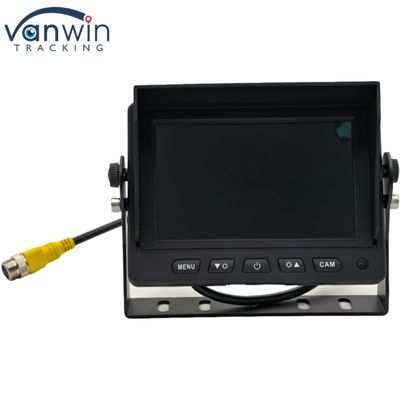

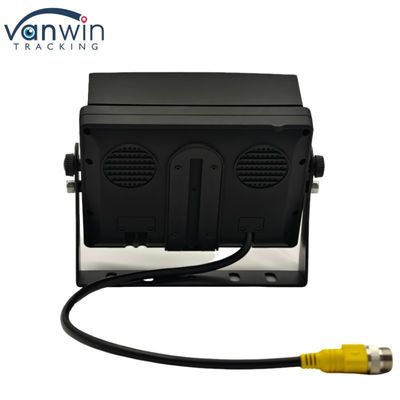

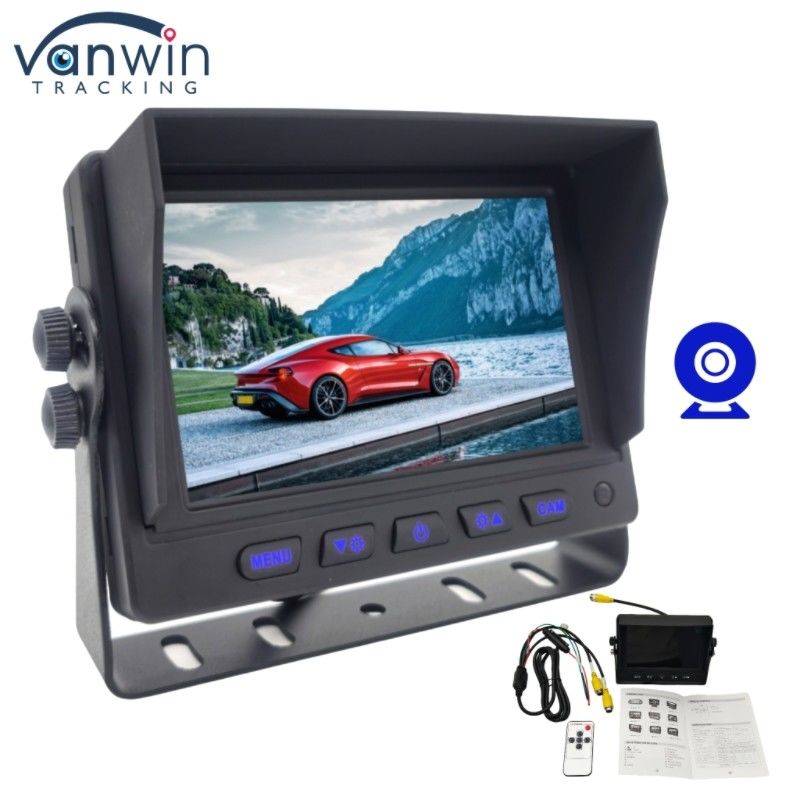

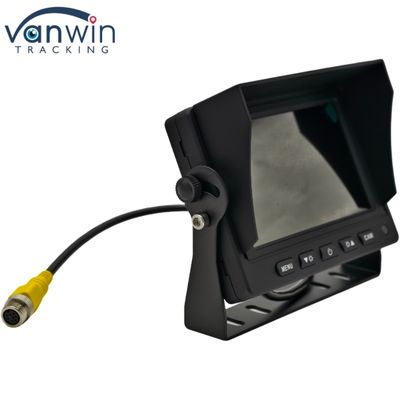

Product Picture
Application Scenarios
Our Industry Advantage
We specialize in the research, development, production, and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Committed to stringent quality control, our professional QC teams consistently deliver high-standard products. We have had the privilege of serving major companies worldwide and customizing specialized projects for clients across the globe. Look forward to the opportunity to collaborate with you in the near future.
FAQ
1.Q: How do I install this monitor on my car?
A: We have detailed product installation and operation instructions to help you install and use this monitor better and faster.
2.Q: Can I buy a complete system including cameras from you?
A: Of course, we provide a complete vehicle monitoring system equipment, you can solve the problem in our one-time.
3.Q: Are there any features that can help me monitor if my driver employees are driving properly?
A:Yes, we have DMS (Driving Monitoring System) function, which can be extended to this product to help your company monitor whether the driver's driving behavior is compliant.
4.Q: What is the lead time on orders?
A: In stock: Ship within 72 hours
Bulk order: 15-30 business days
