7-inch AHD Quad-Channel Split Car Monitor Vehicle Display Monitoring System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/ROHS |
| Model Number: | VW-M704QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| System: | PAL / NTSC | Power Consumption: | 7W |
|---|---|---|---|
| Working Temperature Range: | -20~70℃ | Certification: | CE,FCC,RoHS |
| Warranty: | 1 Year | Connector: | RCA / 4pin |
| Highlight: | 7-inch Car Monitor,Vehicle Display Monitoring System,Quad-Channel Split Car Monitor |
||
Product Description
7" AHD Car Monitor Quad-Channel Split Suitable For Various Vehicle
Our best seller car monitor: the new 7-inch HD and high-brightness digital screen supports IPS full viewing Angle and full coverage of the monitoring range. With the use of vehicle video recorder, vehicle security camera, to provide you with high-definition monitoring, enjoy a safer and more efficient driving experience.
7" AHD Car Monitor Key Features

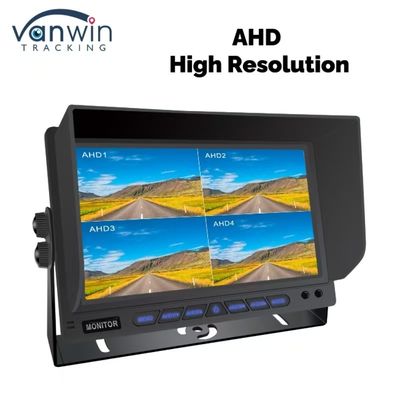

AHD High-definition Resolution: 4-channel AHD video input, high-definition monitoring picture display.
Different Signals Compatible: Supports 720P@25/30, 960P@50/60, 1080P@25/30 and CVBS multiple video mixed input.
IPS full viewing angle: 180° coverage in all directions, up, down, left and right.
Mode: Multiple picture splitting modes, each monitoring picture can be displayed separately, or two, three or four monitoring pictures can be combined for display.
Monitor Menu: Supports adjustment of brightness, contrast, color, volume, language, mirroring, and reversing delay function.
Power Protection: High and low voltage protection and reverse protection, anti-shock pulse 60V.
Video Connector: RCA plug and 4P aviation plug are available.
| Specifications | Model number: VW-M704QA |
| Screen Ratio | 7″high digital new panel ,16:9image |
|
Back Light Luminance /Resolution View angle(standard) |
LED500-650cd/㎡ /1024xRGBx600/Hor. L/ R(85)Ver. UP/DOWN(85) |
| AV Inputs | Four-channel AHD video input,adjustable display of image1/ image2/ image3/ image4,Support AHD 720P@25/30,960P@50/60 ,1080P@25/30Pand CVBS multi-video hybrid input |
| Audio Input | Built-in speaker,1 way audio input(V2) |
| Number of Trigger and Display | 4 ways Trig functionTrigger priority:V2>V1>V3>V4 |
| Other Features | 4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor |
| Compatible System | NTSC & PAL (automatically) |
| OSD Control |
Color, Brightness, Contrast, Volume, Language (English, Chinese) |
| Power Requirement | Input 9V-36DC/output,12V |
| Power Consumption | 7W |
| Working Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Size | 180*121*26(75)mm |
| Exterior Color | Black rubber oiling,The key blue light, |
| Montior And Camera Connector | RCA/ 4pin connector (Optional) |
| Accessories | Remote controller, Power supply cable , User manual, Metal U type bracket |

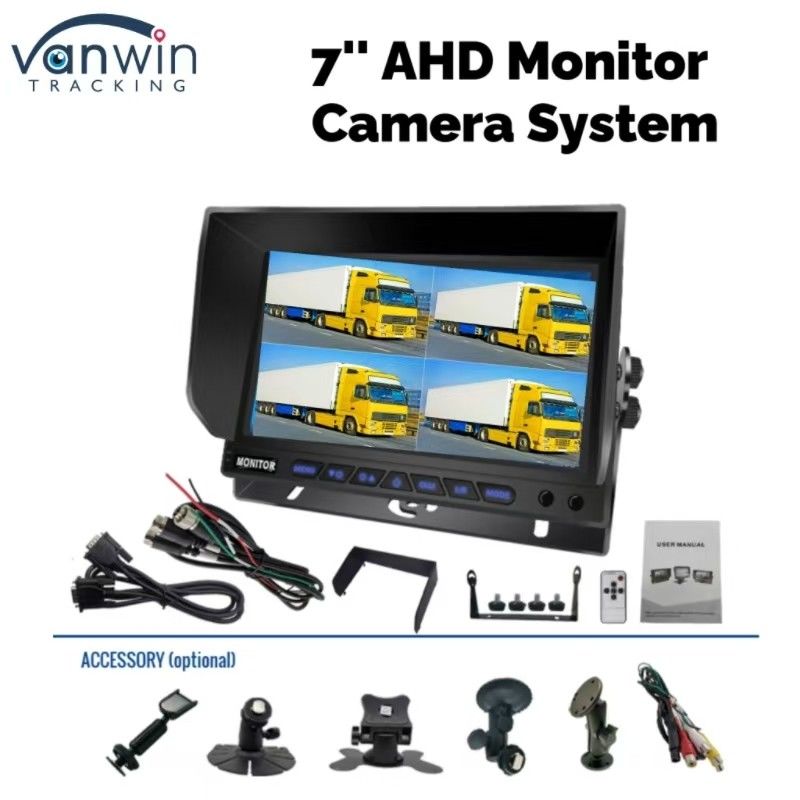

7" AHD Car Monitor Product Picture
Our Industry Advantage
We specialize in the research, development, production, and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Committed to stringent quality control, our professional QC teams consistently deliver high-standard products. We have had the privilege of serving major companies worldwide and customizing specialized projects for clients across the globe. Look forward to the opportunity to collaborate with you in the near future.
FAQ
1. What is the MDVR Split Display Monitor?
The MDVR Split Display Monitor is a high-resolution monitor designed for use with Mobile Digital Video Recording systems. It allows users to view multiple camera feeds simultaneously through its split-screen functionality.
2. How many video inputs does the monitor support?
The monitor supports up to four video inputs, enabling users to monitor different camera feeds at the same time.
3. What types of connections does the monitor have?
The monitor features multiple input interfaces, including HDMI, VGA, and AV, making it compatible with a wide range of devices.
4. How do I install the MDVR Split Display Monitor?
The monitor comes with various mounting accessories and a user-friendly design, allowing for easy installation in various vehicles and settings.
