10.1 Inch AHD 1080P MDVR Monitor 4 Channel Full HD Waterproof Split Display Monitor For Vehicle
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VM-M1018QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 10.1 Inch AHD Mirror Car Monitor | Ratio: | 16:9 |
|---|---|---|---|
| Selling Points: | All The Way VGA Input | Cameras: | 4-8 CVBS AHD Cameras |
| Voltage: | DC 12~36V | Monitor Types: | 10.1 Inch |
| Video Format:: | H.264 | Storage: | SD Card |
| Warranty: | 18 Months | Water/dust Resistant Rating: | IP69K |
| Screen Resolution: | 1024*R.G.B*600 | Special Function: | Light Sensing Function, Can Automatically Adjust The Screen Brightness Day And Night, |
| Highlight: | Vehicle AHD MDVR Monitor,4 Channel AHD MDVR Monitor,10.1 Inch AHD MDVR Monitor |
||
Product Description
10.1 Inch AHD 1080P MDVR Monitor 4 Channel Full HD Waterproof Split Display Monitor For Vehicle
MDVR Split Display Monitor Description
The MDVR Split Display Monitor is a high-performance, multifunctional display designed specifically for Mobile Digital Video Recording (MDVR) systems. Its innovative split-screen functionality allows users to monitor multiple video sources simultaneously, enhancing safety and convenience.
MDVR Split Display Monitor Key Features:
1.Unique Design: This display is the only one of its kind in the market, featuring a privately customized control board that ensures superior performance and exclusivity.
Comprehensive Functionality with Built-in AI
2.AI Integration: Equipped with advanced AI capabilities, such as driver behavior analysis (e.g., fatigue detection) and real-time alerts, enhancing safety and user experience.
3.Unique Light-Sensing Design for Enhanced Comfort
Adaptive Brightness: The built-in light sensor automatically adjusts screen brightness based on ambient light conditions, reducing eye strain and improving visibility.
User Comfort: Ensures optimal display clarity in all environments, whether in bright sunlight or low-light conditions.
4.Multi-Signal Compatibility for Versatile Use
Seamless Connectivity: Supports multiple signal inputs (HDMI, AV, VGA, USB-C), allowing compatibility with various devices such as cameras, navigation systems, and entertainment units.
Flexible Applications: Ideal for diverse scenarios, including fleet management, public transport, and personal vehicles.
5.Intelligent Interaction for a Superior User Experience
User-Friendly Interface: Features an intuitive touchscreen and voice control for effortless operation.
Customizable Display: Supports split-screen functionality, enabling users to view multiple inputs simultaneously (e.g., navigation, rearview camera, and media).
MDVR Split Display Monitor Paramenters
|
Model
|
VW-M1018DV
|
|
Screen
|
10.1 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED 500-650cd/㎡
|
|
View angle
|
L/R: 85°
UP/Down: 85° |
|
Video Input
|
4-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|
SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
DC 12V-36V input,12V output
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|
Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|

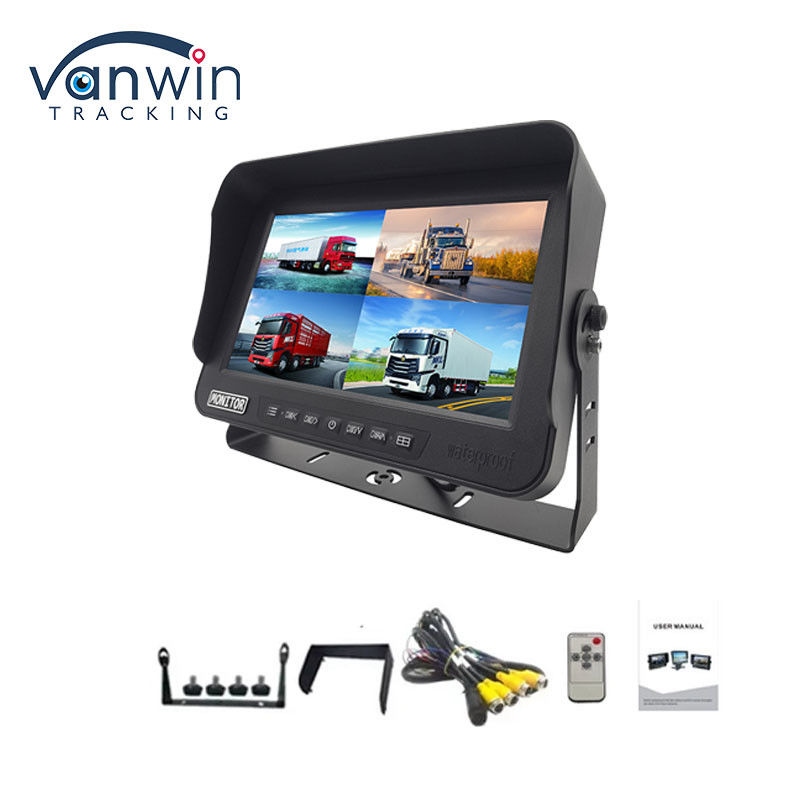

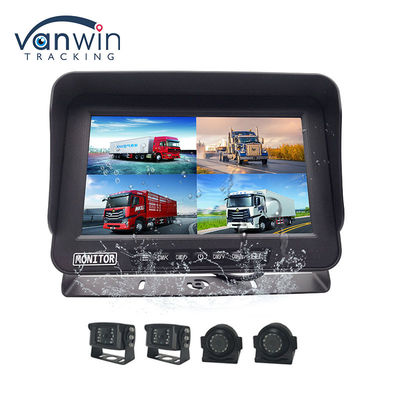

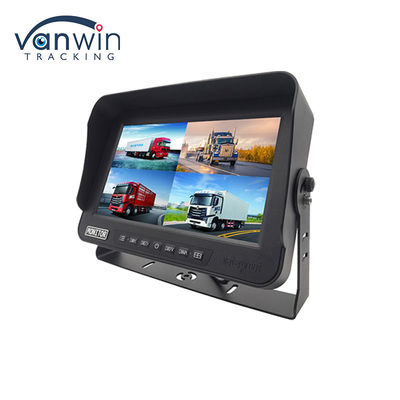

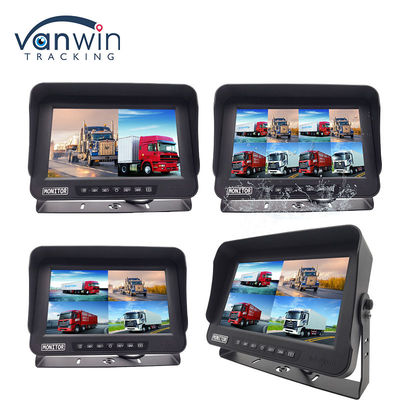

MDVR Split Display Monitor Photos
MDVR Monitor Applications:
Commercial Vehicle Monitoring
Public Transportation Systems
Logistics and Transportation
Security Surveillance
About Us
We have always adhered to the concept of sincerity,kindness,and altruism,customer-oriented,and do our best to help customers benefit mankind!
We believe in making the world a safer place for drivers and pedestrians We do this professionally by owning our entire manufacturing process, by having a deep understanding of the vehicle safety field with over 15 years of experience, and by using only the highest quality materials and up-to-date with the most advanced AI technology.
FAQ
Q1. What is the MDVR Split Display Monitor?
The MDVR Split Display Monitor is a high-resolution monitor designed for use with Mobile Digital Video Recording systems. It allows users to view multiple camera feeds simultaneously through its split-screen functionality.
Q2. How many video inputs does the monitor support?
The monitor supports up to four video inputs, enabling users to monitor different camera feeds at the same time.
Q3. What types of connections does the monitor have?
The monitor features multiple input interfaces, including HDMI, VGA, and AV, making it compatible with a wide range of devices.
Q4. Is the monitor suitable for outdoor use?
Yes, the monitor is built with rugged materials designed to withstand harsh environmental conditions, making it suitable for outdoor use.
Q5. Where can I purchase the MDVR Split Display Monitor?
The monitor can be purchased through various online retailers, electronics stores, or directly from manufacturers specializing in vehicle monitoring systems.
