7 Inch Wireless Car Monitor Solar Camera Kit With IP68 CCTV Security Wireless Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | W12-F75-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 7 Inch Wireless Monitor And Solar Camera Kit | Video Inputs: | 1CH/2CH/3CH/4CH |
|---|---|---|---|
| Size: | 7 Inch | Viewing Angle: | 150° |
| Function: | Solar Energy,Magnetic Suction,Shockproof,Waterproof,Night View,Wide Angle | Waterproof Level: | IP68 |
| Voltage: | DC 8-32V | Application: | All Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine |
| Highlight: | IP68 Wireless Car Monitor,Wireless Car Monitor Solar Camera Kit,CCTV Camera Wireless Car Monitor |
||
Product Description
7 Inch Wireless Monitor Kit Description
7 Inch Wireless Monitor Solar Camera Kit With IP68 CCTV Security Wireless Camera
The 7 Inch Wireless Monitor Kit is designed for seamless and efficient monitoring in various applications, including security, surveillance, and remote viewing. This versatile kit features a high-resolution display and wireless connectivity, making it ideal for both indoor and outdoor use.
7 Inch Wireless Monitor Kit Key Features:
-

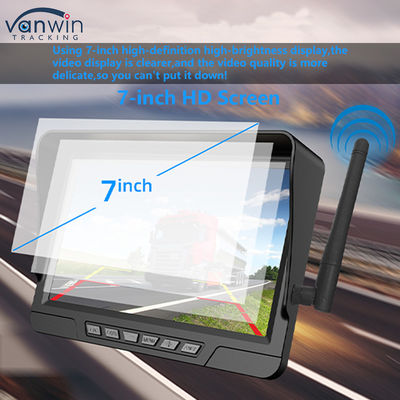

7-Inch LCD Display: Enjoy clear and vibrant visuals with a 1024x600 resolution screen. The monitor provides excellent color reproduction and brightness, ensuring visibility in various lighting conditions.
-
Wireless Connectivity: Utilize advanced wireless technology to connect with compatible cameras or devices without the hassle of cables. This feature allows for flexible installation and easy setup.
-
Built-in Battery: The rechargeable battery ensures portability and uninterrupted monitoring, making it perfect for on-the-go use.
-
Multiple Input Options: The monitor supports multiple input sources, including HDMI and AV, providing versatility for different applications.
-
User-Friendly Interface: Navigate through menus effortlessly with an intuitive interface, allowing for quick adjustments and settings.
-
Durable Design: Built to withstand various environmental conditions, this monitor is ideal for both home and commercial use.
-
High-Definition Display: Enjoy crystal-clear images on the 7-inch LCD screen, providing a wide viewing angle for comprehensive monitoring.
-
Wireless Connectivity: Say goodbye to cumbersome cables with advanced wireless technology that ensures easy installation and flexibility in placement.
-
Night Vision: Equipped with infrared LEDs, this camera provides excellent visibility even in low-light conditions, ensuring your property is monitored 24/7.
-
Two-Way Audio: Communicate directly through the camera with built-in speakers and a microphone, allowing for real-time interaction.
-
Motion Detection: Receive instant alerts on your device whenever motion is detected, enhancing your security setup.
-
Weather Resistant: Built to withstand the elements, this camera is suitable for both indoor and outdoor use.
-
Easy Setup: With simple installation instructions and user-friendly interface, you can set up your camera in minutes without any technical expertise.
7 Inch Wireless Car Monitor Camera Main Features
| System model | W12-F75-7 |
| HD Wireless Monitor (MWHD-774H) | |
| Color LCD screen | 7-inch IPS screen |
| Wireless reception | Built-in 2.4G wireless receiver |
| Picture mode | 4ch single screen switching + 2 split + 3 split + Quad |
| working frequency | 2400~2483.5MHZ |
| Receiving sensitivity | ≤-86 dB |
| Receiving distance | Open ≤300m |
| Multi-frequency automatic frequency hopping channel code ion | 80 |
| Resolution | 1024(H) X 600(V)dot |
| Color system | PAL/NTSC (AUTO) |
| Brightness(cd/m2) | 600 |
| Load dump | DC24+174V(Td350mS) 5pulses |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Working temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Working voltage | DC8-32V |
| Dimensions | (L x W x T) (218 x 150 x 54mm) |
| 1080P Wireless Camera(CWHD-152M) | |
| Image sensor | 1/2.9 Color DSP |
| Wireless transmission | Built-in 2.4G digital wireless transmitter |
| Transmit power | 18dBm |
| Launch distance | Open area≤100m |
| Resolution | 1080P |
| effective pixels | 1920(H) X 1080(V) |
| Viewing angle | 150° |
| Infrared distance | 15 meters |
| Shell material | Aluminum alloy |
| Waterproof rating | IP68 |
| Working voltage | DC8-32V |
| Working temperature | -20ºC to +60ºC |
| Storage temperature | -30ºC to +70ºC |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Dimensions | 106(W) x 75(H) x 70.4(D) mm |
Applications:
-
Home security monitoring
-
Baby monitoring
-
Outdoor surveillance
-
Remote camera viewing for events
FAQ:7 Inch Wireless Monitor and Camera Kit
1. What is included in the kit?
-
The kit typically includes a 7-inch wireless monitor, one or more wireless cameras, power adapters, mounting brackets, and user manuals.
2. How do I set up the monitor and camera?
-
First, connect the monitor to a power source. Then, power on the camera(s) and pair them with the monitor according to the instructions in the user manual.
3. What is the range of the wireless connection?
-
The wireless range can vary, but it generally operates effectively within 30 meters (about 100 feet) in open spaces. Walls and obstacles may reduce this range.
4. Can I add more cameras to the system?
-
Yes, most kits allow you to add additional cameras. Check the specifications to ensure compatibility with your monitor.
5. Is the camera weatherproof?
-
Many wireless cameras are designed for outdoor use and come with weatherproof ratings. Check the specifications for details.
6. What is the battery life of the camera?
-
Battery life varies by model and usage but typically ranges from several hours to a few days on a full charge. Some cameras may also support continuous power through a wired connection.
7. Can I use the monitor without the camera?
-
The monitor is primarily designed to work with the camera(s). However, some models may have additional features like media playback.
8. What should I do if the connection is lost?
-
Ensure both the monitor and camera are powered on and within range. Restart both devices if necessary. Refer to the troubleshooting section of the manual for more detailed steps.
9. How do I adjust the camera settings?
-
Most cameras can be configured through the monitor interface. Look for a settings menu to adjust parameters like brightness, contrast, and motion detection.
10. Is there a warranty on the kit?
-
Warranty details vary by manufacturer. Check the product packaging or the manufacturer's website for specific warranty information.
