10.1 Inch 1080P Wireless Car Monitor Camera Kit Night View Function Camera Split Monitor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | W12-F75-10.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Name: | 10.1 Inch Wireless Car Monitor Camera Kit | Warranty: | 18 Months |
|---|---|---|---|
| Size: | 10.1 Inch | Color: | Black |
| Waterproof Grade: | IP68 | Viewing Angle: | 150° |
| Power Supply: | DC 8-32V | Aspect Ratio: | 16:9 |
| Highlight: | 1080P Wireless Car Monitor Camera Kit,10.1 Inch Car Monitor Camera Kit,Night View Camera Split Monitor |
||
Product Description
10.1 Inch Wireless Car Monitor Camera Kit Description
10.1 Inch 1080P Wireless Car Monitor Camera Kit Night View Function Camera Split Monitor
Transform your driving experience with our 10.1-Inch Wireless Car Monitor Camera Kit, designed to enhance safety, convenience, and visibility on the road. This all-in-one kit combines a high-definition monitor and a wireless rearview camera, offering seamless installation and reliable performance for cars, trucks, RVs, and more.
Key Features
Wireless HD Transmission
- Enjoy stable, interference-free video transmission up to 100 feet (30 meters) via advanced 2.4GHz wireless technology, eliminating the need for complex wiring.
10.1-Inch Large Display
- A crisp 1280x720 HD resolution screen provides a wide viewing angle and vivid visuals, ensuring clear visibility day or night.
IP68 Waterproof Rear Camera
- The rugged, weatherproof camera features night vision with 6 LED infrared lights, delivering sharp images even in low-light or rainy conditions.
Plug-and-Play Installation
- Easy setup with included power cables and a wireless receiver. No professional tools required—simply mount the camera and connect to the monitor.
Versatile Mounting Options
- Monitor can be attached to the dashboard or windshield using the suction cup or bracket. The camera fits license plates, tailgates, or bumpers.
Dual Power Supply
- Monitor powers via a 12V car charger, while the camera uses a reverse light connection (auto-activation) or optional continuous power mode.
10.1 Inch Wireless Car Monitor Camera Main Features
| System model | W12-F75-10.1 |
| HD Wireless Monitor (MWHD-774H) | |

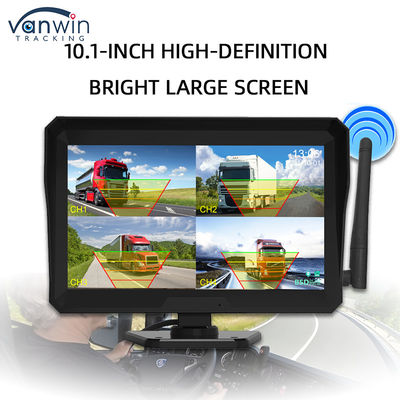

| Color LCD screen | 10.1-inch IPS screen |
| Wireless reception | Built-in 2.4G wireless receiver |

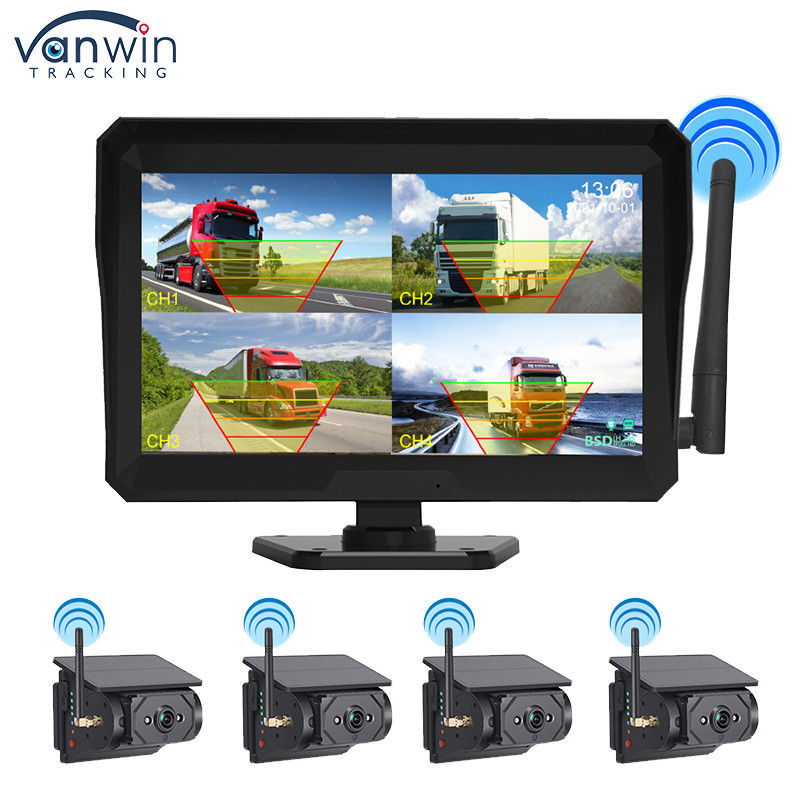

| Picture mode | 4ch single screen switching + 2 split + 3 split + Quad |
| working frequency | 2400~2483.5MHZ |
| Receiving sensitivity | ≤-86 dB |
| Receiving distance | Open ≤300m |
| Multi-frequency automatic frequency hopping channel code ion | 80 |
| Resolution | 1024(H) X 600(V)dot |
| Color system | PAL/NTSC (AUTO) |
| Brightness(cd/m2) | 600 |
| Load dump | DC24+174V(Td350mS) 5pulses |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Working temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Working voltage | DC8-32V |
| Dimensions | (L x W x T) (218 x 150 x 54mm) |

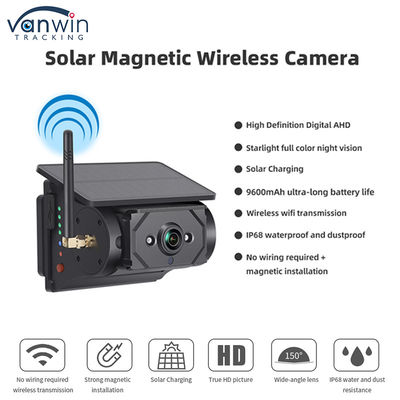

| 1080P Wireless Camera(CWHD-152M) | |
| Image sensor | 1/2.9 Color DSP |
| Wireless transmission | Built-in 2.4G digital wireless transmitter |
| Transmit power | 18dBm |
| Launch distance | Open area≤100m |
| Resolution | 1080P |
| effective pixels | 1920(H) X 1080(V) |
| Viewing angle | 150° |
| Infrared distance | 15 meters |
| Shell material | Aluminum alloy |
| Waterproof rating | IP68 |
| Working voltage | DC8-32V |
| Working temperature | -20ºC to +60ºC |
| Storage temperature | -30ºC to +70ºC |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Dimensions | 106(W) x 75(H) x 70.4(D) mm |
10.1 Inch Wireless Car Monitor Camera Kit Photos
FAQ for 10.1 Inch Wireless Car Monitor Camera Kit
1. What is included in the kit?
-
The kit typically includes a 10.1-inch wireless monitor, a wireless camera, mounting brackets, a power cable, and an instruction manual.
2. Is the camera waterproof?
-
Yes, most wireless cameras in this kit are designed to be waterproof and suitable for outdoor use.
3. How do I install the monitor and camera?
-
Installation involves mounting the camera on the rear of your vehicle and connecting the monitor to a power source. Detailed instructions are provided in the manual.
4. What is the range of the wireless signal?
-
The wireless signal typically has a range of about 50-100 meters, depending on obstacles and environmental conditions.
5. Can the monitor display multiple camera feeds?
-
Some models allow for connecting multiple cameras, enabling you to switch between different views.
6. How do I pair the camera with the monitor?
-
Follow the pairing instructions in the manual, which usually involve turning on both devices and pressing the pairing button.
7. What is the resolution of the camera?
-
The camera usually offers HD resolution, commonly around 720p or 1080p, providing clear video quality.
8. Is there a night vision feature?
-
Yes, many models come with infrared night vision, allowing for visibility in low-light conditions.
9. Can I use the monitor for other devices?
-
Some monitors have HDMI or AV inputs, allowing you to connect other devices such as DVD players or gaming consoles.
10. What is the warranty period?
-
Warranty periods vary by manufacturer, but most offer at least a one-year warranty for parts and labor.
