Waterproof HD 12.3 Inch Truck Bus E-Mirror Side View Blind Spot Dual Lens Camera System Side View Rear View Car Monitor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-1230LS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Type: | 12.3 Inch Truck Bus E-Mirror Side View Blind Spot Dual Lens Camera System | Warranty: | 18 Months |
|---|---|---|---|
| View Angle: | H=150°,V=90° | Waterproof: | IP 68 |
| Video Inputs: | 2 CH Video Input And 2 Splits Display | Feature: | Blindspot Video Display |
| Application: | Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine | Resolution: | 1080P |
| Power Supply: | DC12V±10% | Power Consumption: | ≤1.5W |
| Highlight: | 12.3 Inch Truck Bus E-Mirror,Blind Spot Truck Bus E-Mirror,HD Truck Bus E-Mirror |
||
Product Description
Waterproof HD 12.3 Inch Truck Bus E-Mirror Side View Blind Spot Dual Lens Camera System Side View Rear View Car Monitor
Key Features:
-
High-Resolution Imaging: The camera captures high-definition video footage, ensuring sharp and detailed images for optimal surveillance.
-
Night Vision Capability: Utilizing infrared technology, the camera provides exceptional clarity in darkness, allowing you to monitor your surroundings with ease.
-
Wide-Angle Lens: With a broad field of view, the camera covers more area, reducing blind spots and enhancing overall safety.
-
Easy Installation: Designed for convenient mounting, the camera can be easily installed in various vehicle types without professional assistance.
-
Durable Design: Built to withstand the rigors of daily use, the camera is resistant to weather conditions and impacts, ensuring long-lasting performance.
-

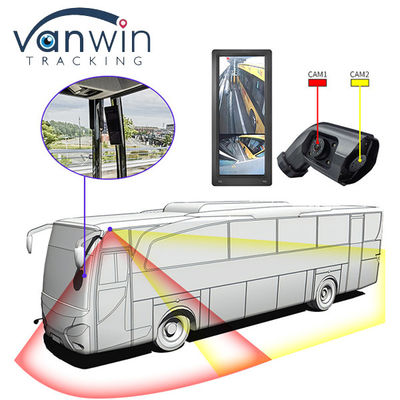

Blindspot security: The camera&mirror system supports 2CH video display for each side of the bus, to make sure driver could view blindspot clearly and avoid accidents.
12.3 inch Mirror Specification:
| Item | 12.3inch Electronic Rearview Mirror | |
| Chip sensor | Hiss HI3520 (V300) | |
| System language | Chinese/English (others can be customized) | |
| Video compression format | H.264 Compression | |
| Brightness | 850cd/m2 | |
| Contrast | 800:1 | |
| OSD | Support time, date, channel characters, partition frame, vehicle information and other image overlay | |
|
Video and recordImage system
|
Video input | 2video AHD1080P/960P/720P ,960H/CVBS mixed input； support PAL and NTSC system auto display |
| Display model | Multi-picture mode combination display, support manual/voltage trigger full screen display function | |
| Resolution | 1920*1080 ,1280*720 ,1024*768 | |
| Recording resolution | 1920*1080 | |
| Video | Support 1080P/960P/720P/CVBS | |
| Video recording | Automatic power-on video recording | |
| Trigger input | 2 video I/O trigger, support 12-24V, Power triggered full screen display | |
|
Storage |
SD card
|
Support 2-512G SD card,loop recording
|
| Upgrade method | Support SD card recording upgrade | |
| Recording | Real-time storage, no frame loss, no missing seconds | |
|
Video playback |
Video search | Can choose the latest three days, the latest week, the latest two weeks, the latest month, all, etc. |
| playback | 2 Video synchronous playback supports pause, fast forward, and fast rewind | |
| Support 2, 4, 8 times fast forward or backward | ||
| Power supply and consmption |
Adaptive wide power input, with low voltage, overvoltage, reverse short-circuit protection functions;
|
|
| Power input | DC:+15V ~ +35V | |
| Power output | +11.5V/3A | |

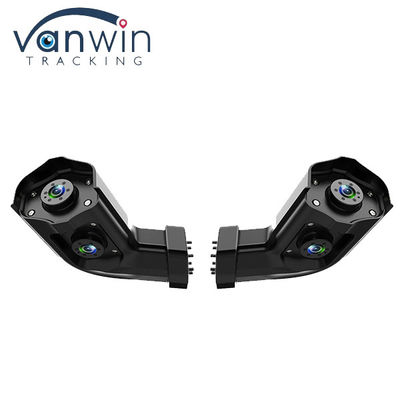

Dual Len Camera Specificaiton:
| Item | Dual Lens Camera |
| Chip Sensor | SONY IMX307 |
| Image sensor | 1/2.8 " |
| Pixel Size | 2.9um x 2.9um |
| Pixel | 1945*1109 |
| Min.Lux | 0.0001Lux(@F1.2,AGC ON) |
| TV system | NTSC standard/Pal Optional |
| Lens | 150°(H) for front view /90°(H) for rear view |
| Waterproof | IP68 |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 1080P@25fps / 1080P@30fps |
| Video output | 1920(h)*1080(v) |
| Current output | DC:12V ±10% |
| Operating temperature | -30~70℃ |
| Stable Image temperature | -40~80℃ |
| Input frequency | 74.25/37.125MHz |
| Size | 109*74*46cm |
Night Vision Car Dome Camera User Precautions
Installation:
- Ensure proper installation according to the manufacturer’s guidelines to avoid damage and ensure optimal performance.
- Mount the camera securely to prevent it from falling or shifting during driving.
Power Supply:
- Use only the recommended power supply to avoid electrical issues.
- Regularly check the power connections to ensure they are secure and free from corrosion.

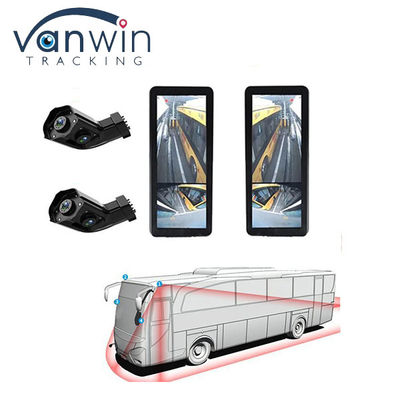

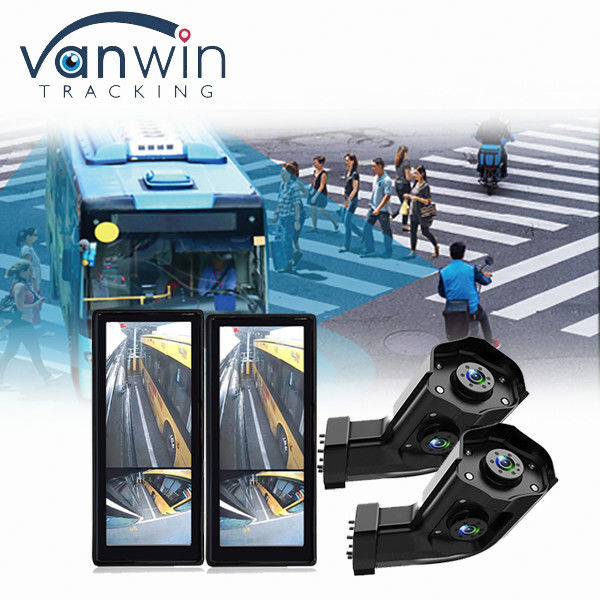

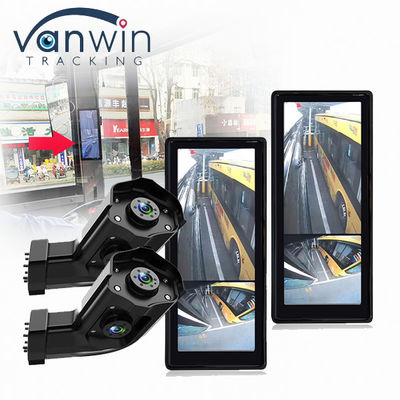

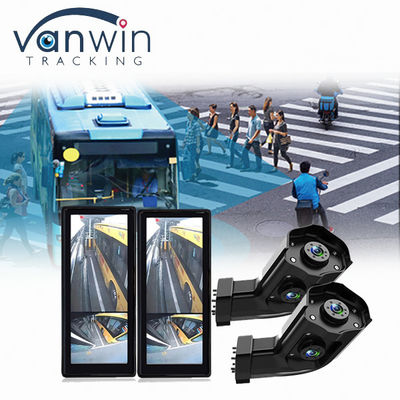

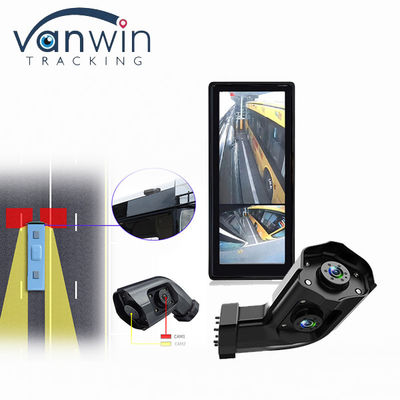

Product Pictures
