9 Inch AHD 1080P MDVR Monitor 8 Channel Full HD Split Display Monitor For Vehicle
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-910HQ-DVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 9 Inch Mirror Car Monitor | Ratio: | 16:9 |
|---|---|---|---|
| Selling Points: | All The Way VGA Input | Cameras: | 4-8 AHD Cameras |
| Video Input: | 4-8 Video Input | Voltage: | DC 12~36V |
| Monitor Types: | 9 Inch | Video Format:: | H.264 |
| Storage: | SD Card | Warranty: | 18 Months |
| Highlight: | 8 Channel AHD 1080P MDVR Monitor,Vehicle AHD 1080P MDVR Monitor,9 Inch AHD 1080P MDVR Monitor |
||
Product Description
9 Inch AHD 1080P MDVR Monitor 8 Channel Full HD Split Display Monitor For Vehicle
MDVR Split Display Monitor Description
The MDVR Split Display Monitor is a high-performance, multifunctional display designed specifically for Mobile Digital Video Recording (MDVR) systems. Its innovative split-screen functionality allows users to monitor multiple video sources simultaneously, enhancing safety and convenience.
MDVR Monitor Key Features:
-
High Definition Display: Equipped with a high-resolution screen that ensures clear and detailed image quality, suitable for various lighting conditions.
-
Split-Screen Functionality: Supports up to four video inputs, allowing users to choose their preferred split-screen mode for real-time monitoring from different cameras.
-
Rugged and Durable: Constructed from impact-resistant materials, this monitor is built to withstand harsh environments, ensuring reliable long-term performance.
-
Easy Installation: Features a simple design with various mounting accessories, making it suitable for a wide range of vehicles and applications.
-
Multiple Input Interfaces: Compatible with HDMI, VGA, and AV inputs, providing strong versatility.
-
User-Friendly Interface: Intuitive controls and settings make adjustments straightforward and efficient.
MDVR Monitor Applications:
- Commercial Vehicle Monitoring
- Public Transportation Systems
- Logistics and Transportation
- Security Surveillance
MDVR Split Display Monitor Paramenters
|
Model
|
VW-910HQ-DVR
|
|
Screen
|
9 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED, 500cd/m2
|
|
View angle
|
L/R: 180°
UP/Down: 180° |
|
Video Input
|
8-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|

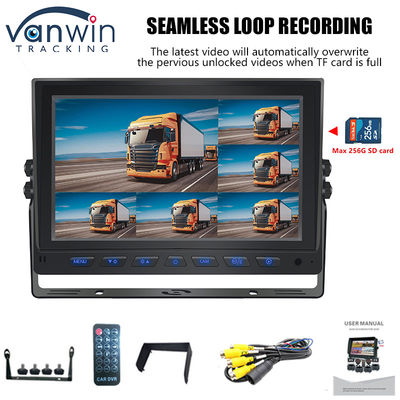

SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
DC 12V-36V input,12V output
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|

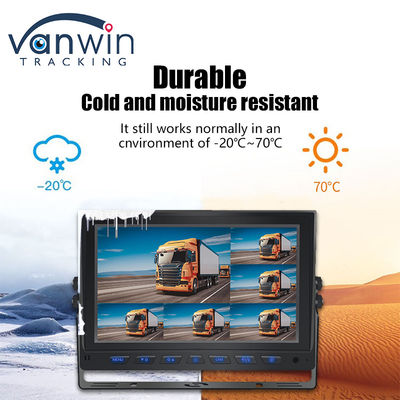

Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|
Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|

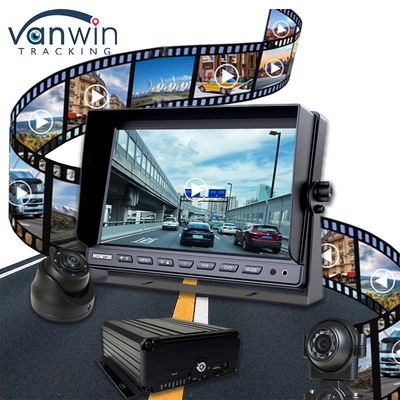

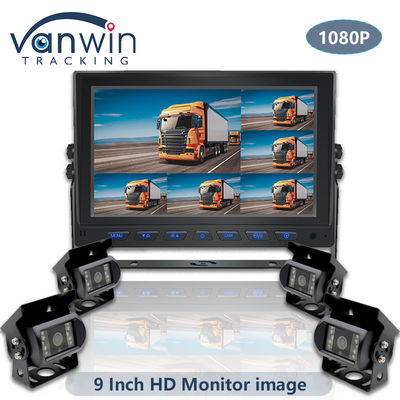

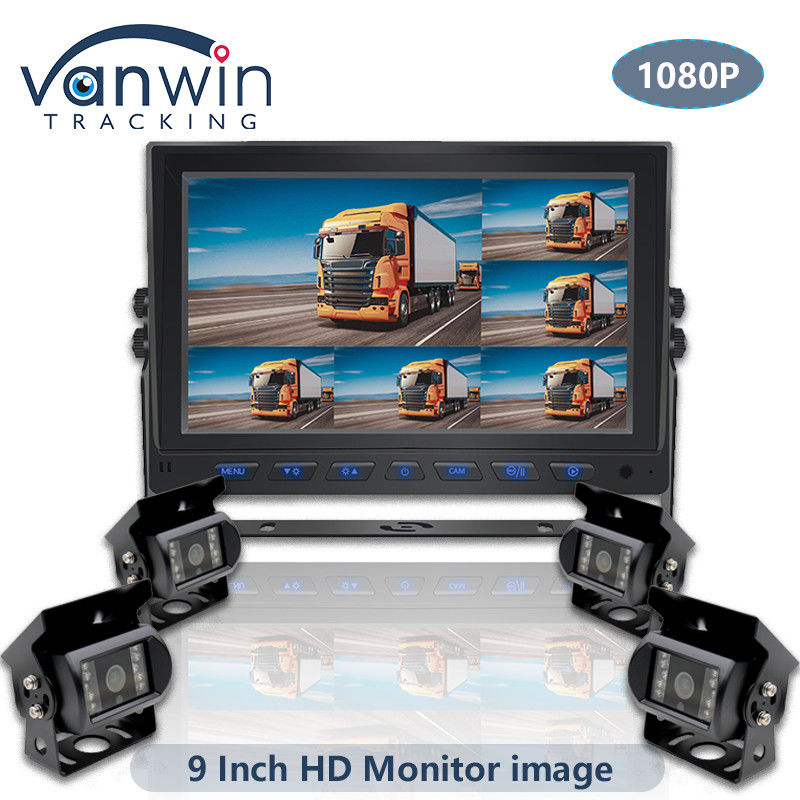

MDVR Split Display Monitor Photos
About Us
We have always adhered to the concept of sincerity,kindness,and altruism,customer-oriented,and do our best to help customers benefit mankind!
We believe in making the world a safer place for drivers and pedestrians We do this professionally by owning our entire manufacturing process, by having a deep understanding of the vehicle safety field with over 15 years of experience, and by using only the highest quality materials and up-to-date with the most advanced AI technology.
We is one high-tech industry specializing in R&D,production,sales of vehicle video monitoring system,3G/4G/5G/GPS monitoring kits,intellectual public transit dispatcher`s monitoring system,video people counter.Our products refers to SD HDD mobile dvr,3G/4G/5G remote control monitoring dvr with mature ADAS DMS BSD,vehicle multi-media Ads machine,car camera,software etc.They are widely used in public transport, passengers traffic,logistics,law enforcement cars,escort and so on.With very strong research technology,senior industry background,very stable good quality,on-time production&delivery capacity,high efficiency service,we soon have achieved in one of the leaders in the market.
FAQ
Q1. What is the MDVR Split Display Monitor?
The MDVR Split Display Monitor is a high-resolution monitor designed for use with Mobile Digital Video Recording systems. It allows users to view multiple camera feeds simultaneously through its split-screen functionality.
Q2. How many video inputs does the monitor support?
The monitor supports up to four video inputs, enabling users to monitor different camera feeds at the same time.
Q3. What types of connections does the monitor have?
The monitor features multiple input interfaces, including HDMI, VGA, and AV, making it compatible with a wide range of devices.
Q4. Is the monitor suitable for outdoor use?
Yes, the monitor is built with rugged materials designed to withstand harsh environmental conditions, making it suitable for outdoor use.
Q5. What is the screen resolution?
The monitor offers a resolution of 1920 x 1080, providing clear and detailed images.
Q6. How do I install the MDVR Split Display Monitor?
The monitor comes with various mounting accessories and a user-friendly design, allowing for easy installation in various vehicles and settings.
Q7. Can I use the monitor with different types of vehicles?
Yes, the MDVR Split Display Monitor is versatile and can be used with commercial vehicles, public transport, logistics vehicles, and more.
Q8. What is the power requirement for the monitor?
The monitor operates on a DC power supply, with options for both 12V and 24V input.
Q9. Does the monitor have a warranty?
Warranty details may vary by manufacturer, so it's recommended to check the warranty information provided at the time of purchase.
Q10. Where can I purchase the MDVR Split Display Monitor?
The monitor can be purchased through various online retailers, electronics stores, or directly from manufacturers specializing in vehicle monitoring systems.
