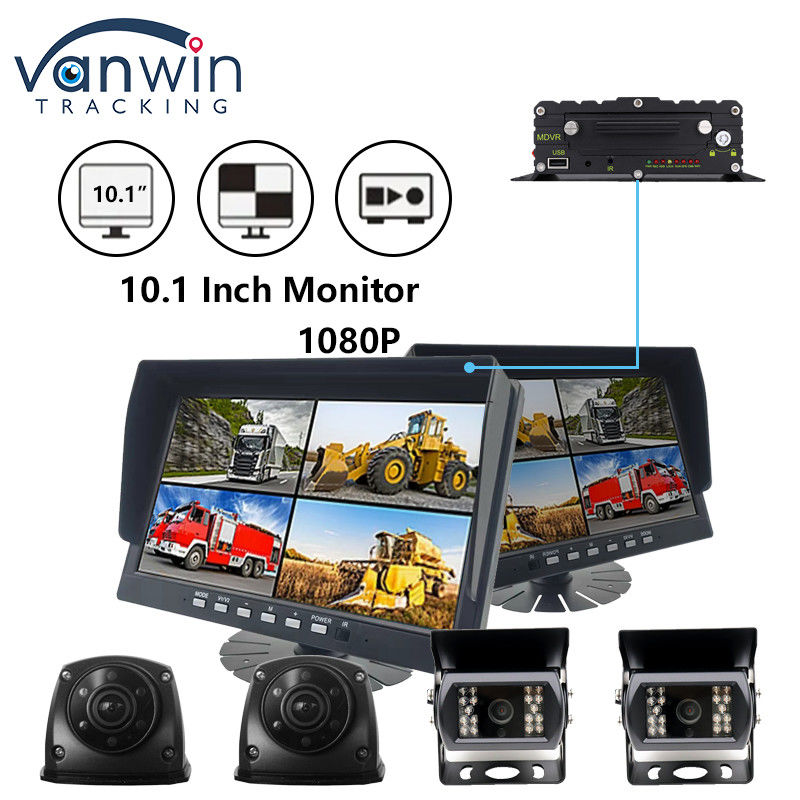

10.1 Inch IPS Security TFT Car Monitor HD 1080P Display For Truck Bus Vehicle Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-1019VGA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,00pcs per month; |
|
Detail Information |
|||
| Name: | 10.1 Inch HD 1080P Car Monitor | Warranty: | 18 Months |
|---|---|---|---|
| Screen Size: | 10.1 Inch | Resolution: | 1080P 1024*768 |
| Voltage: | ≤5.5W | Working Temperature: | -20ºC~70ºC |
| Transport Package: | Gift Box | Language: | Chinese,English,Russian,Multi-Language |
| Highlight: | Vehicle Camera TFT Car Monitor,10.1 Inch TFT Car Monitor,HD 1080P TFT Car Monitor |
||
Product Description
10.1 Inch IPS Security TFT Car Monitor HD 1080P Display For Truck Bus Vehicle Camera
Product Description
Enhance your driving experience with our high-quality TFT Car Monitor. Designed for optimal visibility and functionality, this monitor offers clear visuals and advanced features to ensure you stay informed and connected while on the road.

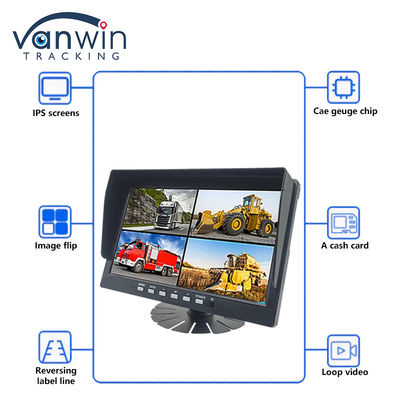

Key Features:
-
High Resolution Display: Enjoy stunning visuals with a vibrant TFT screen that delivers sharp images and bright colors, ensuring excellent visibility in various lighting conditions.
-
Wide Viewing Angle: The monitor offers a wide viewing angle, allowing passengers to see the screen clearly from different positions in the vehicle.
-
Multiple Input Support: Equipped with multiple input options, including HDMI, AV, and VGA, this monitor is compatible with various devices such as cameras, DVD players, and gaming consoles.
-
Compact Design: Its sleek and compact design makes it easy to install in any vehicle without taking up too much space.
-
User-Friendly Interface: Navigate effortlessly with an intuitive menu system, making it simple to adjust settings and switch between inputs.
-
Durable Build: Constructed with high-quality materials, the monitor is designed to withstand the rigors of daily use in a car environment.
Installation:
Easy installation instructions are included, with options for both dashboard and headrest mounting.
Specification
| Color LCD display | 10.1 inch IPS screen | |
| Resolution | 1024RGB(H) X 768(V)dot | |
| Video input | 4-channel video input | |
| Display mode | Single picture, double picture, three picture, four picture | |
| Video signal input | CVBS /960P/AHD720P /1080P | |
| Storage | External SD card (maximum support 512G) | |
| OSD menu function | Support single-channel screenFlip left and right, reversing ruler, reversing trigger, reversing delay, reversing priority, power-off memory, etc.Function Menu language: Chinese/ English (optional) | |
| Color system | PAL/NTSC (AUTO) | |
| Brightness (cd/m2) | 768 | |
| Contrast | 800:1 | |
| Surge and load dump protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms | |
| Connector socket | 18-pin S terminal | |
| Working temperature | -20ºC to +70ºC | |
| Storage temperature | -30ºC to +80ºC | |
| Working voltage | DC11-32V | |
| Seismic rating | GB/T 2423.56-2018 standard (random 5G vibration) | |
| Size | (L x W x T) (251.5 x 165x 66mm) | |
| Weight | 1140g | |

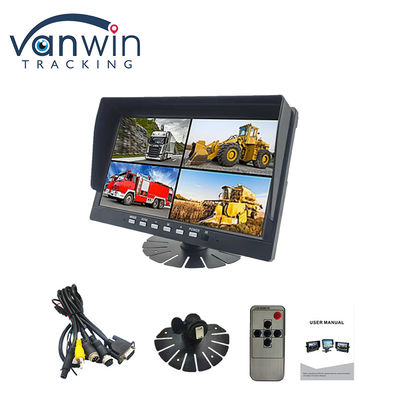

Pictures
FAQ
What are the advantages of a TFT display?
- High Resolution: Offers clear images and text.
- Wide Viewing Angles: Visible from different angles without distortion.
- Low Power Consumption: More energy-efficient than traditional displays.
- Fast Response Time: Ideal for dynamic visuals like video and navigation.
How do I install a TFT Car Monitor?
Installation typically involves:
- Choosing a mounting location.
- Connecting power wires.
- Hooking up video input sources (e.g., rear cameras).
- Securing the monitor in place.
Refer to the manual for detailed instructions or seek professional help.
Does the TFT monitor support Bluetooth or Wi-Fi?
- Many modern TFT monitors support Bluetooth and Wi-Fi for wireless music streaming, navigation, and phone calls.
How can I maintain my TFT Car Monitor?
- Regularly clean the screen with a soft cloth.
- Check that cables and connectors are intact.
- Avoid exposing the monitor to extreme temperatures or direct sunlight for extended periods.
What should I do if it malfunctions?
-
First, check the power supply and connections. If issues persist, consult the user manual or contact customer support.
Can I connect external devices?
- Yes, most TFT car monitors can connect to external devices like smartphones, USB drives, and cameras.
About US
We are professional manufacturer of 4ch/8ch mobile dvr system with monitors ,cameras.They are used for vehicle fleeting management and safety monitoring.The full system are very necessary for buses ,truck,school buses,tailer,police cars, bank money carrying cars and so on.
3G remote viewing real time monitoring function let you see what drivers and passengers are doing ,where they are with GPS tracking .
Welcome you to test.
