New Arrival AHD 4CH SD Card 1080P 9inch Quad Monitor All In One Built-in DVR For Truck Bus
Product Details:
| Place of Origin: | Shenzhen,Guandong |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-910HQ-DVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal; |
| Supply Ability: | 5000 pcs per month; New arrival AHD 4CH SD card 1080P 9inch Quad monitor all in one built-in DVR for Truck Bus |
|
Detail Information |
|||
| Power Supply: | 12V-24V DC | Video Input: | Quad/4-CH Inputs |
|---|---|---|---|
| Video Format: | H.264/MPEG-4 Format | Compatible System: | NTSC & PAL (automatically) |
| Storage: | SD Card, Max 256GB | Trigger: | 4 Trigger |
| Screen Size: | 9 Inch AHD Panel With DVR Quad Picture | Cameras: | 1~4 720P/960P/1080P AHD Cameras |
| Video Input: | 4 Channel AHD Video Input, 1/2/3/4 Image Display Adjustable | Car Make: | Universal Vehicles, Bus, Truck, Other Special Vehicles |
| Installation Method: | Standalone | Support: | OEM And ODM |
| Highlight: | 9inch Quad monitor,1080P Quad monitor,AHD Quad monitor |
||
Product Description

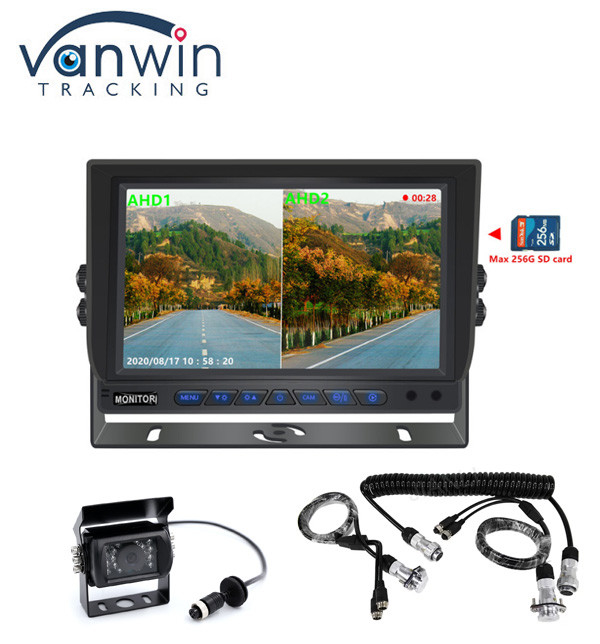

New arrival AHD 4CH SD card 1080P 9inch Quad monitor all in one built-in DVR for Truck Bus
The system can work with 1~4 Analog/720P/960P/1080P AHD cameras to monitor the front, side and back of Truck, Van, Bus, Benz Motor - home, commercial van with quad images. The resolution is very clear and It's widely used in the Truck and Van for reversing and monitoring.
HD DVR Recording surround view camera system make sure your vehicle and you will be greatly convenient and safe. Now this camera system has become a secure, affordable way of eliminating the blind zone while significantly increasing driving safety.
One of the major advantages of surround view systems is video recording of everything that happens around the vehicle. The video recording process, however, runs without interruptions due to the loop overwriting function.
|
Model
|
VW-910HQ-DVR
|
|
Screen
|
9 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED, 500cd/m2
|
|
View angle
|
L/R: 180°
UP/Down: 180° |
|
Video Input
|
4-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|
SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
DC 12V-36V input,12V output
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|
Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|
BNC and 4-pin cable for optional below
Packaging & Shipping
1. Box can be color box, white box, OEM

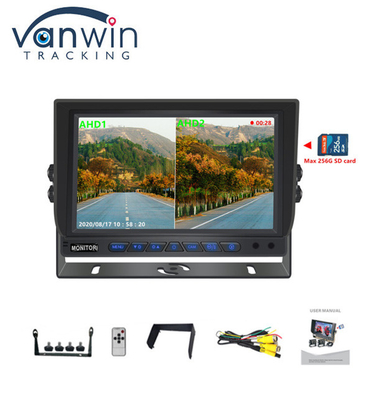

2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.
3. Goods will be shipped out within 2~7 days after the receipt of payment.
