9 Inch IPS Car Monitor Camera AHD1080p AI BSD Truck Camera System
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW906AIBSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | LED，500-650cd/㎡ | Video Input: | 4 Channel AHD Video Input,Full Images ,Support AHD720P Input |
|---|---|---|---|
| Audio Input: | Built-in Speaker，1 Way Audio Input | Video Storage: | SD High-speed Card For Video Storage, Minimum 16GB, Maximum128GB, Card Speed Not Less Than 10M/S |
| Resolution: | 1024*R.G.B*600 | Screen Size: | 10.1 Inch (5" 7" 9" Optional) |
| Power Supply: | Automobile Storage Battery (12-36V) ，12V Output | Color: | Black |
| Viewing Angle: | 160° | Format: | PAL,NTSC |
| Bracket: | Metal U Type Bracket, Detachable Sunshade | Product Name: | 9 Inch Monitor IPS Screen 1/2/3/4 Camera AHD1080p AI BSD Truck Camera System |
| Highlight: | 9 Inch IPS Car Monitor,AHD1080p IPS Car Monitor |
||
Product Description
9 inch monitor IPS screen 1/2/3/4 camera AHD1080p AI BSD truck camera system
SPECIFICATION
9 Inch AHD Quad Monitor
Resolution:1024*R.G.B*600 Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Four-channel AHD video input,Full images ,Support AHD720P input
Audio Input:Built-in speaker,1 way audio input
Four channels independently adjust the image flip in left, right, upper and lower directions
4 ways Trig Trigger priority:V2>V1>V3>V4
Video storage: SD high-speed card for video storage, minimum 16GB, maximum128GB, card speed not less than 10M/S
Video compression format:H.264 compression mode
At the same time, it supports four channels of video recording, and the video recording is stored into four independent files
Supports fast photography, supports replay previous videos and images. It supports pause, fast forward, fast backward and other operations.
Video files can be locked for protection. Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual dele
Input voltage:DC + 12-36V (For operation with a camera, the required input voltage is 13V and above)
Output voltage:+11.5V/3A
Power consumption:Normal operation status ＜ 5W (not including the display screen and the camera)
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Appearance color: black rubber paint
Butterfly bracket/fan bracket/Suction Cup holder (optional)
RCA/ 4pin connector (Optional)

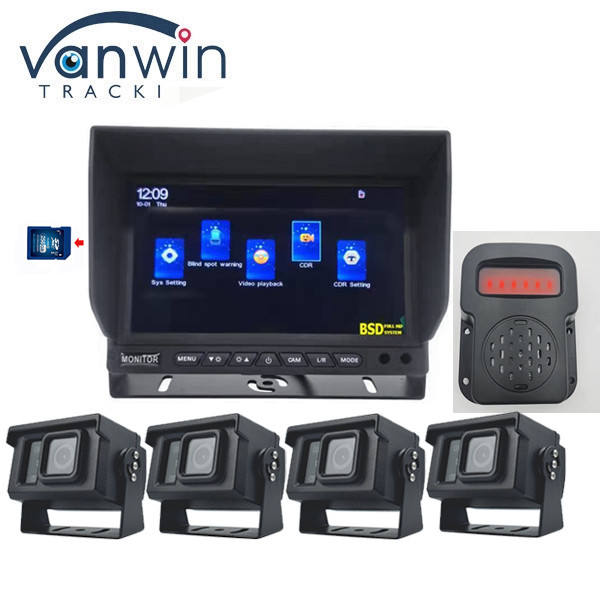

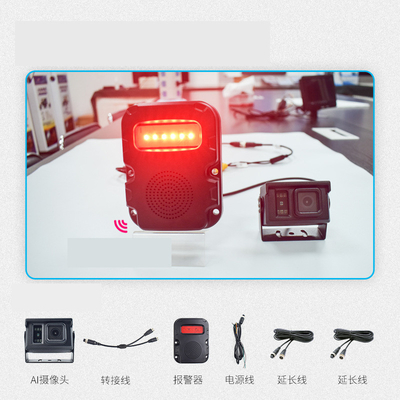

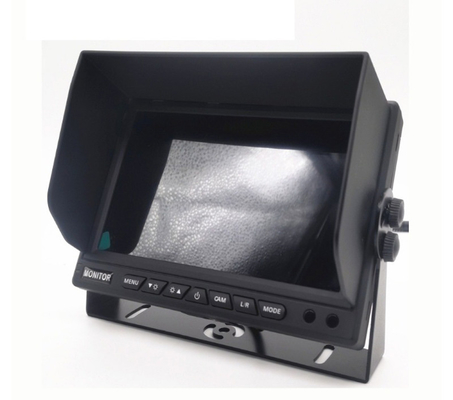

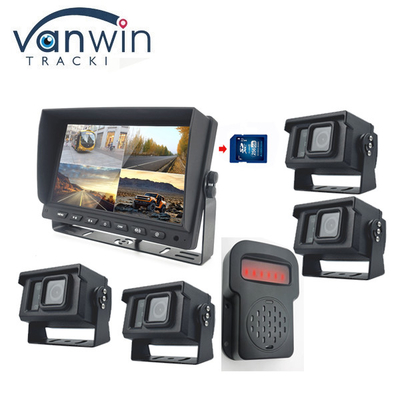

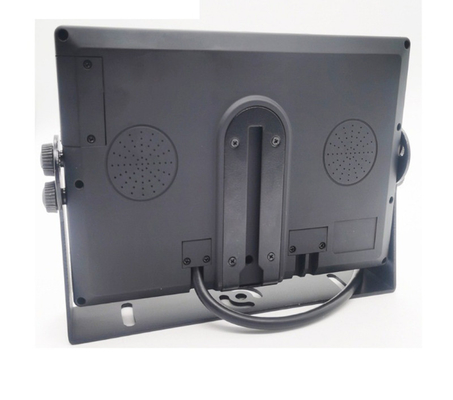

Product Photos
Product Feature
Connections
