7 Inch 2 Splits TFT Car Monitor With DVR VGA HDMI Recording System
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VM7017 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 500-650cd/㎡ | Screen Size: | 7 Inch |
|---|---|---|---|
| Power Supply: | 9-36V Input, 12V Output | Resolution: | 1024*R.G.B*600 |
| Selling Points: | All The Way HDMI Input,All The Way VGA Input， | Video Inputs: | AHD720P/960P/1080P And CVBS Multi-video Hybrid Input |
| Optional Functions: | HDMI Input/VGA Input/ DVR Recording Function | Product Name: | 7inch Car Rearview Mirror With 2 Splits With VGA/HDMI/DVR Recording |
| Highlight: | ROHS 2 Splits TFT Car Monitor,650cd TFT Car Monitor,7inch Rear View Mirror Backup Camera |
||
Product Description
7 Inch 2 Splits TFT Car Monitor With DVR VGA HDMI Recording System
7 inch 2 splits car rearview mirror monitor with DVR/VGA/HDMI recording system
SPECIFICATION
7"inch High Defintion Double Recording Dispiay
AV Resolution:1024*R.G.B*600,Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images Full images/2 images adjustable ,Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Automatically switch to V2 when reversing,Reverse reference point
TWO channels independently adjust the image flip in left, right, upper and lower directions
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
All the way HDMI input(optional)
All the way VGA input( optional)
Supports fast photography,Supports replay previous videos and images. It supports pause, fast forward, fast backward and other operations.
Video files can be locked for protection. Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual deletion
Video storage:SD high-speed card, maximum support256G
Video compression format:H.264 compression mode
Power supply: Power supply: DC 9V-36V input,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
RCA/ 4pin connector (Optional)
Dimension:220*107.2*15(33)mm

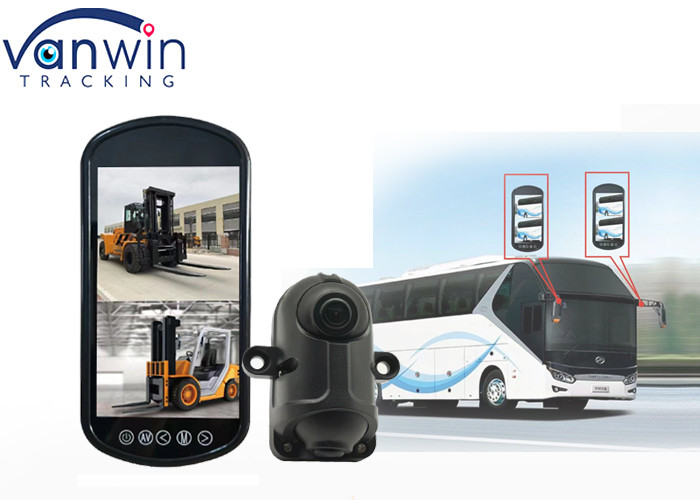

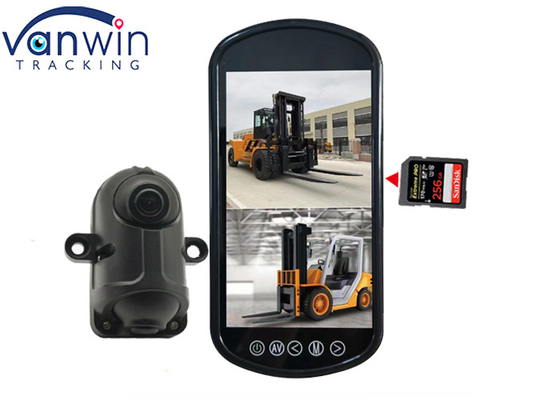

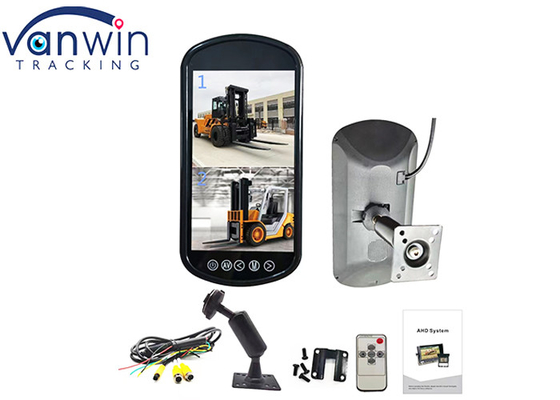

PRODUCT PHOTO
CABLE SPECIFICATION
INSTALLATION POSITION
