Wireless 4CH 4G GPS Video Recorder Temperature Monitoring For Refrigerated Vehicles
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9024T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name:: | Wireless 4CH 4G GPS Video Recorder Temperature Monitoring For Refrigerated Vehicles | MDVR Feature: | 4CH HDD SSD SD MDVR With 4G 5G WIFI GPS |
|---|---|---|---|
| Applicable: | Freezer Trucks | Functions: | Temperature&humitidy Monitoring, Live Video Streaming, GPS Tracking, Wifi Autodownloading, Tire Pressure Monitoring&alarm, Video Recording, Alarm |
| Storage Media: | Max 2TB+512GB | Software: | CMSV6 |
| Working Temperature: | -20~60ºC | Power: | 8-36V |
| Highlight: | Wireless 4G GPS Video recorder,Refrigerated Vehicles GPS Video recorder,4CH 4G GPS Video recorder |
||
Product Description
Wireless 4CH 4G GPS Video recorder Temperature Monitoring For Refrigerated Vehicles
9024T is a multi-functional HDD Video Recorder (MDVR) with high accurate temperature sensor and HD Video cameras.When it is installed in cold chain refrigerated trucks, which can be as a perfect Video& temperature monitoring solution!
The refrigerated Truck temperature monitoring MDVR device supports 4G 5G wireless network, GPS tracking, WIFI, RS232 485, alarm, AI(DSM, ADAS, BSD) etc features.
It use the 4G/5G wireless network to send Video+GPS +temperature information to server and end users on their phone/PC by realtime.That means you can know everything (temperature, humidity, video, GPS location, alarm)happened in the trucks where the device coverage in.
MDVR Features:
1. H.264/H.265 hard compression mode, supporting 4/8 real-time 1080P, D1720P, 1080P high-definition adaptive input; Multiple modes can be mixed and combined in any way.
2. 4CH expandable 4AHD+4IPC; 8CH expandable 8AHD+4IPC;
3. 2 video outputs (1 CVBS video AV output, 1 VGA output);
4. Advanced bare disk+pre partitioned storage technology solves the problem of easy damage caused by uneven disk writing, the problem of file fragmentation caused by repeated erasing, the problem of data loss caused by storage file system crashes, inability to find storage, and file garbled characters, and the problem of data loss caused by time lapse, ensuring data integrity and effectiveness. The data is stored in a dedicated manner to solve the problem of data confidentiality;
5. 12V-36V adaptive wide voltage input, ultra-low power consumption design;
6. Support UPS technology, the machine can work for 5-10 seconds in case of abnormal power outage, ensuring that data is not damaged and in case of emergencies, the entire event process can be saved in a timely manner;
7. SD card+hard drive storage: SD card supports up to 512GB, hard drive supports mechanical or solid-state drives, and supports up to 4TB.
8. Support multiple storage strategies such as multi disk circular storage, backup storage for disk loss, and small stream image storage; SD card can be used as a mirror for recording, recording together with the hard drive to achieve dual recording, ensuring the integrity of the recording and ensuring foolproof performance.
9. Support USB interface, backup data, and device upgrade;
10. Support GPS/BD/G-Sensor module expansion; Remote monitoring (real-time video, monitoring, intercom, broadcasting, video query, playback, download) can be achieved through 3G/4G/5G/WIFI;
11. Support JT808 and JT1078 standard protocols; Support remote configuration/control of devices;
12. Support pan tilt control; Support text scheduling and distribution function;
13. Expandable fuel level sensor, temperature sensor, card reader, LED advertising screen, OBD, etc;
14. Support remote monitoring and management through mobile phones; Support multi screen display mode.
15. High reliability aviation head connector, cost-effective, stable and reliable.
16. Can add extensions: fatigue driving warning DSM+road driving warning ADAS+blind spot warning BSD function
Thermostat Temperature Feature:
1. With USB/wifi communication interface.
2. Supports both active reporting and acquisition communication methods.
3. Support TCP Server, TCP Client.
4. LCD large screen display design, generous and beautiful.
5. Switchable Celsius Fahrenheit, worldwide.
6. 50,000 sets of large-capacity data storage.
7. Wall-mounted ceiling structure design, easy to install.
8. Superior stability and anti-interference capability.
9. Uses high-capacity 18650 batteries that are rechargeable and replaceable.
10. Battery anti-reverse connection, battery installed backwards will not burn the machine.
11. Imported high-precision probe, high measurement accuracy, wide range, good consistency.
12. Remote real-time monitoring of the battery level, all meters power at a glance.
13. Various power supply methods, support battery power, terminal power, USB port power.
14. Ultra-low power design, up to one month on a single battery (active reporting at 5-minute intervals).
15. Offline recording function, monitor and record data normally when power off and offline, and report to the monitoring platform automatically when online.
16. Low power working mode, when the battery power is low normal working voltage, it will enter the dormant mode, and the data can still be recorded normally.

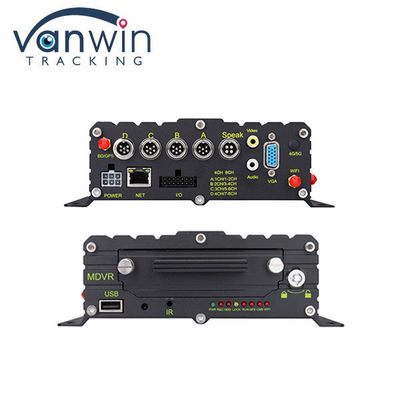

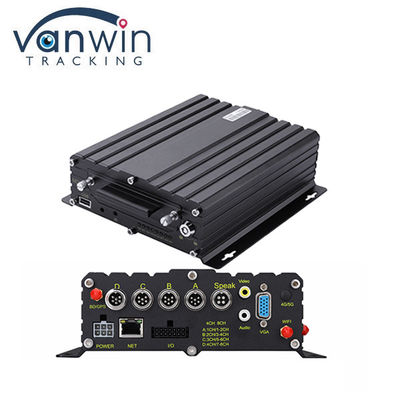

MDVR&Tirepressure sensor Photos
Screenshots
