1080P AHD 4G 5G Dual SD AI MDVR GPS vehicle tracking cctv system
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9304 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Video Compression: | H. 264 / H.265 | Storage: | Dual SD Card, Max 512GB |
|---|---|---|---|
| Resolution: | Support 1080P/720P/D1/CIF | Product Name: | 1080P AHD 4G 5G Dual SD AI MDVR GPS Vehicle Tracking Cctv System |
| Warranty: | 18 Months | Type: | Dual SD Card Mobile DVR |
| Video Input: | 4 Channels AHD 1080P Video | Power Input: | DC 8V~36V |
| GPS 4G 5G WIFI: | Optional | Language: | English/Chinese/Russian |
| Alarm Input: | 4CH Alarm Inputs | Channel: | 4CH Or 8CH |
| AI Feature: | DSM ADAS BSD | Applicable Vehicles Type: | Concrete Mixers, Blenders, Cement Mixers |
| Highlight: | 5G vehicle tracking cctv system,1080P vehicle tracking cctv system,4G vehicle tracking cctv system |
||
Product Description
1080P AHD 4G 5G Dual SD AI MDVR GPS vehicle tracking cctv system
Product Parameter
| Item | specification | |||
| OS | Linux | |||
| Language | Chinese/English/Russian/Others (can be customized) | |||
| Video Compression | H.265 H.264 | |||
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation | ||
| Video Record System | Video Input | 4CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |||
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |||
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |||
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |||
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |||
| Audio | Audio Input | 4 or 8 channel aviation Plug | ||
| Audio Output | 1channel | |||
| Compression | G.711A compression, 8KB/s speed | |||
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |||
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |||
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |||
| 1CH 485 interface, can connect PTZ,etc. | ||||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |||
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |||
| SD card | SD card | Support Two SD cards ,a maximum of 512G for a single card, can support simultaneous video streaming to ensure data security | ||
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |||
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |||
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |||
| Video Playback | Video Search | Search video by Record Time/Record Mode etc | ||
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |||
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; | ||
| Voltage Input | DC:+12V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Safety Management | Password Access | Two level management of user password and administrator password | ||
| others | Size | 15CM (D)* 14.7CM(W)* 4CM(H) | ||
| Net Weight | 0.7 Kg | |||

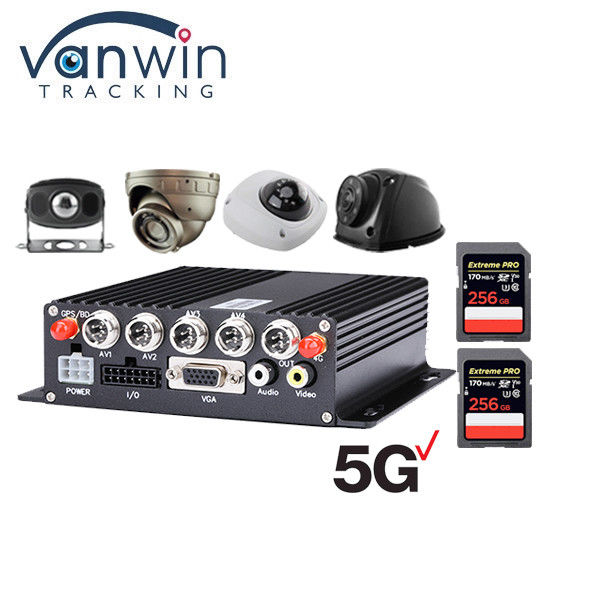

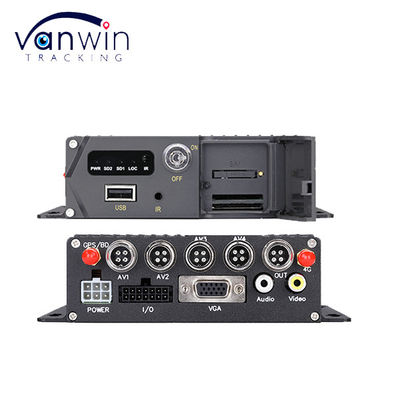

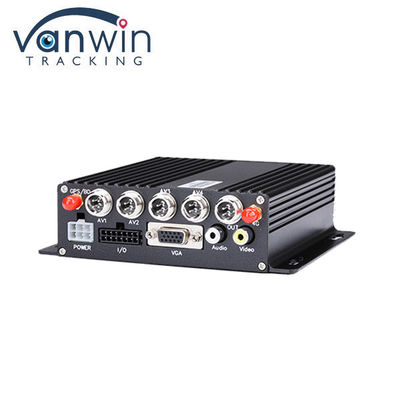

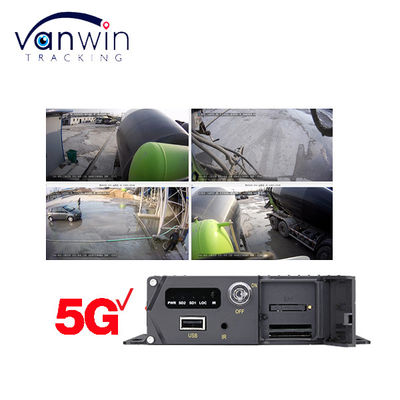

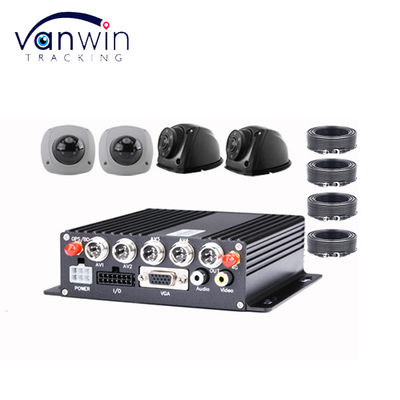

Product Photos
Platform Sceenshot
