1080P GPS Tracking 3G 4G WIFI Full AHD 4 8 12 Channels solid state mobile dvr
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month, 4 Channel Wifi 3G AHD 1080P Mobile DVR with GPS for Bus Car and Truck / MDVR |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Storage Capacity: | Dual SD Cards, Max 256GB*2 |
|---|---|---|---|
| Basic Function: | 4G GPS WIFI I/O RS232 485 | Software Support: | Client,server,playback Software,BS Platform, App For Phone |
| Applicable: | Freezer Trucks, Refrigerated Trucks | Customized Functions: | Support |
| Warranty: | 12 Months | OEM / ODM: | Support |
| H.264 Compression: | Yes | ||
| Highlight: | Truck GPS Tracking Mobile Dvr,Car GPS Tracking Mobile Dvr,4 Channels GPS Tracking Mobile Dvr |
||
Product Description
1080P GPS Tracking 3G 4G WIFI Full AHD 4 8 12 Channels solid state mobile dvr
Main Features
1. Industrial-grade design with super mini size
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. Support 2 SD cards up to 256G for record storage
4. 4G / WIFI transmit; multiple grade image quality transmitting option
5. GPS / BD / GLONASS global positioning
6. Powerful software platform including remote live, playback, broadcast, talk and more
7. IP communication
8. PTT group talk function

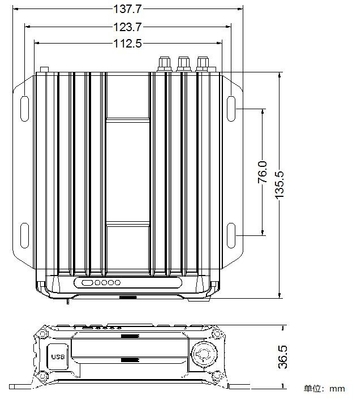

Specifications

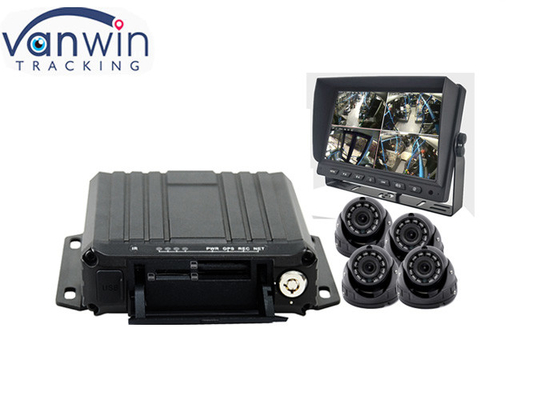

Product photos

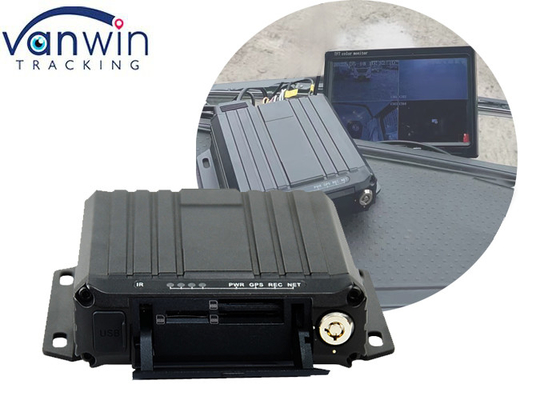

Application
FAQ
1. Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2. Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

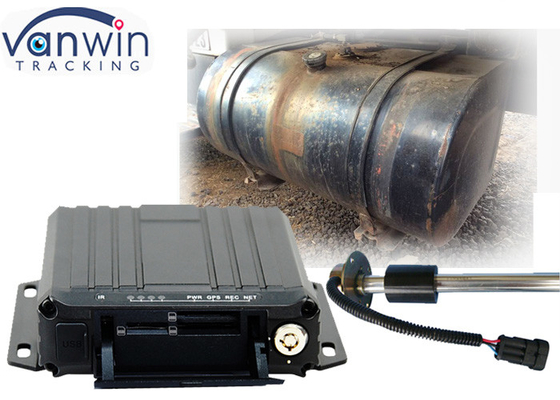

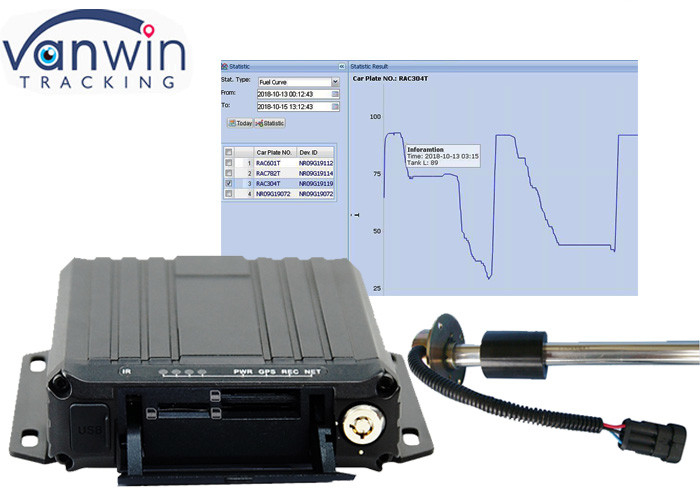

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
