2 Door Bus Passenger Counting System 4G GPS Binocular Passengers Flowing Counting People Counter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW608C-4G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | Intelligence Two Door Bus People Counter | Function: | People Counter Sensor |
|---|---|---|---|
| Accuracy: | 98% Up | Power Supply: | DC 8V - DC 32V |
| Installation: | Vehicle Door | People Counting Cameras: | Front And Back Cameras |
| Original Factory: | YES,welcome OEM ODM | Applicable: | School Bus Or Bus Or Any Vehicle |
| Highlight: | Binocular Bus Passenger Counting System,Passengers Flowing Counting People Counter,4G GPS Bus Passenger Counting System |
||
Product Description
Bus People Counter System Description
2 Door Bus Passenger Counting System 4G GPS Binocular Passengers Flowing Counting People Counter
The Bus People Counter System is an advanced, real-time passenger monitoring solution designed to enhance the efficiency, safety, and management of public transportation systems. This innovative system utilizes cutting-edge sensor technology and AI-powered algorithms to accurately count the number of passengers boarding and alighting from buses, providing valuable data for fleet operators, transit authorities, and urban planners.
2 Door Bus Passenger Counting System Key Features:
Accurate Passenger Counting:
-
Utilizes high-precision sensors (e.g., infrared, 3D stereo vision, or thermal imaging) to ensure accurate counting of passengers in real-time, even in crowded conditions.
-
Distinguishes between boarding and alighting passengers to provide precise occupancy data.
Real-Time Monitoring:
-
Offers live updates on passenger counts, enabling operators to monitor bus occupancy levels remotely.
-
Alerts for overcrowding to ensure compliance with safety regulations and passenger comfort.
Data Analytics and Reporting:
-
Generates detailed reports on passenger flow, peak hours, and route utilization to optimize scheduling and resource allocation.
-
Integrates with existing fleet management systems for seamless data sharing and analysis.
Easy Installation and Integration:
-
Compact and non-intrusive design for easy installation on buses without disrupting operations.
-
Compatible with various bus models and existing IoT platforms.
Enhanced Safety and Efficiency:
-
Helps prevent overloading, ensuring compliance with capacity limits.
-
Improves operational efficiency by identifying high-demand routes and optimizing bus frequencies.
Cost-Effective Solution:
-
Reduces operational costs by providing data-driven insights for better decision-making.
-
Minimizes manual counting efforts and human errors.
Scalable and Customizable:
-
Suitable for small fleets or large-scale public transportation networks.
-
Customizable features to meet specific operational needs.
People Counter Camera Specifications
| Item | Description | |
| OS | Linux3.18 | |
| Operating | PC client, Remote controller | |
| Functions Summary | Preview, recording, playback,passenger-counting ,network transmission, positioning, AI analysis, multiple sensor data acquisition. | |
| Video and Preview | Video Input, Output,Signal standard | AHD input:8ch 1080p/15fps,8ch 720p/30fps,8ch D1/30fps,4ch 1080p/30fps. IPC input:1ch default, externally expandable 1-4ch,support POE; Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
| OSD | Character superposition function, information superposition of time and date, device ID ,passemger-counting information and GPS, alarm,etc. | |
| Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. | |
| Image quality | Code stream, frame rate optional | |
| Preview | 1/4/6/8/9 channel preview | |
| Resolution |
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M D1:30fps/512K/1M/2M IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M |
|
| Audio | Audio Input, Output | 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ |
| Compression Format | G.711A, G.726 | |
| Recording | Storage Medium | Supporting one 2.5” SATA hard drive and one SD card |
| Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Alarm pre-recording | 0-60min | |
| Alarm recording delay | 0-30min | |
| Playback channel | Support local 1/4/6/8 channel playback | |
| Browse mode | Time, channel, event. | |
| Communication Ports | RS232, RS485 | |
| ADAS | Built-in (Optional) | |
| Wireless Transmission |
3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect. Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M) |
|
| Position | GPS/BD: Positioning, speed detection, time synchronization | |
| Power Supply and Power Consumption | Power Supply | 1ACC on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@1A; +5V@1A | |
| Power Consumption | Max 25W consumption, about 0W in standby mode | |
| Operating Environment | Temperature | preheating: -20℃ ~ +70℃ |
| Humidity | 8% to 90% | |
| Dimensions | 324.6x238x116 mm. | |
| Weight | Net: 2KG | |
Applications:
- Public transportation systems (buses, shuttles, trams).
-
School buses and private transit services.
-
Event transportation and crowd management.

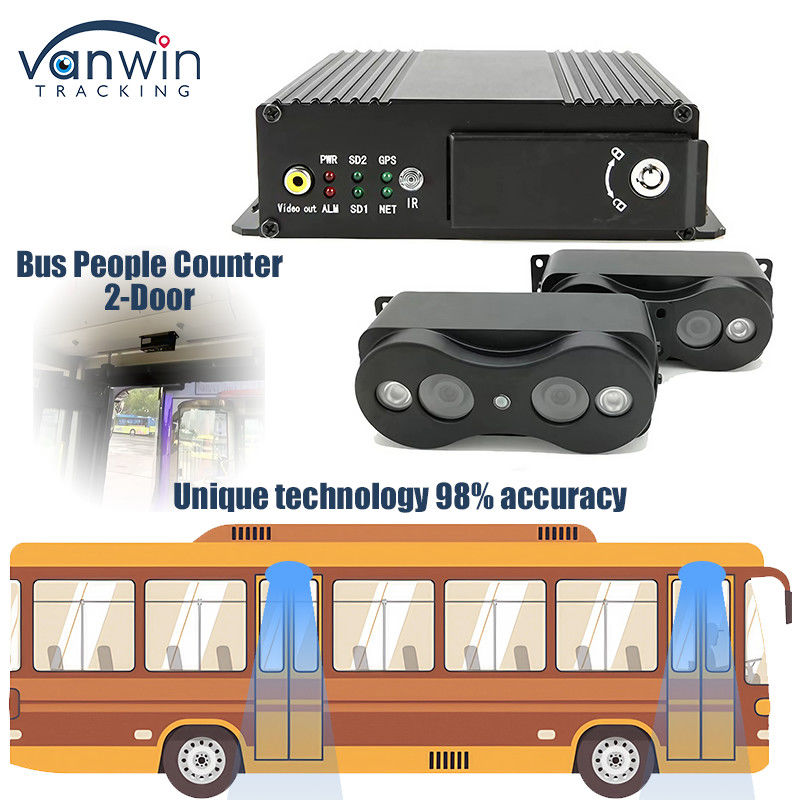

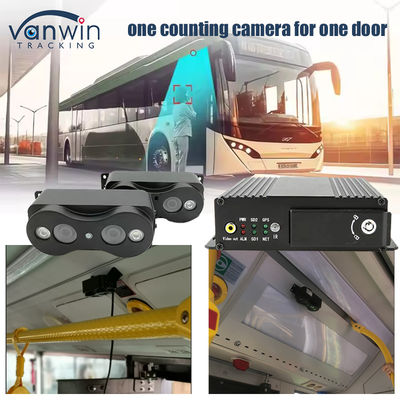

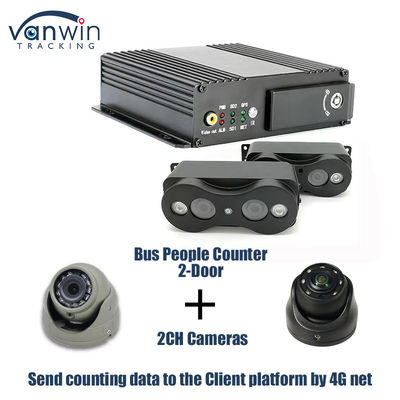

People Counter Mobile DVR Photos
About Us
FAQ
Q1.How does the system work?
The system uses sensors such as infrared, 3D stereo vision, or thermal imaging to detect and count passengers as they enter or exit the bus. The data is processed in real-time and transmitted to a central management system for monitoring and analysis.
Q2.Is the system accurate in crowded conditions?
Yes, the system is designed to handle high passenger volumes and crowded conditions. Advanced algorithms ensure accurate counting even during peak hours or in dense environments.
Q3.Can the system distinguish between boarding and alighting passengers?
Yes, the system is capable of differentiating between passengers boarding and alighting, providing precise data on passenger flow.
Q4.How is the data used?
The data collected by the system can be used for:
- Monitoring bus occupancy in real-time.
- Optimizing bus schedules and routes.
- Generating reports on passenger trends and peak hours.
- Ensuring compliance with safety regulations.
Q5.Is the system easy to install?
Yes, the system is designed for easy installation on various bus models. It is compact, non-intrusive, and can be integrated with existing fleet management systems.
Q6.Can the system integrate with other transportation management systems?
Yes, the Bus People Counter System is compatible with most IoT platforms and fleet management systems, allowing seamless data sharing and integration.
