8ch 4G Wireless Live Video Streaming Automatic People Counter For Bus
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9208C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD1000 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Material: | Aluminum Alloy | System: | Linux |
|---|---|---|---|
| Product Name: | 3D Automatic People Counter For Bus | Functions: | Counting, Live Video Streaming, GPS Tracking&locating, Reports For Fuel Level Aram Etc |
| Storage: | Harddisk And SD Card | Video Inputs: | 4 CH AHD Video Inputs+4CH Counting Video Inputs |
| Snapshot: | Support | ||
| Highlight: | Live Video Streaming Automatic People Counter,Wireless Automatic People Counter,Wireless Passenger Counter For Buses |
||
Product Description
8ch 4G Wireless Live Video Streaming 3D Automatic People Counter For Bus
Product Introduction:
This high-end product is the first of its kind in China's public transportation equipment market. It is used to count the number of passengers on the bus, as well as providing accurate statistics through GPS communication with central management systems. It can also record video in real time with 4 channels and send them to an off-site server via WIFI/4G network. With these functions it can provide a scientific basis for resource allocation for public transportation vehicles
Product Functions:
a) Passenger-Counting
a1 Each camera can count two directions of entering and leaving at the same time
a2 Distinguish front and brack door
b) Turn on/off
b1 Support ACC ignition power on, regular power on, trigger boot, remote boot.
b2 Support ACC delay shutdown, timed shutdown, trigger shutdown, remote shutdown.
c) Local monitoring function
c1 Support local output 1/2/4/5/8 screen live preview, trigger single channel screen preview by alarm.
c2 Support motion detection, video loss, video power short detection detection.
c3 Support local audio and video playback, support fast forward and rewind function.
d) Local audio and video recording storage
d1 Support a 2.5" SATA hard drive and a SD card.
d2 The file format is compatible with Windows systems and uses hard disk space pre-segmentation.
e) Data backup
e1 Support USB data export backup.
e2 Support bare disk pull out data backup.
e3 Support remote platform data download backup
f) Extension
f1 Local support for RS485, support for a variety of peripheral sensor access.
f2 Local support for RS232, support for a variety of peripheral sensor access.
f3 Support for external serial port expansion boxes.
g) Remote monitoring function
g1 Support 10M/100M adaptive network interface.
g2 Support three types of 3G systems: WCDMA, EVDO, and TD-SCDMA, and twoT types of 4G system D-LTE and FDD-LTE.
g3 Support WIFI function, 2.4/5.8G optional.
g4 Support VMS, CMSV6 platform, provide SDK, and access more platforms.
g5 Supports protocols such as DHCP, DNS, NTP, and SADP.
g6 Support remote preview and video recording.
g7 Support remote video and audio playback.
g8 Support WIFI automatic download.
g9 Support remote intercom between platform and device.
g10 Supports PTT calls between devices and devices.
g11 Support remote acquisition and configuration parameters, support remote export and import of device parameters.
g12 Support remote access to device operating status, system log and alarm status.
g13 Support remotely format hard disk, upgrade program, restart and other system maintenance operations.
g14 Support remote search, playback and download.
g15 Support RS-232 remote transmission.

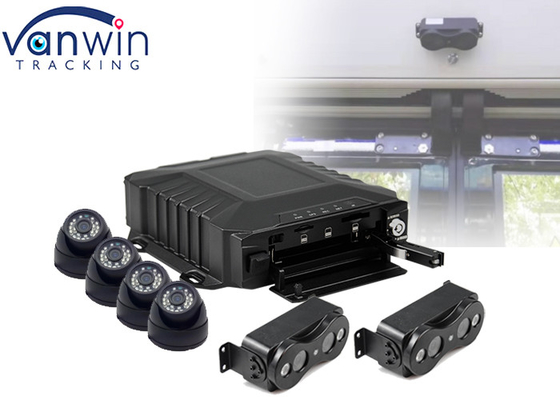

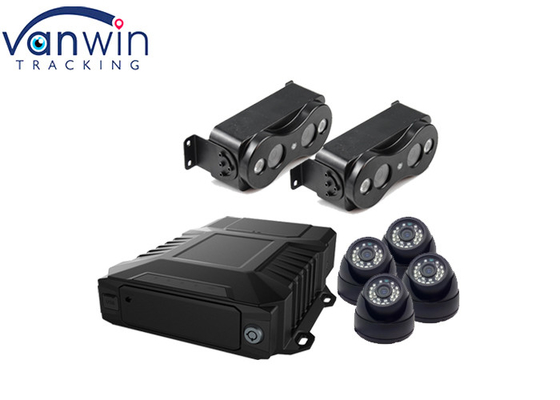

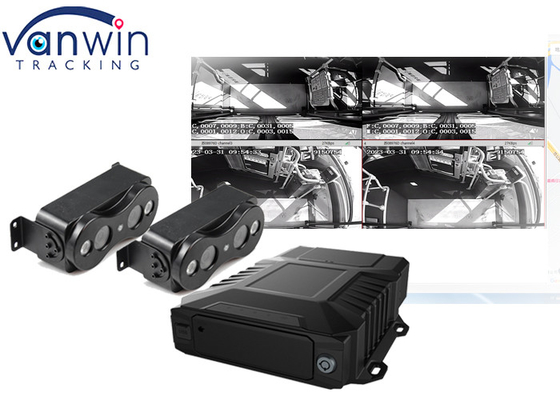

Product photos:

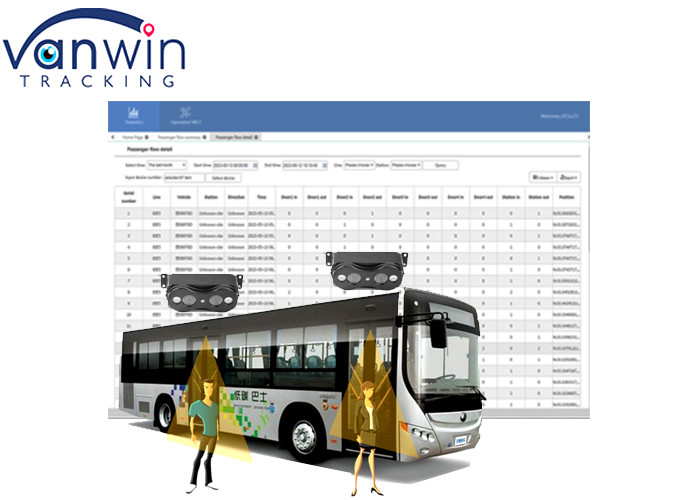

Application
