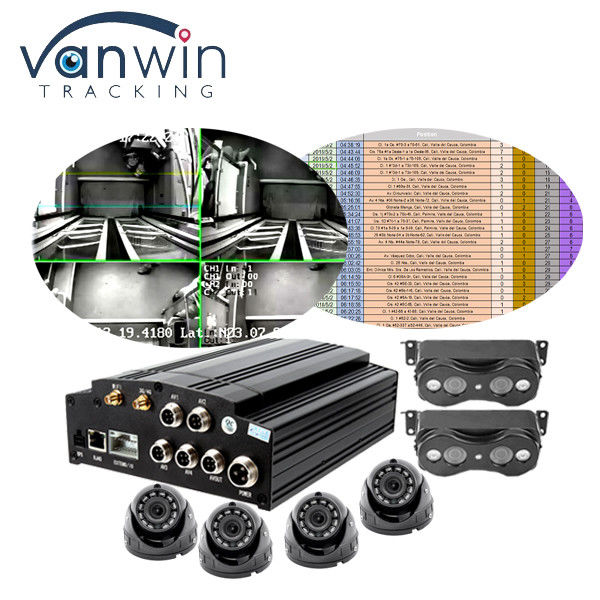

8CH 1080P Passenger Counter MDVR For 2 Door Bus , High Accuracy Bus Passenger Counting System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW902C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; TCP/IP server Wireless 3G 4G WIFI dialing bus people counter MDVR system with 4ch video recording |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Sensor Type: | Video Counting, 98% Accuracy |
|---|---|---|---|
| Level: | World Class Anti-vibration Technology | Operation Interface: | OSD With Mouse And Remote Control |
| Scanning Style: | Video Counting | Data Transmission: | 3g,4G,, GPS, Wifi ,gprs, Rs232/485, HDD Storage |
| Camera: | Binocular Cameras&Monitoring Cameras | Network: | 3G/4G/WIFI |
| USB Port: | Standard 2.0 | City Bus: | Support 1/2/3/4 City Buses |
| System: | Linux | RS232/RS485: | Supported |
| The Third-party Platform: | Supported | Protocol: | Yes |
| Highlight: | 1080P Passenger Counter MDVR,high accuracy bus passenger counting system,8CH Passenger Counter MDVR |
||
Product Description

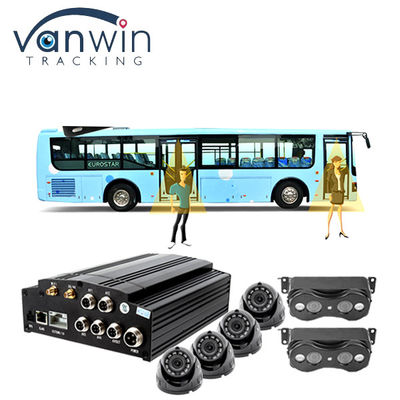

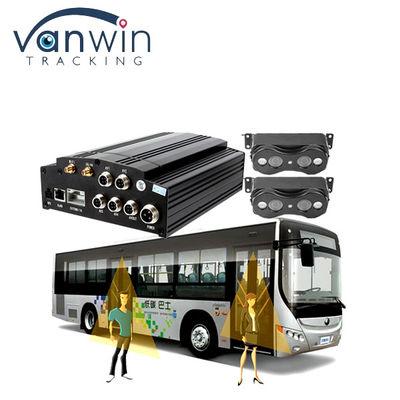

8CH 1080P Passenger Counter MDVR With 2 People Counter For 2 Door Bus high accuracy bus passenger counting system
Main Fetaures:
*RS232/485
*GPS location and tracking
*Bus people on/off counting.
*Support 3G/4G video&data transmission(TCP IP Transfer Mode)
*Support WIFI auto downloading
*Report of the counting stored in HDD storage and server.
*Ability to determine passenger movement direction.
*The possibility of simultaneous detection of two people passing in
*Possible integration with 3rd party device or ticketing system
*The case is made in accordance with IP54 standard, which enables the device resistance to moisture and dust.
*Customer can customize their applications flexibly. *Vanwin can provide development documentation.
Obtaining passenger data(Latitude and longitude of station, date and time, counter) from RS232/485 port
*Support MDVR 4ch 720P AHD recording function
|
System |
OOS |
Linux3.0 |
|
|
CPU |
TMS320DM6446 |
|
|
Operating Interface |
OSD with mouse and remote control |
|
|
Security |
2-level management for user password, administrator password, supporting encrypted transmission |
|
Gate Control |
Door Sensor |
High/low electric level trigger |
|
|
GPS speed |
Threshhold 8KM/H |
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
|
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. |
|
|
Dual-Stream |
Supported |
|
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
|
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
|
Resolution |
AHD 720P,D1, HD1 ,CIF 4channel |
|
|
Quality |
Grade 1 to grade 8 for selection (1 is the best) |
|
|
Bit Rate |
CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection 720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection |
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
|
Compression Format |
G.726 coding |
|
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
|
|
File Format/ System |
Special file system |
|
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
|
Video Search |
Searching by time, type, storage device and other conditions |
|
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
|
|
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
|
Alarm |
Counter Shelter Alarm |
Alarm alert sent to platform, stored in Harddisk and saved in server when camera is sheltered |
|
|
Alarm Input/ Output |
8-channel on/off signal alarm input, 2-channel on/off signal alarm output |
|
|
Alarm Recording |
duration of recording after alarm can be adjusted from 10s ~ 999S |
|
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
|
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
|
Network |
Wireless Transmission (Optional) |
Supporting 4G/Wi-Fi |
|
Locating |
GPS (Optional) |
Supporting external GPS |
|
Interface |
PTZ Control |
Supporting PTZ control realized by local; |
|
|
Standard Interface |
Supporting 1 RS232 ports ,1 RS485 port |
|
|
External Antenna |
Antenna interface with embedded GPS |
|
|
Standard Interface |
Standard RJ45 interface, with indicator. |
|
|
Standard Interface |
Compatible with commerciall avaiblable brands. |
|
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
|
|
G-Sensor |
Embedded |
|
|
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
|
I/O Interface |
0 ~ 2V |
Low-level alarm. |
|
|
Above 5V |
Hi-level alarm. |
|
Vehicle Key Signal |
≤6V |
Vehicle key off. |
|
|
≥7.5V |
Vehicle key on. |
|
Video Input Impedance |
75Ω |
Impedance of 75Ω for each channel of video. |
|
Video Output |
1Vp-p |
Outputting a 1Vp-p CVBS analog signal. |
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
|
Input Voltage |
DC:+9V ~ +36V. The device will be automatically turned off and enter the protection mode if the voltage is lower than 8V for a long time; if the voltage is higher than 36V for a long time, the voltage protection device will block the power supply. |
|
|
Output Voltage |
+12V@5*0.5A; |
|
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
|
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
|
Humidity |
10% to 95% |
|
Package |
Dimension |
160(W) x62(H) x200(D) mm. |
|
|
Weight |
Net: 3500g, Gross: 5000g |
Application:
