4g GPS Video Bus Passenger Counter , Vehicle People Counting Machine System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW902C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; TCP/IP server Wireless 3G 4G WIFI dialing bus people counter MDVR system with 4ch video recording |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Sensor Type: | Video Counting, 98% Accuracy |
|---|---|---|---|
| Level: | World Class Anti-vibration Technology | Operation Interface: | OSD With Mouse And Remote Control |
| Scanning Style: | Video Counting | Data Transmission: | 3g,4G,, GPS, Wifi ,gprs, Rs232/485, HDD Storage |
| Camera: | Binocular Cameras&Monitoring Cameras | Network: | 3G/4G/WIFI |
| USB Port: | Standard 2.0 | City Bus: | Support 1/2/3/4 City Buses |
| System: | Linux | RS232/RS485: | Supported |
| The Third-party Platform: | Supported | Protocol: | Yes |
| Highlight: | Bus Passenger Counting Sensor,Vehicle People Counting Machine System,4g GPS Video Bus Passenger Counter |
||
Product Description

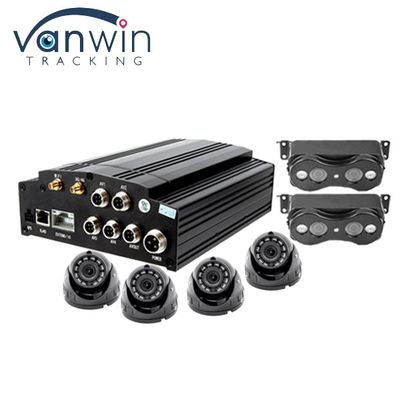

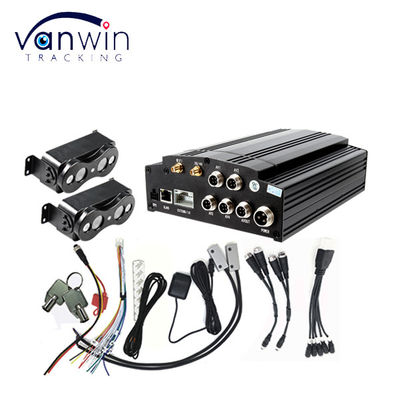

4CH 4G bus people counter MDVR system for bus fleet management

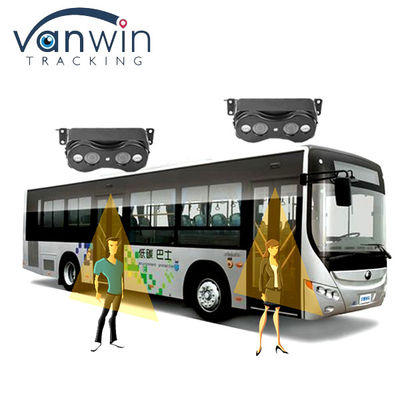

The Vieo- Counting Bus People Counter(VPC) with binocular lens is developed based on advanced Video Counting&image analysis technoloy.
It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
It can automatically filter backpack, luggage etc.
Main Features:

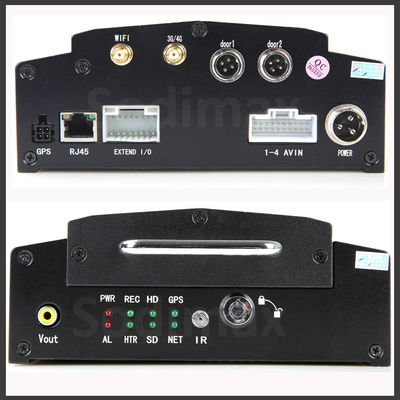

*RS232/485

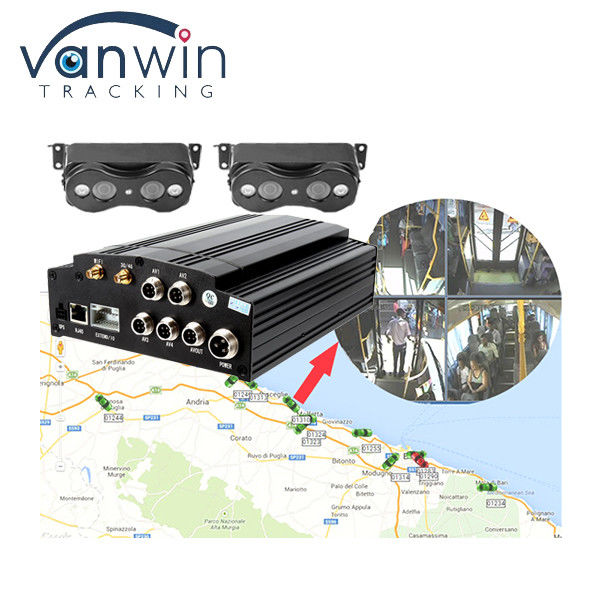

*GPS location and tracking
*Bus people on/off counting.
*Support 3G/4G video&data transmission(TCP IP Transfer Mode)
*Support WIFI auto downloading
*Report of the counting stored in HDD storage and server.
*Ability to determine passenger movement direction.
*The possibility of simultaneous detection of two people passing in
*Possible integration with 3rd party device or ticketing system
*The case is made in accordance with IP54 standard, which enables the device resistance to moisture and dust.
*Customer can customize their applications flexibly. *Vanwin can provide development documentation.
Obtaining passenger data(Latitude and longitude of station, date and time, counter) from RS232/485 port
*Support MDVR 4ch 720P AHD recording function
Application:
