4G Car Mounted SD Card Recording All-In-One Machine With 4-Channel Monitoring And GPS Positioning
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | VW204HD |
| Model Number: | CE/FCC/RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | 4k Touch Screen Car Dvr Kit | Resolution: | 1080X720P |
|---|---|---|---|
| Cameras: | Analog / AHD 720P / 960 | SDK: | Free SDK For Second Development |
| Compression: | H.265 | Video In: | 1.3mp AHD Video Input, 1.0Vp-p, 75Ω |
| Preview: | 4 Screen, Full Screen, Shift To Alarm Channel | Input: | DC:+10V - +36V |
| Output: | +12V@1.5A | Power Management: | Adaptive Wide-width Power Input, With Overload, Under-voltage, Short-circuit, Reverse Connection And Other Protection Functions, Support Delayed Shutdown Function. |
| Highlight: | 4G Car Mounted Recording Machine,SD Card Recording All-In-One Machine |
||
Product Description

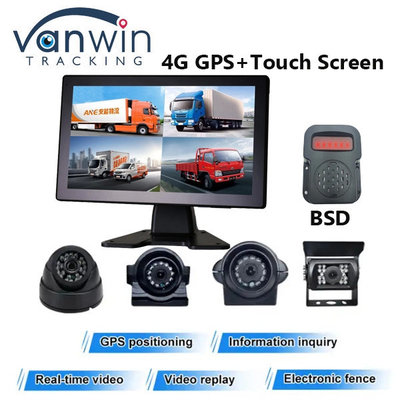

4G Car Mounted SD Card Recording All-In-One Machine With 4-Channel Monitoring And GPS Positioning
4G car recorder Main advantages
H265 compression mode, full four channel real 720P high-definition real-time storage, P format 25 full frames, N format 30 full frames
Default 4G full network 7-mode, Beidou GPS, single TF card storage.
◆ Supports 960P/720AHD million high-definition real-time storage
◆ Can connect, 2 million, 1.3 million, 1 million, coaxial 4-channel AHD high-definition cameras
◆ Equipped with VGA high-definition signal
◆ 9V-36V wide voltage input, low power automatic shutdown, with screen off protection function
Intelligent power management, low power consumption when turned off, instant withstand voltage of 120V

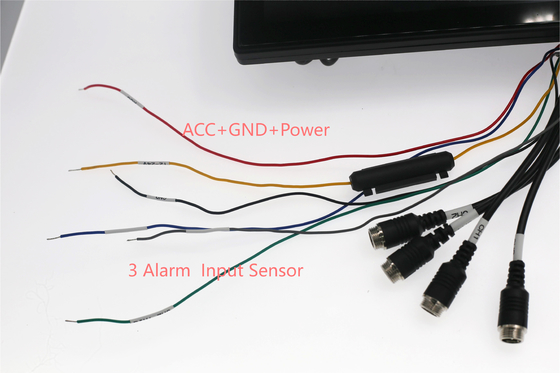

◆ 3-channel alarm input (left, right, reverse multiple types can be configured)
◆ TF card storage (each card supports a maximum of 128GB TF card)
◆ It can completely resist data damage caused by vibrations, dust, and other factors in the car;
AHD high-definition, video horizontal and vertical mirror adjustment
◆ Integrated machine, easy and convenient to install
The source of the solution is factory direct sales, using 11 years of Hisilicon split monitoring product design concept to produce
Each device can set its own startup logo and logo in the upper right corner
Integrated car recorderProduct specifications
| project | Parameters | |
| operating system | Linux | |
| System voice | Chinese, other (customizable) | |
| Video compression format | H. 265 compression mode | |
| OSD | Character overlay function, supporting image overlay of information such as time, date, vehicle ID, etc | |
| GUI | Graphical OSD interface | Connect to RGB screen and set various system parameters through touch |
| Video and recording | Video input | 4-channel 1080P/720P AHD high-definition video input, aviation head interface, 1.0Vp-p, 75 Ω |
| Preview function | Single channel, 4-screen splicing preview, supports event triggering, single channel full screen display function | |
| Video resolution | Supports 720P video recording resolution | |
| Video recording speed |
PAL: 100 frames per second, CCIR625 line, 50 fields NTC: 120 frames per second, CCIR525 line, 60 fields 720P: 800Kbps -4Mbps, optional 8-level picture quality |
|
| Video recording method | Default automatic recording, supports ignition recording | |
| Alarm input | 3-channel level alarm input | |
| Video storage | Storage | Maximum support for 1 * 512GB high-capacity TF card |
| Upgrade method | Support local upgrade of TF card | |
| File format | MJPEG Universal Video Format | |
| File System | exFAT32 file system | |
| Video playback | Video Search | Search for recorded video files by recording time |
| Replay | Only supports single channel playback | |
| Power supply and power consumption | Power management | Adaptive wide power input,with protection functions such as overload,undervoltage,short,circuit,and,reverse,connection; Support delayed shutdown function. |
| Input voltage | DC:+10V - +36V | |
| Output voltage | +12V@1.5A | |
| power waste | Normal working state<14W, standby state<0.5W | |
| Working environment | Temperature | -20℃ - +70℃ |
|
-20℃ - +70℃ Humidity |
20% - 80% | |
| Size | Size | The overall size is 10.1 inches, 250mm (L) * 40mm (W) * 155m (H) excluding brackets |
| Weight | 1.26KG including screen holder, complete set of accessories | |
H. 265 compression mode, supporting 4 real-time million AHD high-definition inputs and analog standard definition camera inputs;
Pre distributed vehicle specific file system technology solves the problem of file fragmentation caused by repeated erasures, addresses the issues of storage file system crashes, data loss, inability to find storage, and file garbled characters, ensuring data stability and integrity;
9V-36V adaptive wide voltage input, ultra-low power consumption design;
Support UPS technology, the machine can work for 8-10 seconds in case of abnormal power outage, ensuring that data is not damaged and the integrity of the event process
TF card storage (supporting up to 128GB TF card) can completely resist data damage caused by vibrations, dust, and other factors in the car;
Support TF card and remote device upgrades
Support GPS/BD/module expansion;

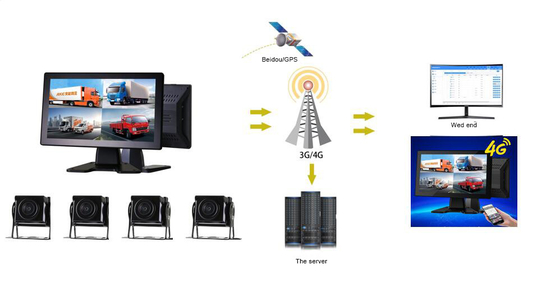

Real time remote monitoring through 4G;
Support mobile remote monitoring and management, remote monitoring function
High reliability aviation head connector, cost-effective, stable and reliable.
Remote monitoring of departmental standard platforms required by enterprise level industry clients
The computer can display 100 real-time images simultaneously
Real time video, real-time positioning, trajectory playback, video playback, real-time speed,
Mobile monitoring, computer monitoring, fleet management, 24-hour monitoring, parking monitoring,
Dual stream design, wide voltage, IPS display screen, high-definition image, voice control, full screen reverse.
4G Live Monitoring Platform (Support Protocol JT794,JT808,1078,GT19056 )
GPS positioning car video recorder Clent software for Computer
Mobile DVR Application
