4CH APC 4G Bus People Counter MDVR System For Bus Fleet Management
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9204C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; TCP/IP server Wireless 3G 4G WIFI dialing bus people counter MDVR system with 4ch video recording |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Sensor Type: | Video Counting, 98% Accuracy |
|---|---|---|---|
| Level: | World Class Anti-vibration Technology | Operation Interface: | OSD With Mouse And Remote Control |
| Scanning Style: | Video Counting | Data Transmission: | 3g,4G,, GPS, Wifi ,gprs, Rs232/485, HDD Storage |
| Camera: | Binocular Cameras&Monitoring Cameras | Network: | 3G/4G/WIFI |
| USB Port: | Standard 2.0 | City Bus: | Support 1/2/3/4 City Buses |
| System: | Linux | RS232/RS485: | Supported |
| The Third-party Platform: | Supported | Protocol: | Yes |
| Highlight: | 4G Bus People Counter,Bus People Counter MDVR System,4CH Bus People Counter |
||
Product Description
4CH 4G bus people counter MDVR system for bus fleet management
The Vieo- Counting Bus People Counter(VPC) with binocular lens is developed based on advanced Video Counting&image analysis technoloy.
It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
It can automatically filter backpack, luggage etc.

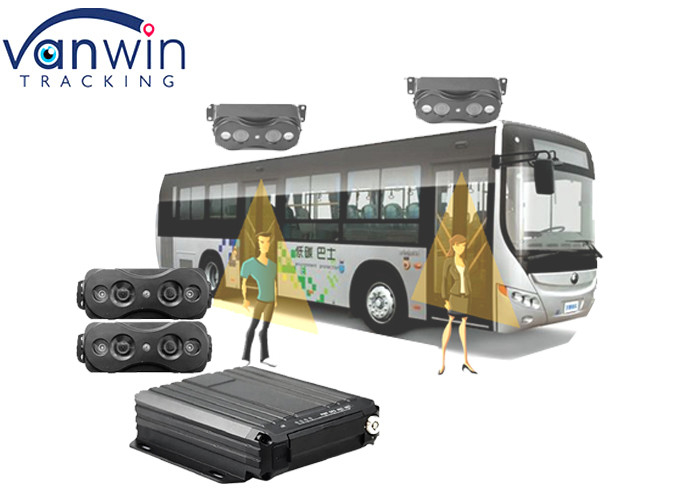

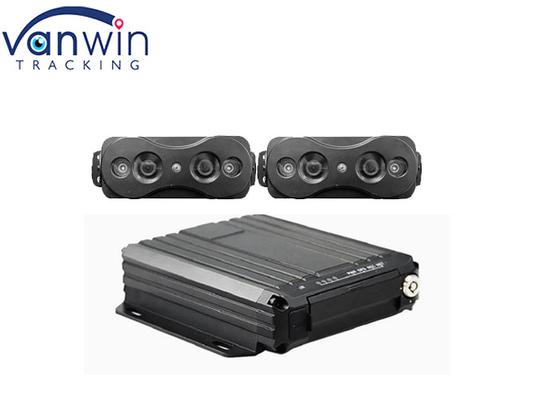

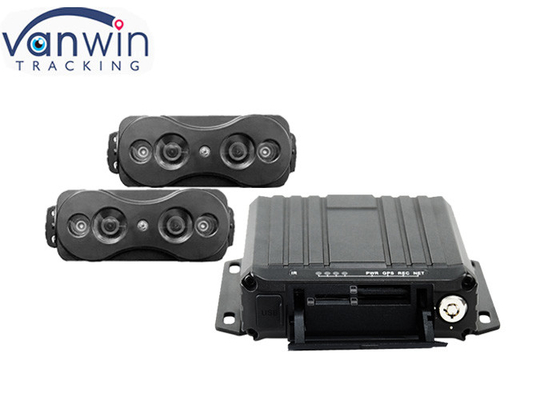

The complete system:

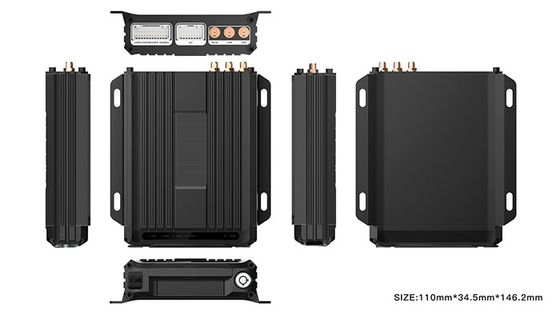

1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

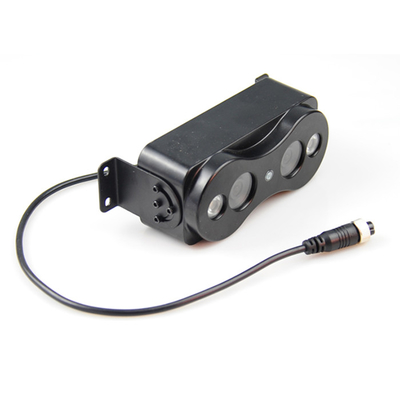

2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
Specification
| Item | Description | |
| OS | Linux3.18 | |
| Operating | PC client, Remote controller | |
| Functions Summary | Preview, recording, playback,passenger-counting ,network transmission, positioning, AI analysis, multiple sensor data acquisition. | |
| Video and Preview | Video Input, Output,Signal standard | AHD input:8ch 1080p/15fps,8ch 720p/30fps,8ch D1/30fps,4ch 1080p/30fps. IPC input:1ch default, externally expandable 1-4ch,support POE; Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
| OSD | Character superposition function, information superposition of time and date, device ID ,passemger-counting information and GPS, alarm,etc. | |
| Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. | |
| Image quality | Code stream, frame rate optional | |
| Preview | 1/4/6/8/9 channel preview | |
| Resolution |
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M D1:30fps/512K/1M/2M IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M |
|
| Audio | Audio Input, Output | 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ |
| Compression Format | G.711A, G.726 | |
| Recording | Storage Medium | Supporting one 2.5” SATA hard drive and one SD card |
| Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Alarm pre-recording | 0-60min | |
| Alarm recording delay | 0-30min | |
| Playback channel | Support local 1/4/6/8 channel playback | |
| Browse mode | Time, channel, event. | |
| Communication Ports | RS232, RS485 | |
| ADAS | Built-in (Optional) | |
| Wireless Transmission |
3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect. Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M) |
|
Platform show
Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.
