4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9208C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD1000 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Material: | Aluminum Alloy | System: | Linux |
|---|---|---|---|
| Product Name: | 4G GPS Automatic Passenger Counting Systems | Functions: | Counting,4G Live Video Streaming, GPS Tracking&locating, Reports For Fuel Level Aram Etc |
| Storage: | HDD +SD Card, Max 2TB+ 256GB | Video Inputs: | 4CH 1080P AHD Video Input+4CH Counting Video Inputs |
| Snapshot: | Support | Signal Trigger: | GPS Speed Trigger /Door Open/close Trigger |
| Extensive Function: | WIFI Routing/wifi/fuel Level/ Temperature Monitoring/ Overspeed Alarm Etc | ||
| Highlight: | Automatic Bus People Counter,Public Transport Bus People Counter,Public Transport Passenger Counting Systems |
||
Product Description
4G GPS Automatic Bus People Counter Systems For Public Transport
4G GPS Bus Passenger flow statistics tool video counting sensor
Product Introduction:
This Passenger Counter System is designed for real-time counting of the passengers board a bus at doors. The system is capable of working with 1,2,3 door buses. It will provide accurate count of total passengers and monitor the process on a real time basis. It has an added advantage of monitoring vehicle speed as well as tracking position via GPS.
Product Parameter
| Item | Description | |
| OS | Linux3.18 | |
| Operating | PC client, Remote controller | |
| Functions Summary | Preview, recording, playback,passenger-counting ,network transmission, positioning, AI analysis, multiple sensor data acquisition. | |
| Video and Preview | Video Input, Output,Signal standard | AHD input:8ch 1080p/15fps,8ch 720p/30fps,8ch D1/30fps,4ch 1080p/30fps. IPC input:1ch default, externally expandable 1-4ch,support POE; Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
| OSD | Character superposition function, information superposition of time and date, device ID ,passemger-counting information and GPS, alarm,etc. | |
| Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. | |
| Image quality | Code stream, frame rate optional | |
| Preview | 1/4/6/8/9 channel preview | |
| Resolution |
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M |
|
| Audio | Audio Input, Output | 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ |
| Compression Format | G.711A, G.726 | |
| Recording | Storage Medium | Supporting one 2.5” SATA hard drive and one SD card |
| Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Alarm pre-recording | 0-60min | |
| Alarm recording delay | 0-30min | |
| Playback channel | Support local 1/4/6/8 channel playback | |
| Browse mode | Time, channel, event. | |
| Communication Ports | RS232, RS485 | |
| ADAS | Built-in (Optional) | |
| Wireless Transmission |
3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect. |
|
| Position | GPS/BD: Positioning, speed detection, time synchronization | |
| Power Supply and Power Consumption | Power Supply | 1ACC on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@1A; +5V@1A | |
| Power Consumption | Max 25W consumption, about 0W in standby mode | |
| Operating Environment | Temperature | preheating: -20℃ ~ +70℃ |
| Humidity | 8% to 90% | |
| Dimensions | 324.6x238x116 mm. | |
| Weight | Net: 2KG | |

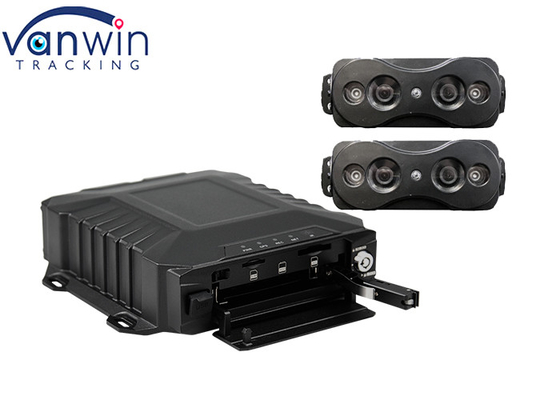

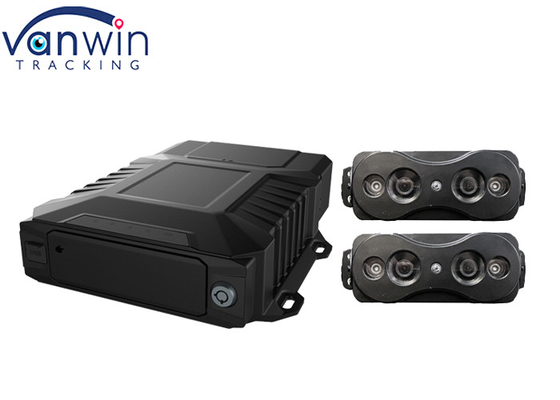

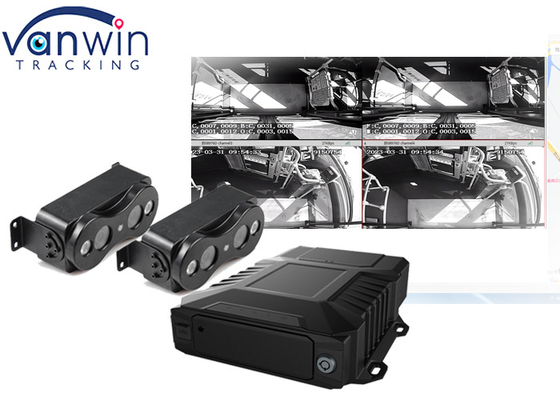

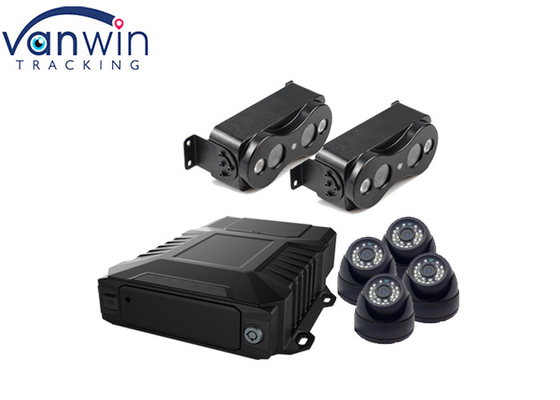

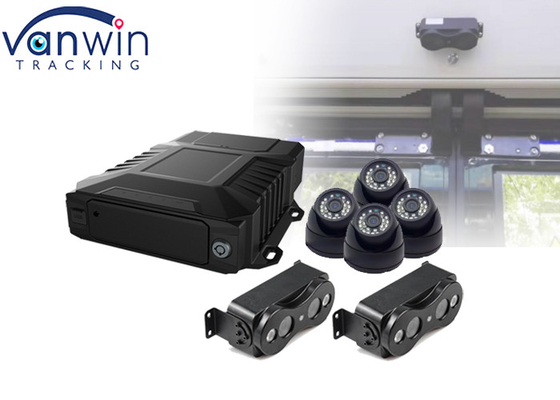

Product photos:

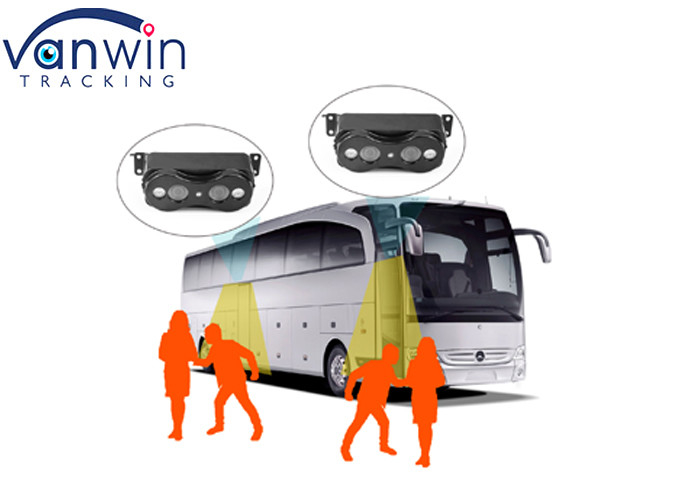

Application
