360-degree AHD DVR 7 / 9 / 10.1-inch Car Camera Recording System For Trucks Buses
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/ROHS |
| Model Number: | VW6003-JB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Video Output: | AHD,CVBS,VGA | Voltage Tolerance: | 12V/24V |
|---|---|---|---|
| Screen Size: | 7,9,10.1 Iich | Resolution: | 720P,1080P |
| Storage Medium: | Usb Flash Drives,Solid State Drives | Working Temperature Range: | -20~70℃ |
| Humidity Tolerance: | 0-95% | Warranty: | 12 Month |
| Highlight: | 10.1-inch Car Camera Recording System,360-degree AHD DVR,AHD DVR For Trucks Buses |
||
Product Description
360-degree AHD DVR 7 / 9 / 10.1-inch Car Camera Recording System For Trucks Buses
The 3D panoramic 360-degree bird's-eye view camera monitoring system is a kind of on-board digital video recorder system, providing users with functions such as all-day driving record and parking assistance. It is a high-tech intelligent hardware product for automobiles, applicable to various types of heavy trucks and buses.
360-degree AHD DVR Key Features

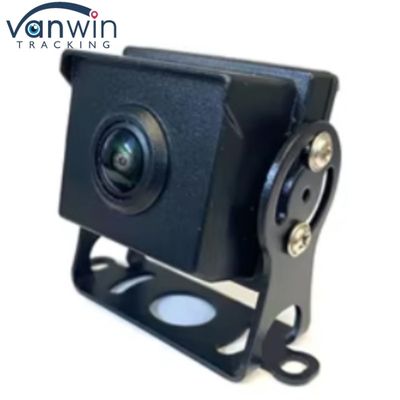

4 x 190-degree ultra-wide-angle fisheye Lenses: Simultaneous recording by multiple cameras ensures comprehensive coverage without any blind spots.
Hardware-accelerated fFisheye correction: Provides surveillance footage with a near-normal perspective, minimizing distortion.
Maximum video recording resolution of 3840x2160: Captures high-resolution video for clear and detailed imaging.
3D de-interlacing technology: Ensures smooth data transmission, preserving the integrity of the surveillance video without missing frames.
3D noise reduction technology: Effectively filters out noise interference, enabling uninterrupted monitoring of the vehicle's surroundings while ensuring driver focus.
Equipped with a 4-channel real-time brightness design engine: Achieves optimal automatic brightness balancing to maintain the clarity and viewability of the display screen.
Supports USB as a recording medium: Provides an additional storage option compared to conventional recorders, enhancing user convenience.
Automotive-grade chipset and protection components: Ensures superior system performance and stability under various conditions.
T507 intelligent hardware: Facilitates efficient, high-precision seamless integration, improving product durability and reliability.
Expandable functions: Includes driving video recording, intelligent four-wheel trajectory analysis, 3D visual radar, blind spot detection, driver behavior analysis, and road departure warning.
| Parameter Type | Specifications | Numerical Value |
| Video Output | AHD | RCA 720P(25/30fps) |
| CVBS | RCA(NTSC/PAL) | |
| VGA | 15P(720P60/1080P30HZ) | |
| Camera Power Camera Video |
Dial Switch/Control | 3.9/5.2/7.2/8/12V |
| 4*720P/4*1080P(Synthesis) | 6*720P/6*1080P(Switch) | |
| Electromagnetic Compatibility |
(ESD) | 6KV |
| (RI01) | 20M-400M,60mA | |
| (RE01) | 30MHz to 1GHz | |
| Trigger Signal | High Beam | Supported |
| Cornering Lamp | Supported | |
| Reversing Lamp | Supported | |
| Interactive Signal | 232/TTL | CAN |
| Video Tape | Code | H.264 |
| Image Resolution | 1920*1080p@25fps/4K | |
| Bit Rate | 10Mbps,3.6Gbyte/Hour | |
| Recording Medium | U Disk/SSD | |
| Maximum Disk Capacity |
Solid State Hard Disk | 500G/1T |
| USB Drive | 128G USB2.0 | |
| Power Consumption |
Non-Recording Status | 9W |
| Recording Status | 10.5W(USB drive) | |
| Shutdown Status | ＜50mW | |
| Physical Characteristics |
L*W*H | 130*100*33mm(Host Box) |
| Weight | 220g(Host Box) | |
| Work Environment |
Working Temperature | -30℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 105℃ | |
| Humidity Tolerance | 0~95% | |
| Voltage Tolerance |
Working Voltage 12V/24V |
9.5~18 / 18~38 |

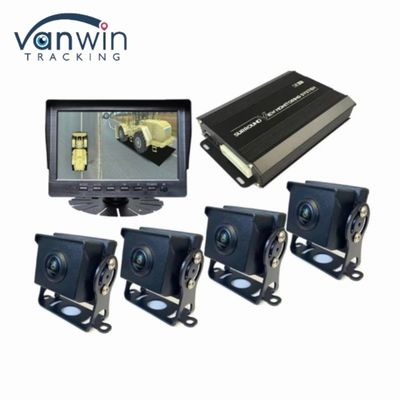

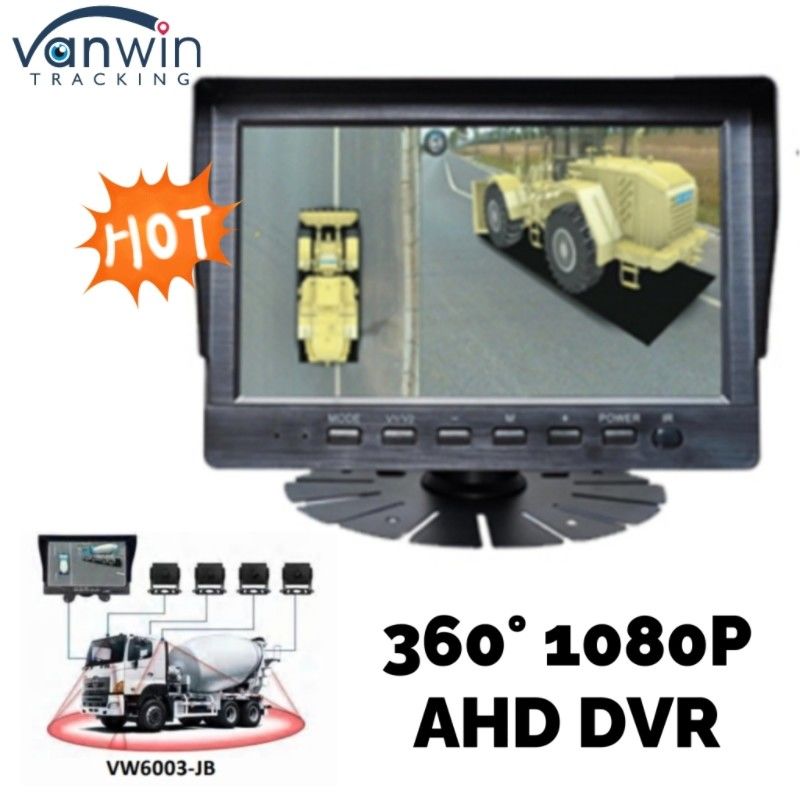

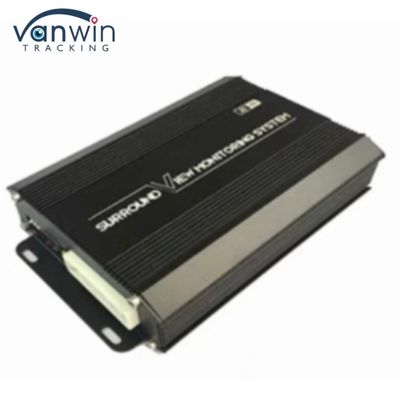

360-degree AHD DVR Product Pictures
360-degree AHD DVR Application Scenarios
Side parking, reversing into the warehouse, blind area coverage, steep slope forward view, narrow road, crowded road, etc.
Our Industry Advantage
We specialize in the research, development, production, and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Committed to stringent quality control, our professional QC teams consistently deliver high-standard products. We have had the privilege of serving major companies worldwide and customizing specialized projects for clients across the globe. Look forward to the opportunity to collaborate with you in the near future.
FAQ
1. Q: How do I install this system on my truck?
A: We have detailed product installation and operation instructions to help you install and use this 360-degree camera system better and faster.
2. Q: What features can help me monitor whether my driver employees are driving properly?
A: Yes, we have the DMS (Driving Monitoring System) function, which can be extended to this product to help your company monitor whether the driver's driving behavior is compliant.
3. Q: How long can I keep the surveillance video?
A: This product can support up to 1TB of solid state drive, can store 7 days of surveillance video. When the time is up, the new monitoring content will automatically override the previous content.
