CMSV6 4CH Dual SD Card Mobile DVR 4G GPS Real Time Monitoring Video Surveillance MDVR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-9304 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | CMSV6 Platform 4CH Dual SD Card Mobile Dvr | Video Input: | 4 Channels |
|---|---|---|---|
| Storage: | Support Dual SD Card (Max 2*512G) | Video Compression: | H.264/H.265 |
| Operating System: | LINUX | Voltage: | 9-36V DC |
| Compatibility: | Works With AHD, CVBS, And Other Analog Cameras | Operating Temperature: | -20℃~+70℃ |
| Applicable: | Universal Vehicles, Bus, Truck, Other Special Vehicles | Language: | Chinese,English,Russian,Multi-Language |
| Highlight: | Dual SD Card Mobile DVR,4G GPS SD Card Mobile DVR |
||
Product Description
4CH Dual SD Card Mobile DVR Description
CMSV6 4CH Dual SD Card Mobile DVR 4G GPS Real Time Monitoring Video Surveillance MDVR
The CMSV6 4CH Dual SD Card Mobile DVR is a high-performance, compact, and reliable in-vehicle surveillance system designed to provide comprehensive security and monitoring for vehicles. Equipped with advanced features, this 4-channel DVR ensures high-quality video recording and real-time monitoring, making it ideal for fleet management, public transportation, and private vehicle security.
4CH Dual SD Card Mobile DVR Key Features:
4-Channel Video Input:Supports up to 4 cameras, allowing for simultaneous recording from multiple angles (e.g., front, rear, and sides of the vehicle), ensuring complete coverage and enhanced security.

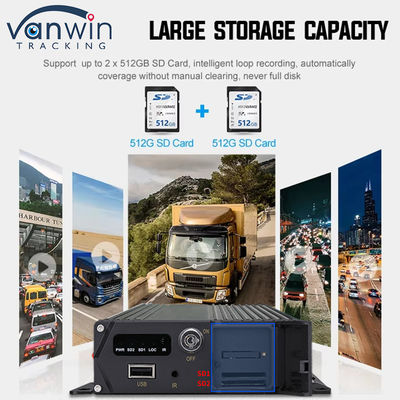

Dual SD Card Slots:Features dual SD card slots for extended storage capacity and continuous recording. When one card reaches its storage limit, the system automatically switches to the second card, ensuring no data loss.
High-Definition Recording:Captures high-definition video footage, providing clear and detailed images for accurate incident review and evidence collection.
GPS Tracking:Built-in GPS module enables real-time tracking of the vehicle's location, speed, and route history, enhancing fleet management and security.
G-Sensor & Event Recording:Equipped with a G-sensor that detects sudden impacts or collisions, automatically saving and locking the relevant footage to prevent overwriting. This ensures critical events are preserved for further investigation.
Wide Dynamic Range (WDR):Enhances video quality in challenging lighting conditions, such as low light or strong backlight, ensuring clear footage in all environments.
Remote Viewing & Playback:Supports remote access via mobile apps or web browsers, allowing users to view live footage or playback recorded videos from anywhere, anytime.
Loop Recording:Automatically overwrites the oldest footage when storage is full, ensuring continuous recording without the need for manual intervention.
Compact & Durable Design:Designed to withstand harsh vehicle environments, including vibrations, temperature fluctuations, and dust, ensuring reliable performance in all conditions.
Easy Installation & User-Friendly Interface:Simple to install and operate, with an intuitive interface for quick setup and configuration.
Applications:
- Fleet management and tracking
- Public transportation security
- Private vehicle surveillance
- School buses and shuttle services
- Law enforcement and emergency vehicles
Product Specifications: CMSV6 Platform 4CH Dual SD Card Mobile DVR
| Item | Parameter | Specification | |
| System | Language | English/Chinese | |
| OSD | Graphic User Interface(OSD menu) | ||
| Password | User password/Administrator password | ||

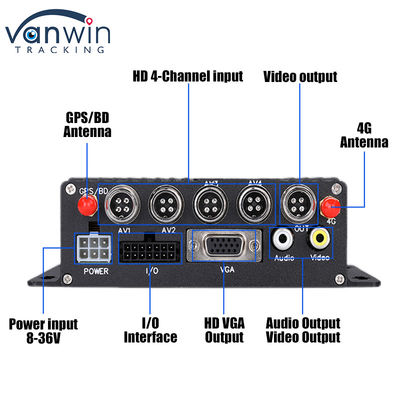

| Video | Input |
Support 4ch 1080P/720P/D1 video input Support 2ch 1080P AHD + 2ch 720P /2CH D1 video input Support 2ch 720P AHD + 2ch D1 video input |
|
| Output | 1ch video output(V-OUT), 1ch VGA video output | ||
| Display | 1CH/4CH display | ||
| Standard | PAL/NTSC ( PAL@60 frame 1080P; NTSC@60 frame 1080P ) | ||
| Image Compression | H.264 Main profile, 100fps | ||
| Audio | Input | 4CH audio input | |
| Output | 1ch audio output(A-OUT) | ||
| Recording Mode | Synchronous recording in audio&video | ||
| Image Processing & Storage | Video format | CIF / HD1 / D1 / 960H / 720P/1080P. | |
| Video Stream Standard | ISO14496-10 | ||
| Video Bit Rate(kbps) | CIF:1536Kbps ~ 128Kbps HD1/D1:2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 512Kbps 1080P: 4096Kbps ~ 1024Kbps | ||
| 4 levels settings optional, highest: level 4; lowest: level 1 | |||
| Audio Bit Rate | 40KB/s | ||
| Storage | Support 1*SD card, Max 512GB | ||
| Alarm | Input | 3CH alarm input | |
| Output | 1CH alarm output, high level 12V output | ||
| Communication Port | RS232 Interface | Support 1 RS232 interface | |
| network interface | Support a 6 Pin header network interface, support access to local network and report to server,connect the IP cams. | ||
| USB2.0 Interface | Support 1*USB interface for software upgrading and record file copy | ||
| Wireless | 3G | 3G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional | |
| 4G | 4G(FDD-LTE/TDD-LTE) module optional | ||
| WIFI | WIFI module(2.4/5.8GHz) optional | ||
| GPS | Support built-in GPS module, Geographical co-ordinates, driving speed can be written in coding flow, and uploaded via wireless(optional) | ||
| G-Sensor | Build-in G-Sensor | ||
| Software | PC Playback | Play back video on computer and analyze vehicle information from recording file | |
| CMS | Video preview, GPS uploading, alarm uploading, central command parameter configuration etc. via wireless | ||
| Software Upgrading | Support USB upgrading, SD card upgrading and CMS remote upgrading | ||

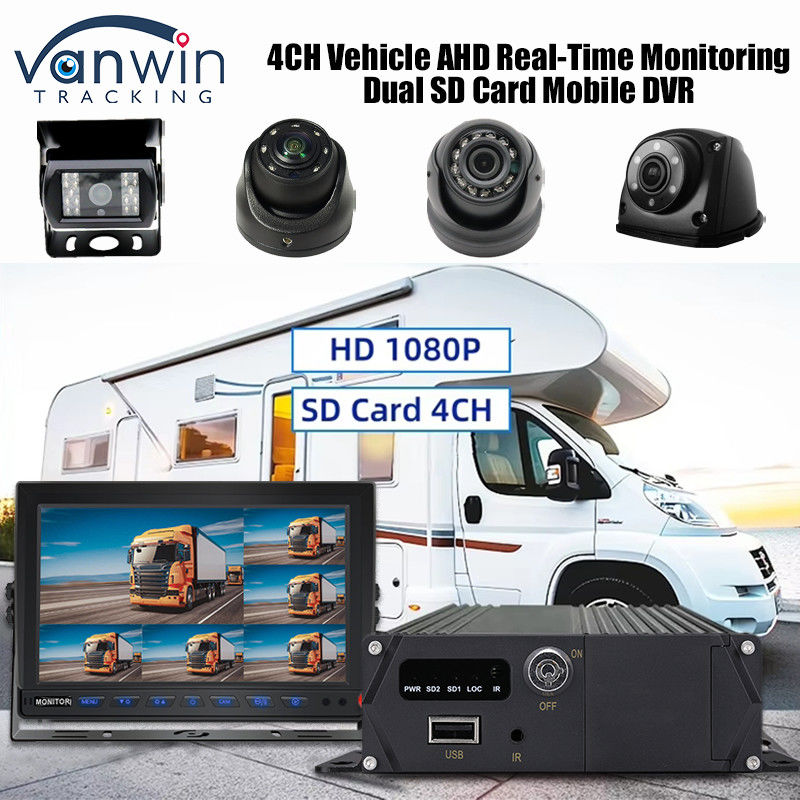

4CH Dual SD Card Mobile DVR Photos

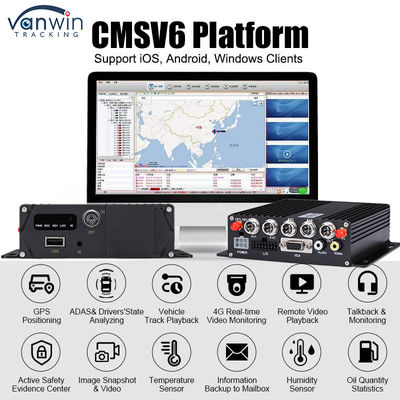

Advantages of the CMSV6 Platform
The CMSV6 Platform is a robust and versatile solution designed for in-vehicle surveillance and fleet management. It offers a range of advanced features and benefits that make it a preferred choice for security and monitoring applications. Below are the key advantages of the CMSV6 platform:
How to Use the CMSV6 Platform
1. Installation
- Mounting: Install the CMSV6 DVR in a secure location within the vehicle, such as under the dashboard or on a DIN rail.
- Camera Connection: Connect up to 4 cameras to the DVR using the provided video input ports. Ensure cameras are positioned to cover critical areas (e.g., front, rear, and sides of the vehicle).
- Power Supply: Connect the DVR to the vehicle’s power system (12V/24V DC) for continuous operation.
2. Configuration
- System Setup: Use the intuitive interface to configure settings such as video resolution, frame rate, and recording mode.
- Storage Setup: Insert SD cards into the dual slots and format them through the DVR’s menu.
- GPS and G-Sensor Calibration: Enable and calibrate the GPS and G-sensor for accurate tracking and event detection.
3. Recording and Monitoring
- Continuous Recording: The DVR automatically starts recording when the vehicle is powered on. Loop recording ensures uninterrupted operation.
- Event-Based Recording: Configure motion detection or G-sensor triggers to save footage during specific events.
- Live Monitoring: Use the video output port to connect to an external monitor for real-time viewing.
4. Remote Access and Playback
- Mobile App/Web Access: Download the dedicated mobile app or access the DVR via a web browser to view live footage or playback recordings remotely.
- GPS Tracking: Monitor the vehicle’s location, speed, and route history in real-time through the app or web interface.
- Data Export: Remove SD cards or use the USB port to export footage for further analysis or evidence collection.
5. Maintenance
- Regular Checks: Periodically check camera angles, SD card health, and system settings to ensure optimal performance.
- Firmware Updates: Update the DVR’s firmware as needed to access new features and improvements.
Applications of the CMSV6 Platform
Fleet Management: Monitor and track commercial vehicles for improved safety and efficiency.
Public Transportation: Enhance security in buses, trains, and taxis.
Private Vehicles: Provide security and evidence collection for personal cars.
Law Enforcement: Support surveillance and evidence gathering in patrol vehicles.
School Buses and Shuttles: Ensure the safety of passengers and drivers.
