8CH Mobile DVR For Car Fuel Monitoring System And Fleet Management GPS For Truck Drivers
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-9024 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Item Name: | 1080P H265 8CH Mobile DVR With Fuel Monitoring System | Video Input: | 8 Channels |
|---|---|---|---|
| Function: | Oil Sensor,Tire Pressure Monitoring,Temperature Sensor | Modules: | 4G GPS WIFI |
| Free Software: | CMSV6 | Operation System: | Linux |
| Support System: | IOS Or Android Mobile Phone , PC | Cameras: | 1~8 Cameras |
| Image Resolution: | 1080P/720P/960P | Voltage: | 8-36V DC |
| Highlight: | 8CH Mobile DVR,Car Fuel Monitoring Mobile DVR,Truck Drivers Mobile DVR |
||
Product Description
Fuel Monitoring System Mobile DVR Description
8CH Mobile DVR For Car Fuel Monitoring System And Fleet Management GPS For Truck Drivers
This product is an intelligent vehicle-mounted system designed for vehicle monitoring and fuel management. It integrates 8-channel high-definition video input Mobile DVR (car digital video recorder) and externally expanded ultrasonic fuel sensors, providing comprehensive vehicle safety monitoring and precise fuel consumption management functions. It is suitable for logistics and transportation, public transportation, engineering vehicles, dangerous goods transportation and other fields, helping users achieve efficient operation, anti-theft and damage prevention and cost optimization.
Mobile DVR With Fuel Monitoring System Core Functions
Multi-channel high-definition video monitoring
- Supports 8-channel high-definition camera input, real-time recording of 1080P/720P video, covering key areas inside and outside the vehicle (cockpit, cargo hold, blind spots, etc.).
- Supports infrared night vision, motion detection, and emergency event locking (collision/sudden brake trigger recording) functions.
- Built-in GPS module records vehicle driving trajectory, speed, time and other information, and stores it synchronously with video data.
Ultrasonic fuel sensor
- High-precision monitoring: Use ultrasonic technology to non-contactly measure the amount of fuel in the tank with an accuracy of ±1%, and resist temperature fluctuations and vehicle bumps.
- Anti-theft alarm: Real-time monitoring of abnormal fuel changes (such as oil theft and leakage), triggering DVR recording and pushing alarms to the management platform.
- Data integration: Fuel consumption data is associated with driving video and GPS trajectory analysis to generate fuel consumption reports to optimize driving behavior and route planning.
Intelligent management and remote control
- Remotely access DVR real-time video and fuel data through 4G/WiFi, supporting mobile APP and PC management platforms.
- Supports TF card/hard disk dual storage (up to 2TB), loop recording and overwriting, data encryption and anti-tampering.
- It can be expanded to connect other vehicle sensors (such as temperature and tire pressure) to create a comprehensive vehicle Internet of Things (IoT) system.
Mobile DVR With Fuel Monitoring System advantages
- Two-in-one integrated design: saves installation space and reduces the complexity of the vehicle system.
- Data-driven decision-making: video + fuel + GPS multi-dimensional data fusion to improve management efficiency.
- Strong compatibility: supports mainstream vehicle protocols and is compatible with various brands of vehicles and sensors.
- Industrial-grade reliability: -30℃~70℃ wide operating temperature, shockproof and dustproof, suitable for long-distance transportation environments.
8CH Mobile DVR With Fuel Monitoring System Main Specifications:
| Specification | ||
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Russian/Others (can be customized) | |
| Video Compression | H.265 H.264 | |
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
| 720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
| 1CH 485 interface, can connect PTZ,etc. | ||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |
| Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB. |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. | ||
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@2.5A,+5V@2A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
| Net Weight | 2.5 Kg | |
Ultrasound Fuel Sensor Specifications
| Parameter | Specification |
|---|---|
| Technology | Ultrasonic (Non-Contact Measurement) |
| Measurement Range | 0 to 1500 mm (adjustable for tank size) |
| Accuracy | ±1% of full scale |
| Resolution | 1 mm |
| Output Signal | Analog: 0-5V / 4-20mA Digital: RS485 (Modbus RTU protocol) |
| Power Supply | 12-24V DC (9-36V wide voltage input) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Protection Rating | IP67 (Dustproof, waterproof, and vibration-resistant) |
| Housing Material | Stainless Steel (sensor) + ABS (electronics enclosure) |
| Response Time | <1 second |
| Compatibility | Works with diesel, gasoline, biodiesel, and most non-corrosive liquids |
| Installation | Top-mounted (non-invasive, no drilling required) |
| Communication Protocols | Modbus RTU, CAN bus (optional) |
| Certifications | CE, RoHS, E-mark (vehicle compliance) |
| Warranty | 1 years (standard) |

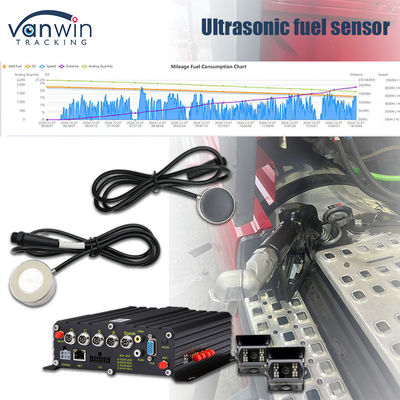

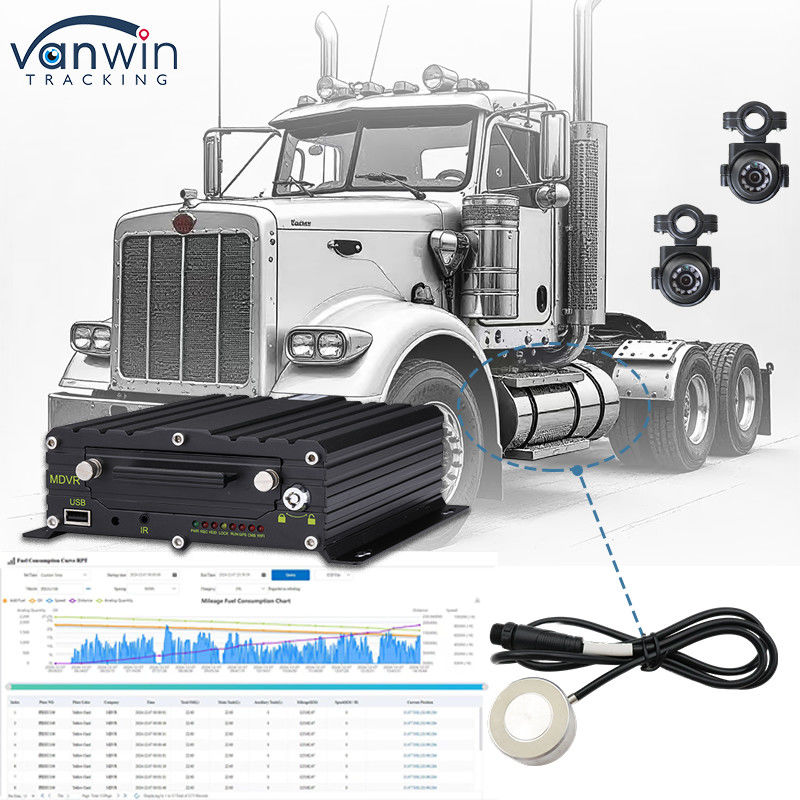

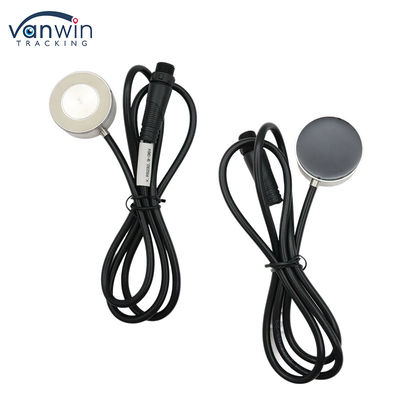

Mobile DVR With Fuel Monitoring System Photos
FAQ:Mobile DVR With Fuel Monitoring System
Q1. What is the primary purpose of this system?
This integrated solution combines an 8-channel Mobile DVR for multi-angle vehicle video surveillance and an ultrasonic fuel sensor for precise fuel level monitoring. It enhances fleet safety, prevents fuel theft, and optimizes operational costs through real-time data tracking.
Q2. How does the ultrasonic fuel sensor work?
The sensor uses ultrasonic waves to measure fuel levels non-invasively, eliminating physical contact with the fuel. It calculates the distance between the sensor and fuel surface, providing accuracy within ±1%, even in harsh environments (temperature fluctuations, vibrations).
Q3. Can the system detect fuel theft or leakage?
Yes. The sensor triggers an instant alarm (via DVR and management platform) upon detecting abnormal fuel drops. Simultaneously, the DVR records video footage of the event, aiding in evidence collection.
Q4. What types of fuel tanks are compatible?
The sensor supports both metal and plastic tanks and requires no drilling or modifications (non-invasive installation). It adapts to most commercial vehicle tank designs.
Q5. How many cameras can be connected?
The DVR supports 8 channels of HD video input (AHD/TVI/CVBS cameras). You can install cameras to cover critical areas like the driver’s cabin, cargo bay, and blind spots.
Q6. Is remote monitoring supported?
Yes. The system uses 4G LTE/WiFi for real-time remote access. View live video, fuel data, GPS location, and historical reports via mobile apps (iOS/Android) or a web-based platform.
Q7. How is data stored and protected?
Video and sensor data are stored on a 2TB HDD and/or 512GB TF card with loop recording.
Data is encrypted to prevent tampering. GPS timestamps ensure audit trails.
Q8. What if the vehicle loses power?
The DVR has built-in battery protection, preventing excessive discharge of the vehicle’s battery. It automatically shuts down during low voltage to preserve power.
Q9. Can the system integrate with other IoT sensors?
Yes. It supports expansion with additional sensors (e.g., temperature, tire pressure) via RS485/Can bus, creating a comprehensive vehicle IoT ecosystem.
Q10. How durable is the system in extreme conditions?
DVR: Operates at -30°C to 70°C with anti-vibration design.
Fuel Sensor: Rated IP67 for dust/water resistance, suitable for off-road or industrial environments.
Q11. How to handle false fuel alarms?
Adjust the sensitivity threshold via the management platform. The system also filters minor fluctuations caused by slopes or rough terrain.
Q12. What is the warranty period?
Standard warranty: 2 years for the DVR and 18 months for the ultrasonic sensor. Extended support plans are available.
Q13. How to install the fuel sensor?
Installation is tool-free:
Clean the tank’s exterior surface.
Attach the sensor magnetically or with adhesive (metal/plastic tanks).
Connect to the DVR via RS485/Can bus.
Q14. Can I customize the system for specific needs?
Yes. Optional upgrades include:
AI driver behavior analysis (e.g., fatigue detection).
Fuel level visualization dashboards.
Custom alarm rules (e.g., geofencing + fuel usage alerts).
