Fleet Management Mobile DVR System GPS WIFI 4G AI ADAS DMS BSD 1080P H.264/H.265 API For Bus,truck
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9034AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | 4CH 1080P GPS 4G WIFI AI BSD DSM ADAS Camera Mobile DVR For Bus | Application: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
|---|---|---|---|
| Alarm: | 4CH Alarm Inputs, 2CH Alarm Output | Storage: | Dual SD Card, Max 512GB*2 |
| Resolution: | 4CH Or 8ch 720P(1280x720), 960p, 1080P | Camera: | CVBS/720P/960P/1080P/IP |
| Power Supply: | 9-36V DC | WIFI Download: | Support |
| Video Format: | H.265/H264 | Warranty: | 18 Months |
| AI Function: | ADAS/DSM/BSD Optional | Language: | English/Chinese/other Language Can Be Customized |
| Software Support: | Client For PC And Mobile Phone, Server, Playback Software | ||
| Highlight: | 4G Fleet Management Mobile DVR System,WIFI Fleet Management Mobile DVR System,GPS Fleet Management Mobile DVR System |
||
Product Description
Fleet Management Mobile DVR System GPS WIFI 4G AI ADAS DMS BSD 1080P H.264/H.265 API for Bus,truck
4CH DUAL SD AI MDVR Main Specifications
| Item | specification | |||
| OS | Linux | |||
| Language | Chinese/English/Russian/Others (can be customized) | |||
| Video Compression | H.265 H.264 | |||
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation | ||
| Video Record System | Video Input | 4/8CH AHD+4CH IPC(optional):1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |||
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |||
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |||
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |||
| Video Standard |
PAL: 100 frames per second, CCIR625 line, 50 fields NTSC: 120 frames per second, CCIR525 line, 60 fields; CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~2Mbps, multi levels video quality optional; 1080P: 1Mbps~4Mbps, multi levels video quality optional; |
|||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |||
| Audio | Audio Input | 4 or 8 channel aviation Plug | ||
| Audio Output | 1channel | |||
| Compression | G.711A compression, 8KB/s speed | |||
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |||
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |||
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |||
| 1CH 485 interface, can connect PTZ,etc. | ||||
| Wireless transfer |
Built-in 4G network wireless transmission, TD-LTE, FDD-LTE 5G Optional |
|||
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |||
| Storage Medium | SD&HDD | SD card supports up to 512GB, hard drive supports 4TB; SD card can be used as a mirror recording to ensure data security | ||
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |||
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |||
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |||
| Video Playback | Video Search | Search video by Record Time/Record Mode etc | ||
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |||
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||||
| Voltage &Power Consumption | Power Management |
Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; Support timed power on/off and delayed shutdown functions. |
||
| Voltage Input | DC:+12V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Safety Management | Password Access | Two level management of user password and administrator password | ||
| others | Size | 225 (D)* 187(W)* 62(H) mm | ||
| Net Weight | 2.5 Kg | |||
Products Details

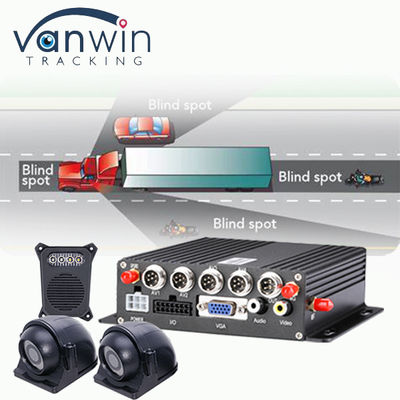

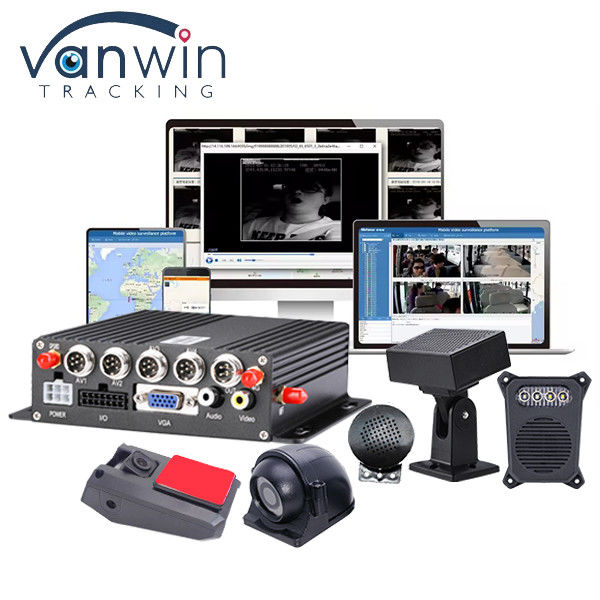

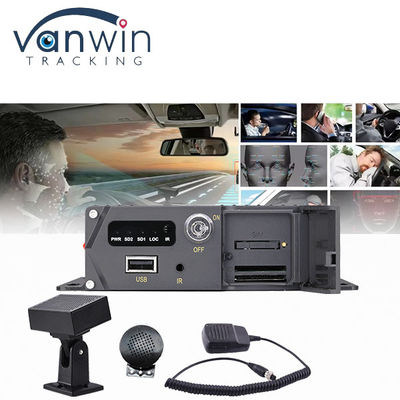

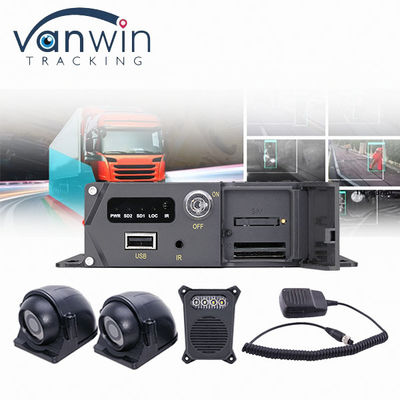

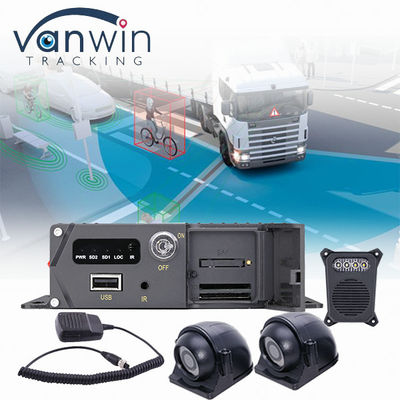

AI MDVR main unit
Adas camera
DSM Camera
BSD Camera
Sound&light alarm
Sound alarm for driver
ADAS warning camera
2. Excessive warning of car in front of you
3. Warning of impending collision
4. voice broadcast reminder,Provide real-time voice
6. Adjustable Angle, high temperature resistance
DSM prevents fatigue driving camera
1. Fatigue driving warning
2. Abnormal sightwarnings
3. Call warning
4. Imagecover warning
5. Driver change warning
6. Warning of camera failure
7. Supporte wide dynamic HDR response
8. 360°adjustable Angle, high temperature resistance
Screentshots
