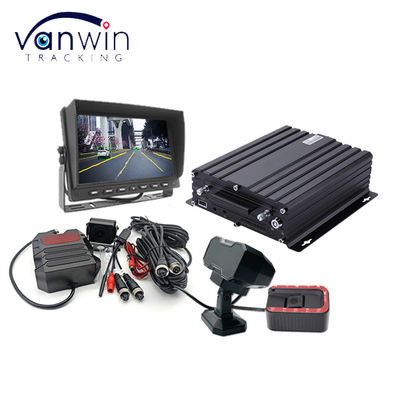

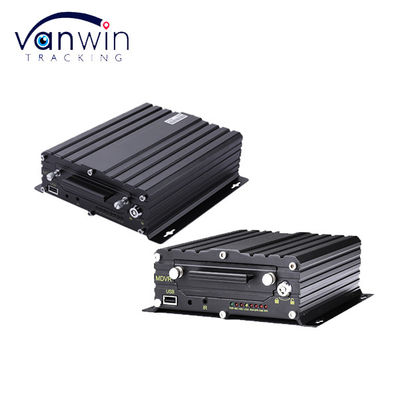

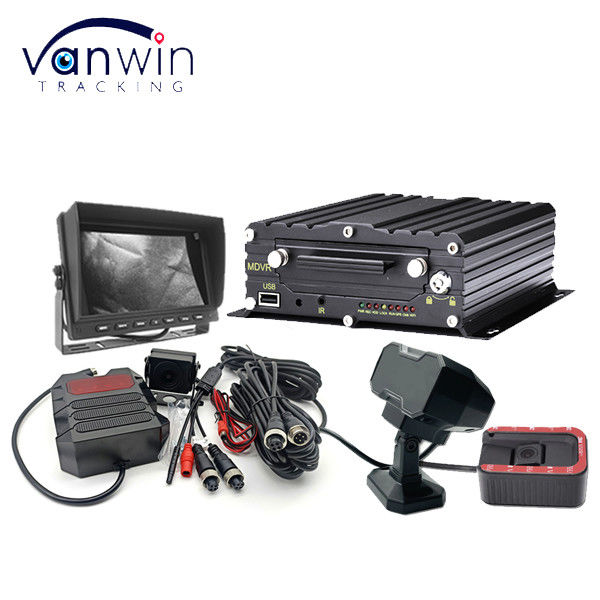

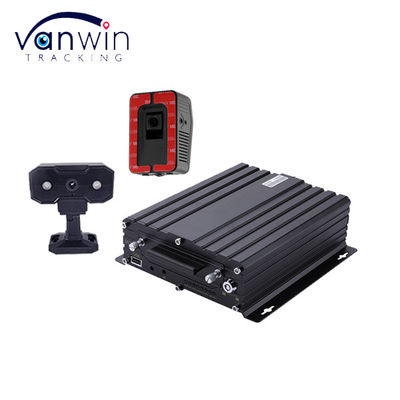

4CH 1080P SD MDVR Real Time Monitoring and Tracking 4G AI ADAS DMS Mobile DVR For Bus Truck CCTV System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9024AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | 4G AI ADAS DMS Mobile DVR | Application: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
|---|---|---|---|
| Alarm: | 4CH Alarm Inputs, 2CH Alarm Output | Storage: | 2TB Hdd Storage+1*sd Card |
| Resolution: | 4CH Or 8ch 720P(1280x720), 960p, 1080P | Camera: | CVBS/720P/960P/1080P/IP |
| Power Supply: | 9-36V DC | WIFI Download: | Support |
| Video Format: | H.265/H264 | Warranty: | 18 Months |
| AI Function: | ADAS/DSM/BSD Optional | Language: | English/Chinese/other Language Can Be Customized |
| Software Support: | Client For PC And Mobile Phone, Server, Playback Software | ||
| Highlight: | 1080P AI MDVR,4CH AI MDVR,4G AI MDVR |
||
Product Description
4CH 1080P SD MDVR Real Time Monitoring and Tracking 4G AI ADAS DMS Mobile DVR For Bus Truck CCTV System
1. H.264/H.265 hard compression mode, supporting 4/8 real-time 1080P, D1720P, 1080P high-definition adaptive input; Multiple modes can be mixed and combined in any way.
2. 4CH expandable 4AHD+4IPC; 8CH expandable 8AHD+4IPC;
3. 2 video outputs (1 CVBS video AV output, 1 VGA output);
4. Advanced bare disk+pre partitioned storage technology solves the problem of easy damage caused by uneven disk writing, the problem of file fragmentation caused by repeated erasing, the problem of data loss caused by storage file system crashes, inability to find storage, and file garbled characters, and the problem of data loss caused by time lapse, ensuring data integrity and effectiveness. The data is stored in a dedicated manner to solve the problem of data confidentiality;
5. 12V-36V adaptive wide voltage input, ultra-low power consumption design;
6. Support UPS technology, the machine can work for 5-10 seconds in case of abnormal power outage, ensuring that data is not damaged and in case of emergencies, the entire event process can be saved in a timely manner;
7. SD card+hard drive storage: SD card supports up to 512GB, hard drive supports mechanical or solid-state drives, and supports up to 4TB.
8. Support multiple storage strategies such as multi disk circular storage, backup storage for disk loss, and small stream image storage; SD card can be used as a mirror for recording, recording together with the hard drive to achieve dual recording, ensuring the integrity of the recording and ensuring foolproof performance.
9. Support USB interface, backup data, and device upgrade;
10. Support GPS/BD/G-Sensor module expansion; Remote monitoring (real-time video, monitoring, intercom, broadcasting, video query, playback, download) can be achieved through 3G/4G/5G/WIFI;
11. Support JT808 and JT1078 standard protocols; Support remote configuration/control of devices;
12. Support pan tilt control; Support text scheduling and distribution function;
13. Expandable fuel level sensor, temperature sensor, card reader, LED advertising screen, OBD, etc;
14. Support remote monitoring and management through mobile phones; Support multi screen display mode.
15. High reliability aviation head connector, cost-effective, stable and reliable.
16. Can add extensions: fatigue driving warning DSM+road driving warning ADAS+blind spot warning BSD function
Main Specifications
| Item | specification | |||
| OS | Linux | |||
| Language | Chinese/English/Russian/Others (can be customized) | |||
| Video Compression | H.265 H.264 | |||
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation | ||
| Video Record System | Video Input | 4/8CH AHD+4CH IPC(optional):1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |||
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |||
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |||
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |||
| Video Standard |
PAL: 100 frames per second, CCIR625 line, 50 fields NTSC: 120 frames per second, CCIR525 line, 60 fields; CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~2Mbps, multi levels video quality optional; 1080P: 1Mbps~4Mbps, multi levels video quality optional; |
|||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |||
| Audio | Audio Input | 4 or 8 channel aviation Plug | ||
| Audio Output | 1channel | |||
| Compression | G.711A compression, 8KB/s speed | |||
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |||
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |||
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |||
| 1CH 485 interface, can connect PTZ,etc. | ||||
| Wireless transfer |
Built-in 4G network wireless transmission, TD-LTE, FDD-LTE 5G Optional |
|||
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |||
| Storage Medium | SD&HDD | SD card supports up to 512GB, hard drive supports 4TB; SD card can be used as a mirror recording to ensure data security | ||
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |||
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |||
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |||
| Video Playback | Video Search | Search video by Record Time/Record Mode etc | ||
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |||
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||||
| Voltage &Power Consumption | Power Management |
Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; Support timed power on/off and delayed shutdown functions. |
||
| Voltage Input | DC:+12V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Safety Management | Password Access | Two level management of user password and administrator password | ||
| others | Size | 225 (D)* 187(W)* 62(H) mm | ||
| Net Weight | 2.5 Kg | |||
Products Details
ADAS warning camera
2. Excessive warning of car in front of you
3. Warning of impending collision
4. voice broadcast reminder,Provide real-time voice
6. Adjustable Angle, high temperature resistance
DSM prevents fatigue driving camera
1. Fatigue driving warning
2. Abnormal sightwarnings
3. Call warning
4. Imagecover warning
5. Driver change warning
6. Warning of camera failure
7. Supporte wide dynamic HDR response
8. 360°adjustable Angle, high temperature resistance
4G Client Monitoring Platform CMSV6
FQA
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. Which OS can run this software?
server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.
4. After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
