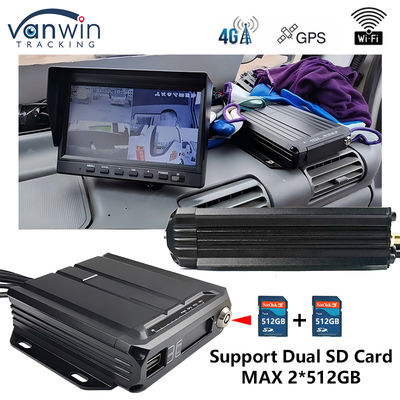

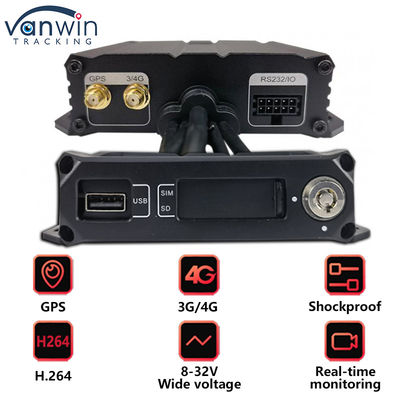

4CH Dual SD Card Mobile DVR Mini Size Car Black Box in Vehicle CCTV 4G GPS MDVR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-621HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||

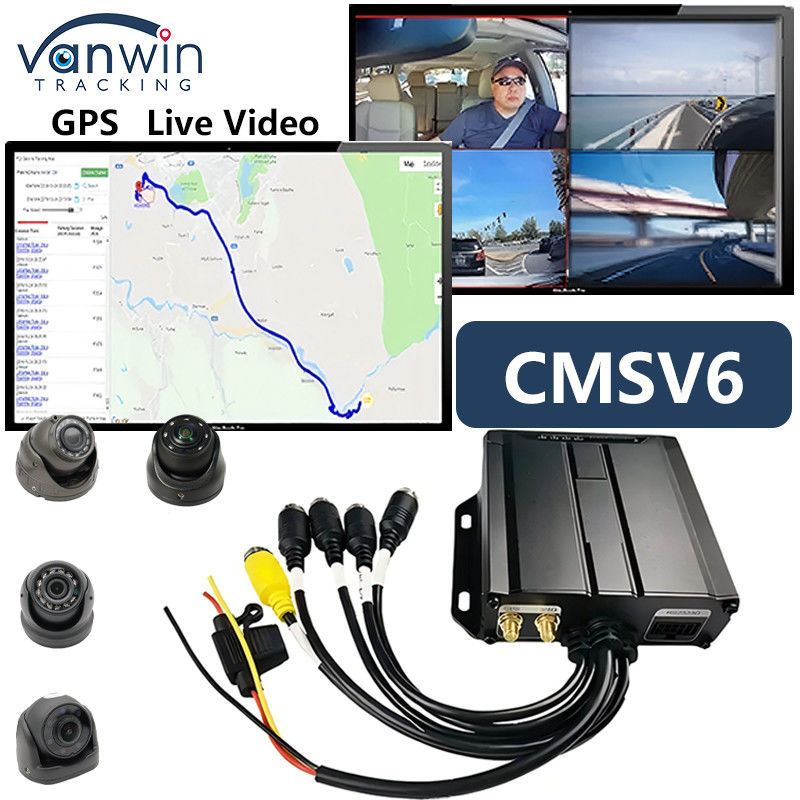

| Product Name: | 4 Channel HD Mobile DVR With CMSV6 Client Software | Type: | AHD Mobile DVR |
|---|---|---|---|
| Resolution: | 1080P/960P/720P | Video Compression: | H. 264 |
| Storage: | 2*512GB SD Card | Language: | English/Russian/Chinese |
| Network: | 3G/4G/WIFI/GPS Optional | Shockproof: | Dual Anti-vibration |
| Operation System: | Linux | Power Supply: | DC 8-36V |
| Highlight: | Mini Size Mobile DVR,Vehicle CCTV Mobile DVR,4CH Mobile DVR |
||
Product Description
Mini Size 4CH SD Card Mobile DVR Description
4CH Dual SD Card Mobile DVR Mini Size Car Black Box in Vehicle CCTV 4G GPS MDVR
The Mini Size 4CH SD Card Mobile DVR is a compact and versatile digital video recorder designed for mobile surveillance and monitoring applications. This device is ideal for use in vehicles, such as cars, buses, trucks, or other mobile environments, providing reliable and high-quality video recording for security and safety purposes.
Mini Size 4CH SD Card Mobile DVR Key Features:
4-Channel Recording: Supports simultaneous recording from up to 4 cameras, allowing comprehensive coverage of multiple angles. This is particularly useful for monitoring both the interior and exterior of a vehicle.
Compact Design: The mini size ensures easy installation and discreet placement, making it suitable for space-constrained environments.
SD Card Storage: Utilizes SD cards for local storage, offering a convenient and portable solution for saving recorded footage. The device supports high-capacity SD cards, ensuring extended recording times.
High-Quality Video: Captures clear and sharp video footage, even in low-light conditions, thanks to advanced imaging technology. Supports various resolutions to balance quality and storage efficiency.
Motion Detection: Equipped with motion detection capabilities, the DVR can automatically start recording when movement is detected, saving storage space and ensuring critical events are captured.
Loop Recording: Features loop recording functionality, which automatically overwrites the oldest footage when the storage is full, ensuring continuous recording without manual intervention.
Wide Voltage Input: Designed to operate within a wide voltage range, making it compatible with various vehicle power systems.
Easy Installation and Operation: User-friendly interface and simple setup process allow for quick installation and hassle-free operation.
Durable and Reliable: Built to withstand the rigors of mobile environments, including vibrations, temperature fluctuations, and power surges.
Applications:
- Vehicle Surveillance: Ideal for monitoring passenger safety, driver behavior, and cargo security in buses, taxis, trucks, and other vehicles.

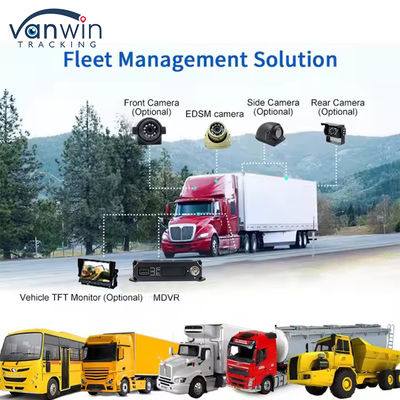

- Fleet Management: Helps fleet operators track and manage their vehicles, ensuring compliance and safety.
- Personal Security: Provides peace of mind for private car owners by recording incidents such as accidents or theft.
4CH Mini Dual SD Card Mobile DVR Specifications
|
Project
|
Parameter Description
|
|
|
Audio and video input
|
video input
|
AHD input: 4ch 1080P , maximum frame rate 120fps
|
|
audio input
|
2 audio inputs
|
|
|
Audio and video output
|
video output
|
Default 1 CVBS output (VGA output optional)
|
|
voice output
|
1 channel voice output
|
|
|
Audio and video parameter coding
|
video encoding
|
H.264 Main Profile/H.265
|
|
Video resolution
|
1080P/720P/D1 optional
|
|
|
audio coding
|
Default G.726, G.711A optional
|
|
|
storage
|
SD card
|
Support 1 SD card,Max 256GB
|
|
wireless network
|
4G wireless
|
Support 1 SIM card, optional: all mainstream communication modules in the world
|
|
Targeting
|
Beidou/GPS
|
Support hybrid positioning, speed detection, time synchronization
|
|
interface
|
USB
|
1 USB interface, support exporting data
|
|
serial port
|
Support 1 RS232, optional 1 RS485 , external sensor
|
|
|
I/O
|
4 switch inputs, compatible with 1 analog input
|
|
|
network port
|
Optional
|
|
|
Physical Specifications
|
size
|
100 mm (L) * 1 20.8 mm (W) * 32 mm (H) (excluding tail)
|
|
weight
|
Bare metal: 0.6 kg
FCL: 0.8kg (with M 15 Hv -SGNE1-L as standard) |
|
|
working environment
|
Operating temperature
|
-20～+70℃
|
|
Working humidity
|
8%~90% (non-condensing)
|
|
|
other
|
operating mode
|
Remote control, mobile APP, WEB
|
|
Gravity Sensing
|
Built-in GSensor
|
|
|
Configurable AI algorithm
|
Driver identification, people counting, assisted driving, etc.
|
|
4CH Mini Dual SD Card Mobile DVR Photos
FAQ for Mini Size 4CH SD Card Mobile DVR
Q1. What is the maximum SD card capacity supported by the DVR?
The DVR supports SD cards with capacities of up to 256GB (or higher, depending on the model). Please check the product specifications for exact details.
Q2. How many cameras can be connected to the DVR?
The DVR supports up to 4 cameras, allowing simultaneous recording from all channels.
Q3. What video resolutions does the DVR support?
The DVR supports various resolutions, such as 1080p and 720p, ensuring high-quality video footage. The exact resolution options depend on the specific model.
Q4. Does the DVR support night vision or low-light recording?
Yes, the DVR is equipped with advanced imaging technology to capture clear footage even in low-light conditions. However, the performance may vary depending on the connected cameras' capabilities.
Q5. How does motion detection work?
The DVR can detect motion within the camera's field of view and automatically start recording when movement is detected. This helps save storage space and ensures critical events are captured.
Q6. What is loop recording?
Loop recording automatically overwrites the oldest footage when the SD card is full, ensuring continuous recording without the need to manually delete files.
Q7. Is the DVR compatible with all vehicles?
Yes, the DVR is designed with a wide voltage input range (typically 12V/24V), making it compatible with most vehicles, including cars, trucks, buses, and more.
Q8. How do I install the DVR in my vehicle?
The DVR comes with power cables and connectors for easy installation. Simply connect the DVR to your vehicle's power supply and attach the cameras to the desired locations. Refer to the user manual for detailed instructions.
About Us
The Mini Size 4CH SD Card Mobile DVR is a reliable and efficient solution for mobile video recording,offering advanced features in a compact and durable package.Whether for commercial or personal use,this device ensures that every moment is captured with clarity and precision.
