4CH 1080P HDD Mobile DVR 4G GPS Real Time Monitoring And Tracking Data Storge Device
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M9208 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 4 Channel HD Mobile DVR With CMSV6 Client Software | Resolution: | 1080P/960P/720P |
|---|---|---|---|
| Video Compression: | H.264/H.265 | Language: | English/Russian/Chinese |
| Storage: | 1*2TB HDD+1*256GB SD Card | Video Output: | 1 VGA & 1 AV |
| Power Supply: | DC 8-36V | Shockproof: | Dual Anti-vibration |
| Operating System: | LINUX | Gps: | Optional |
| Highlight: | Real Time Monitoring Mobile DVR,4CH 1080P Mobile DVR,4G GPS Mobile DVR |
||
Product Description
4CH HHD Real Time Mobile DVR Description
4CH 1080P HDD Mobile DVR 4G GPS Real Time Monitoring And Tracking Data Storge Device
The 4CH HHD Real-Time Mobile DVR is a high-performance in-vehicle surveillance system designed to provide reliable and real-time monitoring for a wide range of vehicles. Equipped with 4-channel recording capabilities and a Hard Disk Drive (HHD) for ample storage, this device ensures continuous and high-quality video capture, making it ideal for fleet management, public transportation, and personal vehicle security.
4CH HHD Real Time Mobile DVR Key Features:
4-Channel Recording:
- Supports up to 4 cameras for comprehensive coverage of the vehicle’s front, rear, and sides.
- Ensures 360-degree monitoring to enhance safety and security.

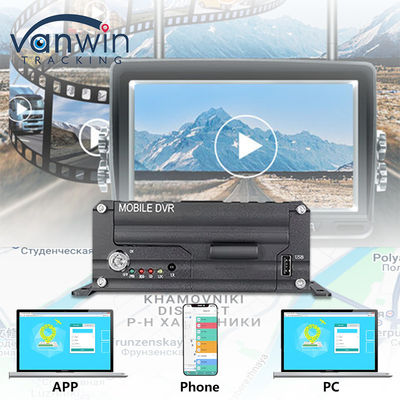

Real-Time Monitoring:
- Live video streaming allows for real-time viewing of footage via a mobile app or web interface.
- Ideal for fleet managers or vehicle owners who need immediate access to video feeds.

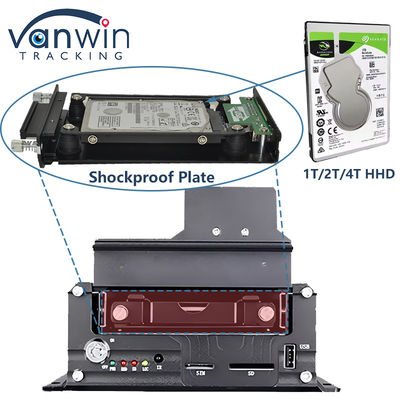

High-Capacity HHD Storage:
- Built-in Hard Disk Drive (HHD) provides ample storage for extended recording periods.
- Supports large-capacity HDDs (e.g., 1TB or more) to store high-resolution video footage.
High-Resolution Video Recording:
- Records in high definition (e.g., 1080p or higher) for clear and detailed footage.
- Night vision capabilities ensure reliable performance in low-light conditions.
GPS Tracking:
- Built-in GPS module for real-time location tracking and route history.
- Helps monitor vehicle movements and optimize routes for fleet management.
G-Sensor and Event Recording:
- Automatically saves footage in case of sudden impacts, collisions, or harsh braking.
- Protects critical evidence for insurance claims or legal purposes.
Wide Dynamic Range (WDR):
- Ensures clear video quality in challenging lighting conditions, such as bright sunlight or dark shadows.
User-Friendly Interface:
- Easy-to-use mobile app and software for seamless configuration, playback, and data management.
- Compatible with smartphones, tablets, and PCs.
Durability and Reliability:
- Designed to withstand harsh environments, including extreme temperatures, vibrations, and dust.
- Built-in surge protection and anti-interference technology for stable performance.
Expandable Storage Options:
- Supports additional storage via external hard drives or SD cards for extended recording needs.
Applications:
- Fleet Management: Monitor driver behavior, ensure compliance, and reduce accidents.
- Public Transportation: Enhance passenger safety and provide evidence in case of incidents.
- Personal Vehicles: Improve driving safety and protect against fraudulent claims.
- Commercial Vehicles: Secure cargo and monitor delivery routes.
4CH HHD Real Time Mobile DVR Main Specifications:
| Specification | ||
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Russian/Others (can be customized) | |
| Video Compression | H.265 H.264 | |
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
| 720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
| 1CH 485 interface, can connect PTZ,etc. | ||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |
| Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB. |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. | ||
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@2.5A,+5V@2A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
| Net Weight | 2.5 Kg | |
4CH Full HD 1080P HDD Mobile DVR Scenario Application:
FAQ:4CH Full HD 1080P HDD Mobile DVR
Q1. What is your terms of packing?
Re: Packing goods in neutral white boxes and brown cartons. We can do OEM package for you. Welcome send your requirements in detail, we can design the package for you.
Q2. How about your lead time?
Re: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
Re: We offer samples (no MOQ requirements for regular products), with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
Re: T/T(Bank transfer), PayPal, Western Union.
Q5. How to get the best price?
Re: The order price can be negotiated. We will quote the latest best price according to your final purchase list. SEND INQUIRY and talk in detail.
The 4CH HHD Real-Time Mobile DVR is a robust and versatile solution for vehicle surveillance, combining advanced recording technology with real-time monitoring capabilities to ensure safety, security, and peace of mind on the road.
