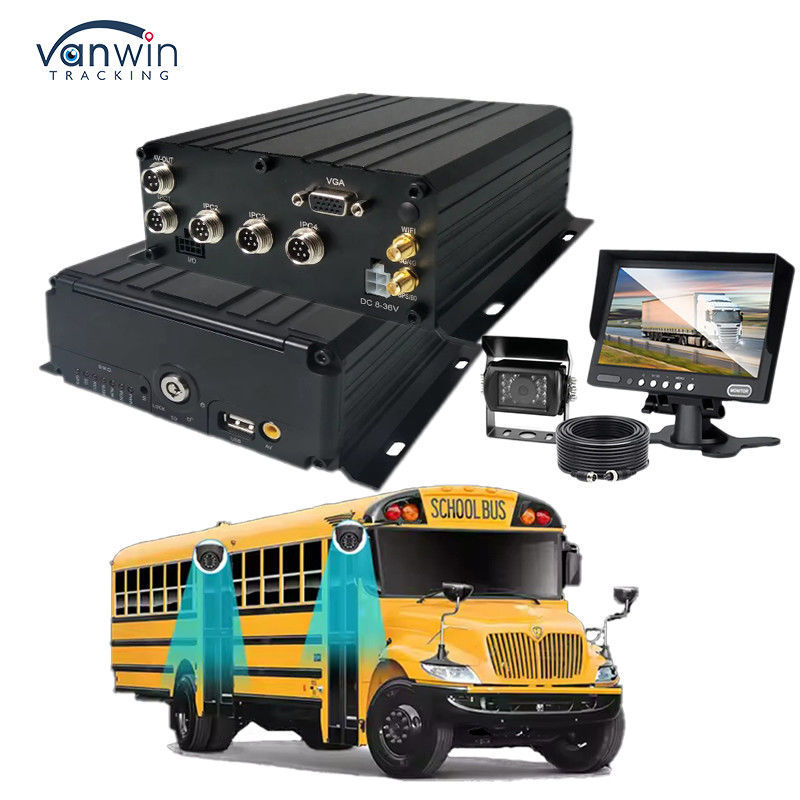

Car Storage Card AHD 1080P 4CH Hard Drive Mobile DVR High Definition Video Monitor
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW905 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Product Name: | 4-channel HD+SD Card MDVR | Video Compression: | H.264/H.265 |
|---|---|---|---|
| GPS: | GPS, GLONASS, BD | Channel: | 4 CHs Videos |
| Voltage: | 8-36 Dc Wide Voltage | Serial Port: | 1 RS232 |
| Video Bit Rate: | 800Kbps For 720P Video | Video Resolution: | 1080P/ 960P/ 720P/ D1/ HD1/ CIF |
| Power Supply: | DC 12V | OSD Interface: | Can External Connect To LCD And Set The System Specifications By Remote |
| Highlight: | High Definition Video Monitor Mobile DVR,4CH Hard Drive Mobile DVR,AHD Hard Drive Mobile DVR |
||
Product Description
Car Storage Card AHD1080P4CH Hard Drive Mobile DVR High Definition Video Monitor
4CH Car DVR Specification:
1. Supports H.264/H.265 image compression encoding, 4-channel/100fps @ 1080P PAL,
1 * 25fps @ 1080P PAL, 4-channel/120fps @ 1080P NTSC, 1 * 30fps @ 1080P NTSC
(1080P video single screen 0. 3MB super compression space per hour)
2. Supports 4-channel 1080P/960P/720P/D1 mode audio and video input,
up to 4-channel (1080P/720P/D1) audio and video recording simultaneously
3. Support setting up mirrors. Flip image, mirror flip image
4. The reverse screen supports built-in reverse scale lines (channels can be freely selected)
5. Adopting aviation head video interface, high reliability and strong earthquake resistance effect
6. Built in 3G/4G network, GPS, WiFi module (optional 2.4GHz antenna WiFi,
suitable for high-definition video download, fast speed)
7. Adopting patented power-off protection technology similar to UPS, it can still work for
3-8 seconds even when the external power is cut off, preventing accidental damage to video files (customized)
8. Supports one built-in SD card with a maximum capacity of 512GB.
9. Supports 1 * 2.5 "hard drives with a maximum capacity of 4T and a maximum thickness of 14mm.
10. Good scalability, with 1 RS485 interface (optional) and 1 RS232 interface
The 11.232 serial port can be connected to third-party devices such as oil level,
temperature and humidity, fatigue driving, driver recognition, OBD, number of people, etc.
12.8V-36V wide voltage DC power supply, supporting 12V regulated output power supply
13. Supports hard disk heating technology and can operate at -40 ℃ -+70 ℃
Product Description:

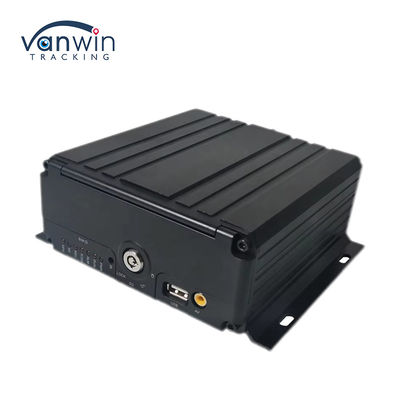

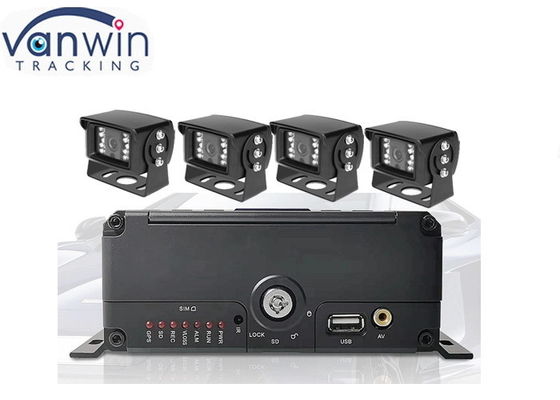

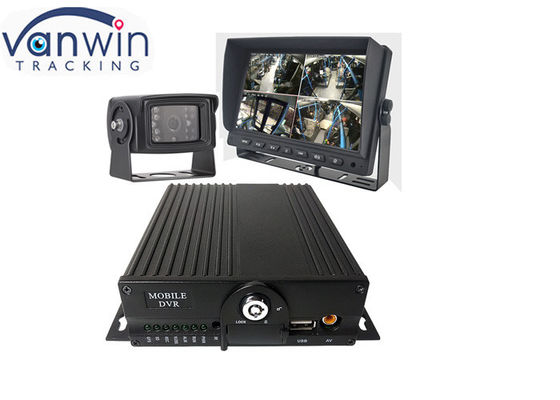

This 4CH MDVR, also known as a 4ch Vehicle recorder, is designed to provide a reliable and secure video surveillance solution for automobiles. It is equipped with a four-channel video output, a network connection of RJ45 10M/100M, an operating system of Linux, an OSD interface for external connection to LCD and remote set up of system specifications, and an audio output of one channel. This Four-Channel-Automotive-Recorder provides a comprehensive and efficient video surveillance solution for automotive applications and is the perfect choice for ensuring the safety and security of your vehicle.
DVR Technical Parameters:
| Operating System | Linux | |
| Language | English, Chinese or Customized language. | |
| Video Compression | H.264 | |
| OSD | Support time, date, vehicle ID, image, etc. | |
| GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote |
|
Video and Recording |
Video Input |

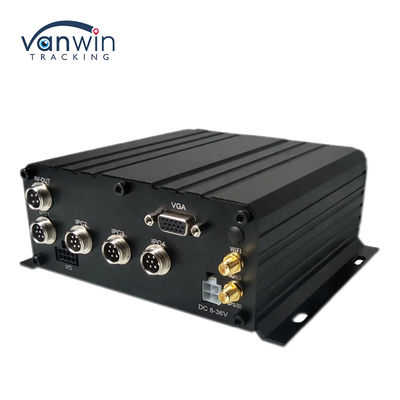

4CH 720P/960P/1080P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
| Video Output |
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 4CH division. |
|
| Preview |
Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing |
|
| Recording Resolution |
Support 1080P/960P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P
|
|
| Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | |
| Video Rate |
PAL:100 fps,CCIR625line,50 scenes NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps,8 grades image quality for optional HD1:600Kbps - 2.5Mbps,8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P:800Kbps - 4Mbps,8 grades image quality for optional |
|
| Recording Mode |
Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc |
|
| Audio | Audio Input | 4CH Aviation connector inputs |
| Audio Output | 1CH Aviation connector output, Output level:1V - 2V | |
| Compression format | G.726, Speed for 8KB/s | |
| Alarm Input | 4CH level alarm inputs | |
| Alarm Output | 1CH level signal output | |
| Communication Interface | Optional for 1CH RS232 or 1CH RS485 | |
| Wireless Transmission |
Support built-in 4G wireless transmission, WCDMA, CDMA2000, Support expansion built-in/external WIFI transmission, compatible with GPRS, EDGE |
|
| Location /G-sensor |
Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route |
|
| Video Storage | Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage |
| Upgrade Method | Support SD card local upgrade, remote upgrade automatically | |
| File Format | H.264 general video format | |
| File System | FAT32 exclusive file system | |
| Video Playback | Video Search | Search recorded video files by recording time and recording method |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Security Management | User Password or administrator password management, support screen locked | |
| Expansion functions | TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function |
| Power and Consumption | Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V@1.5A,+5V@1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
| Working environment | Temperature | -20℃ - +70℃ |
| Humidity | 20% - 80% | |
| SD Card Type Series | Dimension | 150*137*60MM |
| Weight | 1.65KG | |
Support and Services:
Our 4 Channel Mobile DVR is backed by comprehensive technical support and service.
We provide a range of services, from engineering and installation, to training and maintenance.
Engineering and Installation
Our team of experienced engineers can provide customized solutions for the 4 Channel Mobile DVR.
We can provide onsite installation and setup services, including cabling, hardware configuration, and software setup.
Training
We provide comprehensive training for the 4 Channel Mobile DVR, including onsite training and
remote training. Our onsite training covers topics such as installation, operation, maintenance, and troubleshooting.
Maintenance
We provide comprehensive maintenance for the 4 Channel Mobile DVR, including preventive
maintenance, corrective maintenance, and emergency maintenance. We can also provide spare parts and repairs.
Technical Support
Our team of experienced technicians can provide technical support for the 4 Channel Mobile DVR.
Our technicians can provide telephone and email support, as well as remote access support.
FAQ:
Q1: What is the Brand Name of this 4 Channel Mobile DVR?
A1: The Brand Name of this 4 Channel Mobile DVR is Vanwin Tracking.
Q2: What is the Model Number of this 4 Channel Mobile DVR?
A2: The Model Number of this 4 Channel Mobile DVR is VW904.
Q3: Where is this 4 Channel Mobile DVR made?
A3: This 4 Channel Mobile DVR is made in China.
Q4: What certifications does this 4 Channel Mobile DVR have?
A4: This 4 Channel Mobile DVR has CE ROHS certifications.
Q5: What is the minimum order quantity of this 4 Channel Mobile DVR?
A5: The minimum order quantity of this 4 Channel Mobile DVR is 1PC.
