HD 1080P H.264 4 Channel Mobile DVR GPS WIFI Vehicle Bus Car Recorder
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW904 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Power Supply: | DC12V | Compression Standards: | H.264 |
|---|---|---|---|
| Temperature: | -20℃ - +70℃ | Video Output:: | 1 Channel |
| Video Input:: | 4 Channel | Image Resolution: | 1080P/720P |
| Video Bit Rate:: | 800Kbps For 720P Video | Scope Of Application: | All Models |
| Communication Interface: | Standard Aviation Head/VGA | ||
| Highlight: | HD 1080P Mobile DVR,4 Channel Mobile DVR,GPS WIFI Vehicle Bus Car Recorder |
||
Product Description

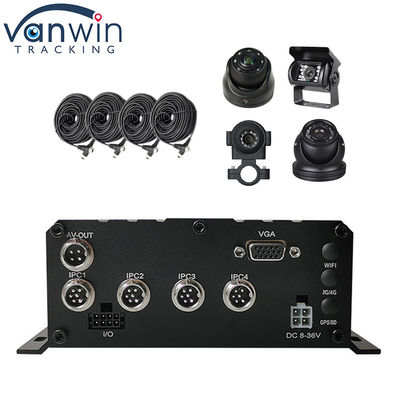

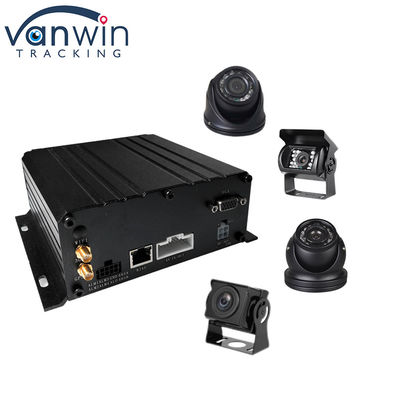

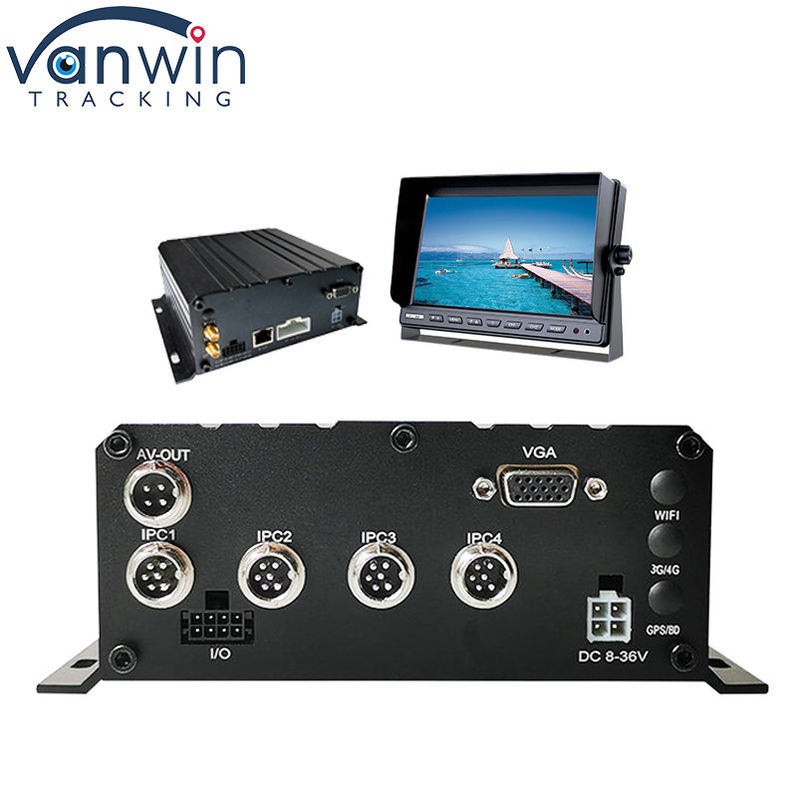

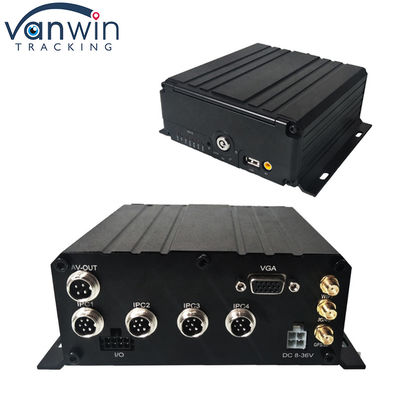

HD 1080P H.264 4 Channel Mobile DVR GPS WIFI Vehicle Recorder
1. Basic situation:
The vehicle power supply is designed with 8-32V DC wide voltage input
Multiple protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various models Support intelligent power management identification, automatic shutdown at low power, low power consumption when turned off.
Use special file management mechanism to encrypt data and effectively protect data security. Proprietary disk bad sector detection technology ensures recording continuity and extends disk life. Built-in super capacitor to avoid abnormal power failure data loss and disk damage.
Support 2.5-inch hard disk, up to 2TB.
Support SD storage, up to 512G.
Support automatic hard disk heating (customized).
Support GPS/BD positioning, high sensitivity, fast positioning
Support WIFI wireless download, support 802.11B/G/N, frequency 2.4GHZ
Built-in 3G/4G module, support LTE/HSUPA/HSDPA/WCDMA/EVDO.
Parameters:
| File System | FAT32 exclusive file system | |
|
Video Playback |
Video Search | Search recorded video files by recording time and recording method |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Security Management | User Password or administrator password management, support screen locked | |
|
Expansion functions |
TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function |
|
Power and Consumption |
Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V@1.5A,+5V@1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
| Working environment | Temperature | -20℃ - +70℃ |
| Humidity | 20% - 80% | |
|
SD Card Type Series |
Dimension | 150*137*60MM |
| Weight | 1.60KG |
|
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
