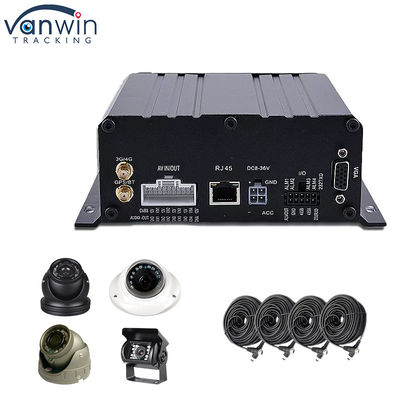

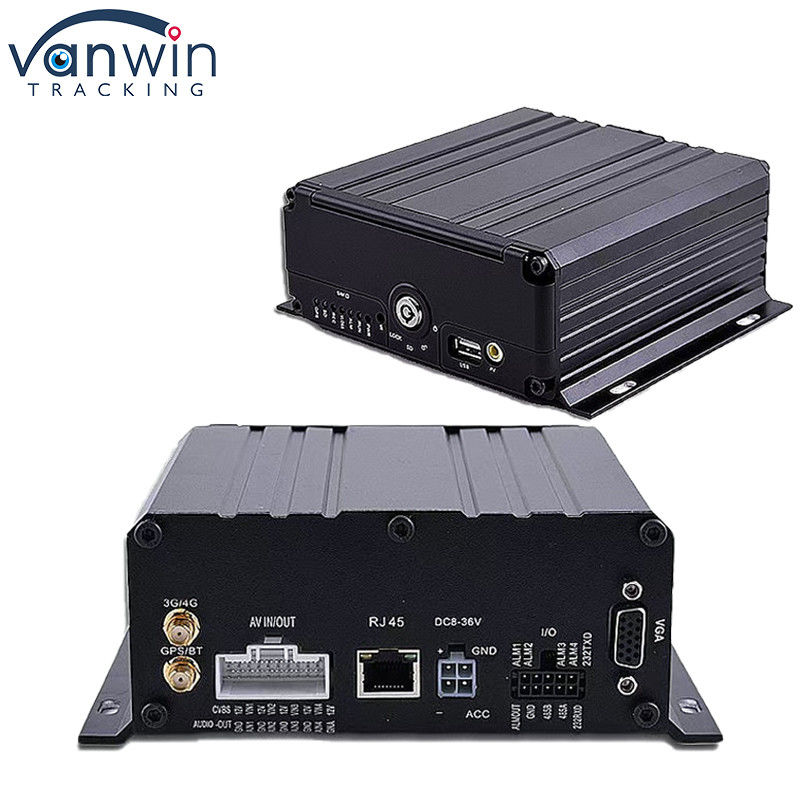

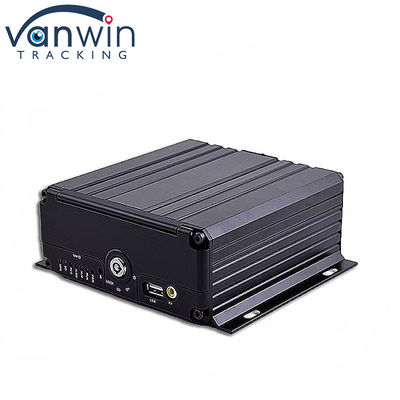

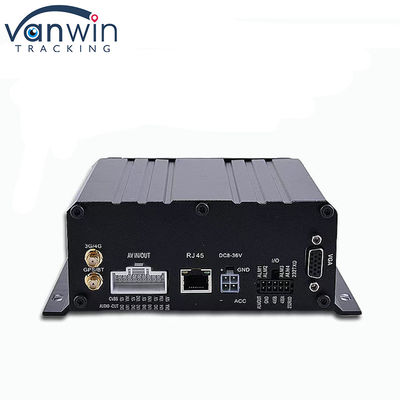

1080P H.264 AHD 256GB 4CH Car Mobile DVR GPS SD Card Bus Truck Car Recorder
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9034BGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Input Voltage: | DC:+8V - +36V | Output Voltage: | +12V@1.5A，+5V@1.5A |
|---|---|---|---|
| Temperature: | -20℃ - +70℃ | Video Compression Format: | H.264 Compression Mode |
| Weight: | 1.65KG | Alarm Input: | 4 Level Alarm Inputs |
| Alarm Output: | 1 Level Signal Output | Certification: | CE/FCC/RoHS |
| Communication Interface: | Optional 1 RS232 Or 1 RS485 | ||
| Highlight: | GPS Car Mobile DVR,256GB Car Mobile DVR,4CH Car Mobile DVR |
||
Product Description
1080P H.264 AHD 265GB 4CH Car DVR GPS SD Card Bus Truck Car Recorder
1. HiSilicon video solution, H.264 compression mode, multi-stream recording, providing 720P million HD video recording effect. Supports 4-channel real-time 1080P
million AHD high-definition input/4-channel analog standard-definition camera input/2-channel high-definition + 2-channel standard-definition mixed input;
2. Real-time high-definition recording, recording 1080P/720P/D1/HD1/CIF optional, frame rate and picture quality adjustable;
3. Optional VGA output;
4. Professional vehicle power supply design, 8-36V DC wide voltage input; multiple protection circuits such as overloadundervoltageshort circuitreverse connection, suitable for various vehicles;
5. Provides 12VDC/3Amp power output, which can provide constant voltage power supply for multiple peripheral devices such as cameras and small screens;
6. SD card records data (can support 1 2T2.5-inch hard disk and 1 large-capacity SD card, maximum support 256G), which can completely resist data damage caused by vibration and dust on the car, allowing the product to adapt to harsh road conditions that most products cannot adapt to;
7. The watchdog abnormal restart function protection can better protect the machine and video;
8. Exclusive pre-allocated vehicle-specific file system technology solves the problem of file fragmentation caused by repeated erasure and ensures data integrity;
9. Flame-out delay recording function (the time can be set up to 24 hours);
10. Automatic recording, manual recording, alarm recording and other recording methods to meet different needs;
11. Display and record vehicle information such as vehicle driving status, license plate, route, ultra-low speed, etc. for easy management;
12. Optional single-channel RS232 serial port or single-channel RS485 expansion;
13. 4-channel alarm input (open and close doors, lights, steering, brakes, reversing and other types can be configured), which can be linked to multiple responses;
14. 1-channel alarm output;
15. Highly reliable aviation head video input and output interface, easy to install and plug, and stronger anti-seismic performance;
16. The system interface is smooth to operate, intuitive and perfect;
17. Software upgrades can be performed remotely via SD card and U disk;
18. Batch functions can be customized according to customer requirements.
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
