AI 4CH Car Recorder With GPS DVR 1080p Mobile DVR Car DVR Video Recorder

AI 4CH Car Recorder With GPS DVR 1080p Mobile DVR Car DVR Video Recorder

Product Details:

Place of Origin: Guangdong,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-M9208-AI
Document: 8ch 1080p hdd mobile dvr 20...24.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,0000 pcs per month
Get Best Price Contact Now

Detail Information
Product Name: Full Hd 4CH AI Car MDVR Product Features: Equipped With GPS High-precision Driving Recorder DVR
Video Standard: PAL: 100 Frames Per Second, CCIR625 Line, 50 Fields Compression: G.711A Compression, 8KB/s Speed
Wireless Transfer: Built-in 4G Network Wireless Transmission, TD-LTE, FDD-LTE Position: Support Built-in GPS/BD Module, Can Report To The CMSV7 Standard Platform
Power Consumption: Normal Working ＜5W Temperature: -20℃ To +70℃
Humidity: 20% To 80% Voltage Input: DC:+12V ~ +36V
Highlight:

GPS AI Car Recorder

,

1080p AI Car Recorder

,

Mobile DVR Car DVR Video Recorder

Product Description

AI 4CH Car Recorder With GPS DVR 1080p Mobile DVR Car Dvr Video Recorder



Car AI MDVR Main Features:
1. H.264/H.265 Compression,support 4CH/ 8CH Real time 1080P,D1,720P 1080P HD adaptive
input(Automatically match camera to work without manual adjustment)；Multiple modes can be mixed
and combined. The HDD MDVR IPC 4CH is expandable 4AHD+4IPC; 8CH expandable 8AHD+4IPC.
2. 2CH video output (1CH CVBS video AV output, 1CH VGA output.)
3. Advanced bare disk+pre-partitioned storage technology solves the problem of easy damage caused
by uneven disk writing, resolves the issue of file fragmentation caused by repeated erasures, solves
the problems of data loss caused by storage file system crashes, inability to find storage, and file
garbled characters, solves the problem of data loss caused by time lapse, ensures data integrity and
effectiveness, and uses dedicated storage methods to solve data confidentiality issues.
4. 12V-36V adaptive wide voltage input with ultra-low power consumption design.
5. Unique UPS Technology ensures the integrity of record and data is not damaged in case of
emergencies such as abnormal power failure, the DVR still could work for 5-10 seconds and the
entire event process can be saved in a timely manner.
6. SD card+hard drive storage: SD card supports up to 512GB, hard drive supports mechanical or
solid-state drives, and supports up to 2TB.
7. Support multiple storage strategies such as multi disk circular storage, backup storage for disk loss,
and small stream image storage; SD card can be used as a mirror for recording, recording together
with the hard drive to achieve dual recording, ensuring the integrity of the recording and ensuring
foolproof performance
8. Supports USB interface, data backup and device upgrade
9. Support GPS/BD/G-Sensor module expansion; Remote monitoring (real-time video, monitoring,
intercom, broadcasting, video query, playback, download) can be achieved through 3G/4G/WIFI.
10. Support JT808 and JT1078 standard protocols; Support remote configuration/remote control of
devices.
11. Support PTZ control; Supports text scheduling and delivery.
12. Expandable oil sensor, temperature sensor, card reader, LED advertising screen, OBD, etc
13. Support IOS/Android mobile phone remote monitoring &management; Support multi-screen display
mode.
14. High reliability aviation interface, easily installation, more cost-effective, stable and reliable.
15.Expansion can be added: fatigue driving warning DSM+ road driving warning ADAS+ blind area
warning BSD function((Fatigue driving, Driver face recognition,phone calls, smoking, front vehicle
collision warning, lane deviation warning, etc.)

4 camera vehicle dvr video recorder:
Specification
Item specification
OS Linux
Language Chinese/English/Russian/Others (can be customized)
Video Compression H.265 H.264
OSD Character overlay function,Overlays information such as date time and vehicle ID
GUI Graphical User Interface System parameters can be set through an external display screen and remote control operation
Video Record System Video Input 4CH:1080P,720P,D1
8CH:1080P,720P,D1
Video Output 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels
Preview support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function
Resolution Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel.
Video Quality 0-8 levels video recording available, 0 is the best level, 8 is the lowest level.
Video Standard PAL: 100 frames per second, CCIR625 line, 50 fields
NTSC: 120 frames per second, CCIR525 line, 60 fields;
CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional;
HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional;
D1: 800Kbps ~ 3Mbps, multi levels video quality optional;
720P : 1Mbps~2Mbps, multi levels video quality optional;
1080P: 1Mbps~4Mbps, multi levels video quality optional;
Record Mode Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc
Audio Audio Input 4 or 8 channel aviation Plug
Audio Output 1channel
Compression G.711A compression, 8KB/s speed
Alarm Input 4CH IO Alarm Input, pulse speed input,support alarm linkage function
Alarm Output 2-channel switch output, linked with sound and light alarm, oil and power outage, etc
Communication Interface 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc
1CH 485 interface, can connect PTZ,etc.
Wireless transfer Built-in 4G network wireless transmission, TD-LTE, FDD-LTE
Position Support built-in GPS/BD module, can report to the CMSV7 standard platform
Storage Storage SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB.
Update Mode Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade
Storage Mode Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry
USB Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video
Video Playback Video Search Search video by Record Time/Record Mode etc
Playback Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind
Support x 2,x4,x8,x16. fast forward or fast backward play
Voltage &Power Consumption Power Management Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection;
Support timed power on/off and delayed shutdown functions.
Voltage Input DC:+12V ~ +36V
Voltage Output +12V@2.5A,+5V@2A
Power Consumption Normal Working ＜5W
Working Environment Temperature -20℃ to +70℃
Humidity 20% to 80%
Safety Management Password Access Two level management of user password and administrator password
others Size 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H)
  Net Weight 2.5 Kg

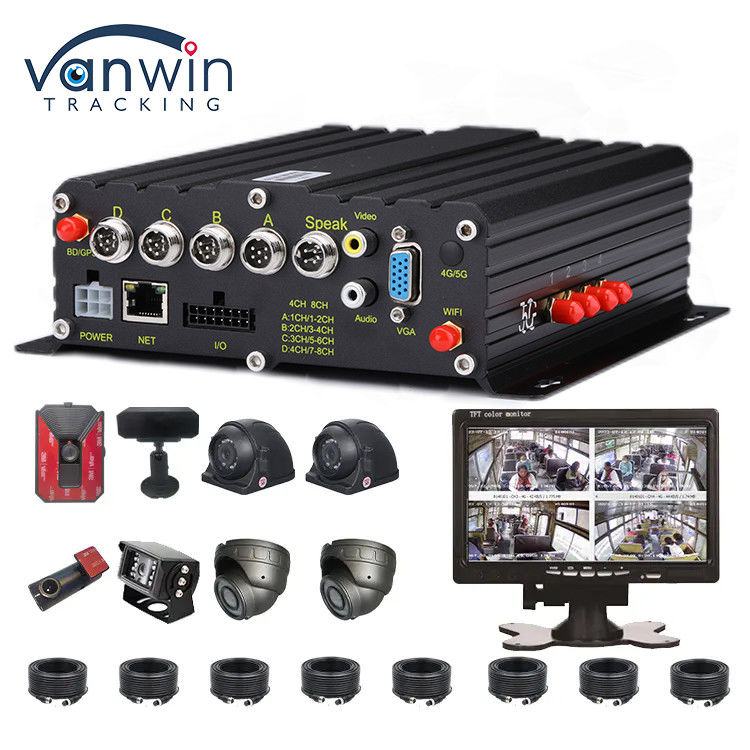

full hd 1080p car dvr scenario application:



4CH/8CH 1080P H.265 HHD Mobile DVR AI Driving Recorder Video Recorder 0

AI 4CH Car Recorder With GPS DVR 1080p Mobile DVR Car DVR Video Recorder 1

AI 4CH Car Recorder With GPS DVR 1080p Mobile DVR Car DVR Video Recorder 2



Our highlights Car auto parts:

Our AI MDVR such as ADAS DMS BSD, are at the forefront of the times. In 2018, we launched them on the market and began mass production, receiving very high praise in South America. Customers love the AI features and effects, and continue to return a large number of orders. Through the introduction of old customers and our promotion, our products are exported to Europe, the United States, and Southeast Asia. We are very confident that our product and technology updates&upgrades will bring you and your customers more experiences! Our 5G technology is world leading (only suitable for countries that can run 5G), and our customization, functionality, and quality can compete with big brands. Most importantly, we can provide better prices and services than any of them! Welcome to test and learn more.

AI 4CH Car Recorder With GPS DVR 1080p Mobile DVR Car DVR Video Recorder 3

Car DVR FAQ

1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.

2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.

4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!
