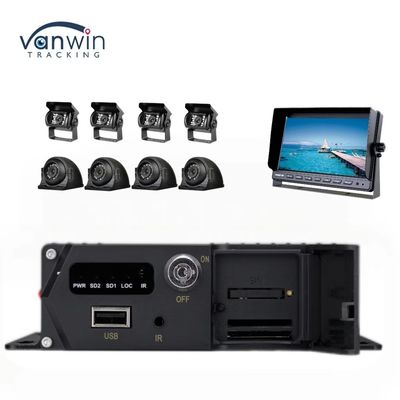

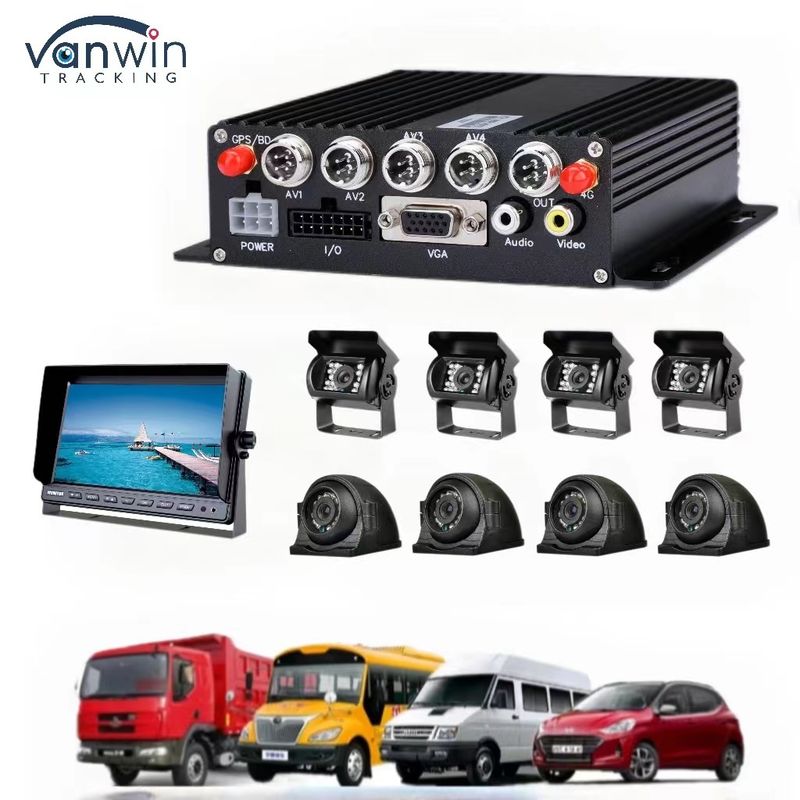

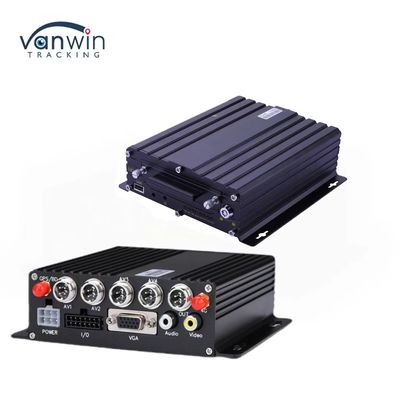

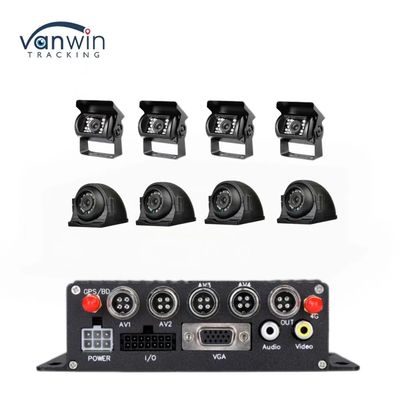

8CH 1080P H.265 HD GPS Vehicle Mobile DVR Recorder with 12V 2.5A and 5V 2A Output
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M9208-AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Power Consumption: | Normal Working ＜5W | Voltage Output: | +12V@2.5A，+5V@2A |
|---|---|---|---|
| Humidity: | 20% To 80% | Password Access: | Two Level Management Of User Password And Administrator Password |
| Video Input: | 8CH：1080P、720P、D1 | Audio Input: | 8 Channel Aviation Plug |
| Video Compression: | H.265 H.264 | OS: | Linux |
| Highlight: | 8CH Vehicle Mobile DVR Recorder,HD GPS Vehicle Mobile DVR Recorder,1080P H.265 Vehicle Mobile DVR Recorder |
||
Product Description
1080P H.265 8CH HD GPS Recorder Vehicle Mobile DVR
Advantages of 8CH Mobile HD DVR
1. Comprehensive Monitoring Capability: With support for eight channels, it allows for extensive surveillance of multiple areas, suitable for larger vehicles or complex environments.
2. High-Quality Video Output: Offers HD video recording, ensuring clear playback and analysis, helping to identify and investigate incidents effectively.
3. Enhanced Durability: Built to withstand vibrations, shocks, and temperature changes, designed for mobile applications, it operates reliably in various harsh conditions, increasing overall reliability.
4. Real-Time Response Capability: The real-time monitoring feature enables quick responses to emergencies, enhancing safety and security.
5. Flexible Management Options: Remote access capabilities allow users to easily manage video data from anywhere, providing convenience and flexibility.
6. Accurate Location Tracking:Integrated GPS functionality enables real-time vehicle location tracking, enhancing fleet management and security, improves vehicle management and allows for optimized routing and monitoring.
7. Diverse Storage Solutions: Flexible storage options enable users to select the most suitable media for their needs, accommodating different storage requirements.
8. Efficient Data Management: Advanced compression technologies reduce storage needs while maintaining video quality, making it cost-effective.
9. Intelligent Event Recording: Alarm and event management features enhance the system's intelligence, automatically handling incidents as they occur.
10. Stable Power Supply: The power management system ensures stable operation during extended use, protecting the vehicle's battery.
Our highlights:
8CH SD Mobile DVR Car Camera
Our AI MDVR such as ADAS DMS BSD, are at the forefront of the times. In 2018, we launched them on the market and began mass production, receiving very high praise in South America. Customers love the AI features and effects, and continue to return a large number of orders. Through the introduction of old customers and our promotion, our products are exported to Europe, the United States, and Southeast Asia. We are very confident that our product and technology updates&upgrades will bring you and your customers more experiences! Our 5G technology is world leading (only suitable for countries that can run 5G), and our customization, functionality, and quality can compete with big brands. Most importantly, we can provide better prices and services than any of them! Welcome to test and learn more.
| Specification | ||
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Russian/Others (can be customized) | |
| Video Compression | H.265 H.264 | |
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
| 720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
| 1CH 485 interface, can connect PTZ,etc. | ||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |
| Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB. |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. | ||
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@2.5A,+5V@2A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
| Net Weight | 2.5 Kg | |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
