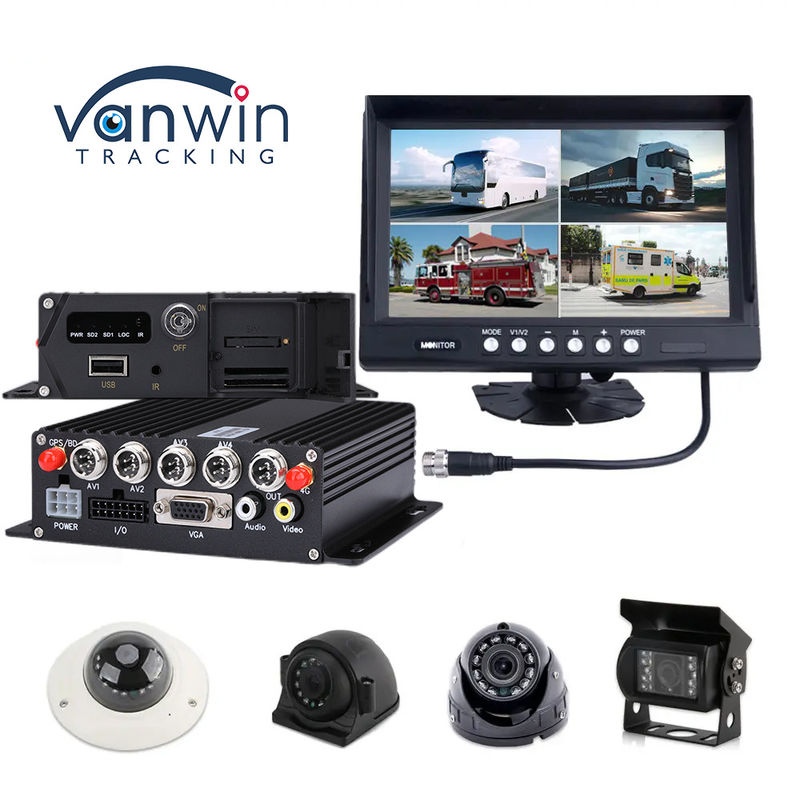

AI MDVR 4CH 1080P H.265 HHD Mobile DVR Dashcam Recorder GPS Mobile
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M9208-AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Pruduction Name: | Dashcam Recorder DVR | Video Compression: | H.265 H.264 |
|---|---|---|---|
| Video Input: | 4CH：1080P、720P、D1 | Audio Input: | 4 Or 8 Channel Aviation Plug |
| Audio Output: | 1channel | Compression: | G.711A Compression, 8KB/s Speed |
| Voltage Input: | DC:+12V ~ +36V | Voltage Output: | +12V@2.5A，+5V@2A |
| Highlight: | AI MDVR 4CH 1080P,HHD Mobile DVR Dashcam Recorder,GPS Mobile DVR Dashcam Recorder |
||
Product Description
AI MDVR 4CH 1080P H.265 HHD Mobile DVR Dashcam Recorder GPS Mobile
vehicle camera dvr Main Features:
1. H.264/H.265 Compression,support 4CH/ 8CH Real time 1080P,D1,720P 1080P HD adaptive input(Automatically match camera to work without manual adjustment)；Multiple modes can be mixed and combined. The HDD MDVR IPC 4CH is expandable 4AHD+4IPC; 8CH expandable 8AHD+4IPC.
2. 2CH video output (1CH CVBS video AV output, 1CH VGA output.)
3. Advanced bare disk+pre-partitioned storage technology solves the problem of easy damage caused by uneven disk writing, resolves the issue of file fragmentation caused by repeated erasures, solves the problems of data loss caused by storage file system crashes, inability to find storage, and file garbled characters, solves the problem of data loss caused by time lapse, ensures data integrity and effectiveness, and uses dedicated storage methods to solve data confidentiality issues.
4. 12V-36V adaptive wide voltage input with ultra-low power consumption design.
5. Unique UPS Technology ensures the integrity of record and data is not damaged in case of emergencies such as abnormal power failure, the DVR still could work for 5-10 seconds and the entire event process can be saved in a timely manner.
6. SD card+hard drive storage: SD card supports up to 512GB, hard drive supports mechanical or solid-state drives, and supports up to 2TB.
7. Support multiple storage strategies such as multi disk circular storage, backup storage for disk loss, and small stream image storage; SD card can be used as a mirror for recording, recording together with the hard drive to achieve dual recording, ensuring the integrity of the recording and ensuring foolproof performance
8. Supports USB interface, data backup and device upgrade
9. Support GPS/BD/G-Sensor module expansion; Remote monitoring (real-time video, monitoring, intercom, broadcasting, video query, playback, download) can be achieved through 3G/4G/WIFI.
10. Support JT808 and JT1078 standard protocols; Support remote configuration/remote control of devices.
11. Support PTZ control; Supports text scheduling and delivery.
12. Expandable oil sensor, temperature sensor, card reader, LED advertising screen, OBD, etc
13. Support IOS/Android mobile phone remote monitoring &management; Support multi-screen display mode.

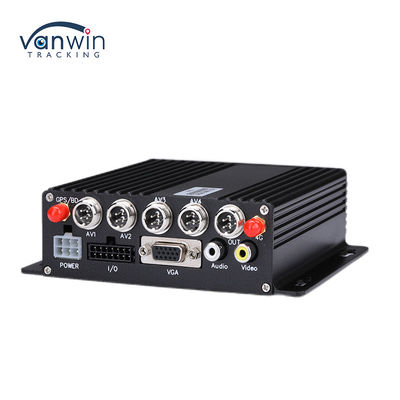

14. High reliability aviation interface, easily installation, more cost-effective, stable and reliable.
Expansion can be added: fatigue driving warning DSM+ road driving warning ADAS+ blind area warning BSD function((Fatigue driving, Driver face recognition,phone calls, smoking, front vehicle collision warning, lane deviation warning, etc.)
| Specification | ||
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Russian/Others (can be customized) | |
| Video Compression | H.265 H.264 | |
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
| 720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
| 1CH 485 interface, can connect PTZ,etc. | ||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |

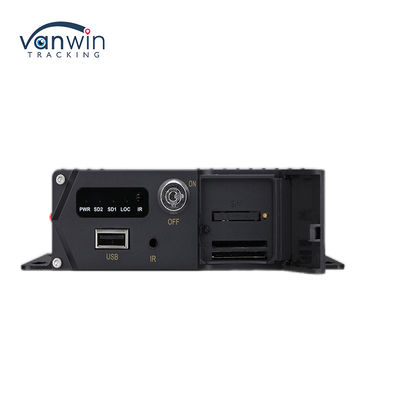

| Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB. |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |

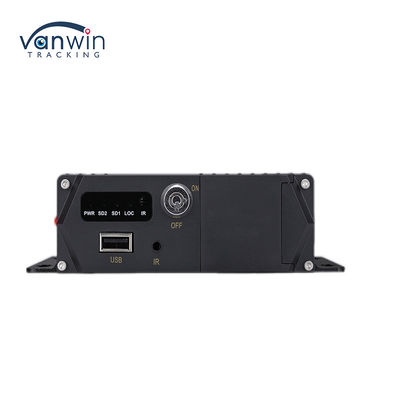

| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. | ||
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@2.5A,+5V@2A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
| Net Weight | 2.5 Kg | |
Hd Dvr Car Camera Our highlights:
Our AI MDVR such as ADAS DMS BSD, are at the forefront of the times. In 2018, we launched them on the market and began mass production, receiving very high praise in South America. Customers love the AI features and effects, and continue to return a large number of orders. Through the introduction of old customers and our promotion, our products are exported to Europe, the United States, and Southeast Asia. We are very confident that our product and technology updates&upgrades will bring you and your customers more experiences! Our 5G technology is world leading (only suitable for countries that can run 5G), and our customization, functionality, and quality can compete with big brands. Most importantly, we can provide better prices and services than any of them! Welcome to test and learn more.
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
