AI 8 Channel 1080P 512G Dual SD Card Car MDVR Camera System With ADAS DMS Fatigue Driving Detection Function Mobile DVR
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW628 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | AI Car Video Recorder DVR | Sensor: | CMOS |
|---|---|---|---|
| Data Storage Options: | SD Card | Video Compression Format: | H.265 |
| Video Resolution: | 1080P/960P/720P/ D1 | Video Compression: | H.265 Main Profile |
| Power Supply: | DC 8-36V | Software Platform: | CMSV6 |
| Alarm Input: | 8CH Alarm Inputs | Recording Mode: | Video&Audio Recording Synchronously |
| Highlight: | 512G AI MDVR,1080P AI MDVR,Dual SD Card AI MDVR |
||
Product Description
AI 8-channel 1080P 512G dual SD card car MDVR camera system with ADAS DMS fatigue driving detection function mobile DVR
Car MDVR Camera Products Description
1. 265video compression, multi code stream.
2. Support 8CH 1080P/960P/720P HD real-time video inputs. Also, support 8CH analog cameras inputs..
3. 1CH VGA output is optional.
4. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems
which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
5. 8-36V wide voltage power supply, super low power consumption. With overload/ under voltage/ short-circuit/
reversing protection, support all vehicles.
6. Support dual SD cards, at maximum 512G for single SD card
7. With watchdog abnormal restart protection function, it can better protect the machine and video.
8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
9. Various video recording modes to meet different demands, such as automatic recording, manual recording,
alarm recording, etc.
10. Support 8CH alarming inputs and 1CH independent alarm input.
11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.
12. Support GPS/G-Sensor.
13. Support remote operation and monitoring by 4G.
14. Support Wi-Fiand automatic data download.
15. Support ministry of communications agreement, support SMS remote configuration and equipment control.
16. Support voice broadcast, intercom and text schedule dispatch.
17. Support fuel sensor, temperature sensor, POS, LED advertising screen.
18. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
19. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
20. Support all vehicles, including bus, taxi, truck, school bus, etc.
ADAS DMS Car MDVR Camer Specification
|
Operating System
|
Linux
|
|
|
Language
|
English, Chinese or Customized language.
|
|
|
Video Compression
|
H.265
|
|
|
OSD
|
Support for time, date, vehicle ID, image, etc.
|
|
|
GUI
|
OSD Interface
|
Can external connect to LCD and set the system specifications by remote
|
|
Video and Recording |
Video Input
|
8CH 1080P/960P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω
|
|
Video Output
|
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 8CH division. |
|
|
Preview
|
Single/8CH Pictures Preview, support full screen of event trigger or
back view of car reversing |
|
|
Recording Resolution
|
Support 1080P/960P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P
|
|
|
Recording Quality
|
Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
|
|
|
Video Rate
|
PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps,8 grades image quality for optional HD1:600Kbps - 2.5Mbps,8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P:800Kbps - 4Mbps,8 grades image quality for optional 1080P:2Mbps - 6Mbps,8 grades image quality for optional |
|
|
Recording Mode
|
Default automatic video recording, support ignition video recording,
schedule video recording, alarm video recording, etc |
|
|
Audio
|
Audio Input
|
8CH Aviation connector inputs
|
|
|
Audio Output
|
1CH Aviation connector output, Output level:1V - 2V
|
|
|
Compression format
|
G.726, Speed for 8KB/s
|
|
Alarm Input
|
8CH level alarm inputs
|
|
|
Alarm Output
|
1CH level signal output
|
|
|
Communication Interface
|
Optional for 1CH RS232 or 1CH RS485
|
|
|
Wireless Transmission
|
Support built-in 4G wireless transmission, WCDMA, CDMA2000,
Support expansion built-in/external WIFI transmission, compatible with GPRS, EDGE |
|
|
Location /G-sensor
|
Support built-in GPS/BD module, built-in G-sensor, can analysis and playback
for vehicle driving route |
|
|
Video Storage |
Storage
|
Support at maximum 2*512G high capacity SD card
|
|
|
Upgrade Method
|
Support SD card local upgrade, remote upgrade automatically
|
|
|
File Format
|
H.265 general video format
|
|
|
File System
|
FAT32 exclusive file system
|
|
Video Playback
|
Video Search
|
Search recorded video files by recording time and recording method
|
|
|
Playback
|
Support at max 8 channel synchronous playback, suspend, forward, backward
|
|
|
|
Support 2/4/8/16 times speed forward or backward
|
|
Security Management
|
User Password or administrator password management, support screen locked
|
|
|
Expansion functions
|
TTS Voice broadcast
|
Support TTS voice broadcast
|
|
|
Series port expansion
|
Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc
|
|
Power and
Consumption |
Power Management
|
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc
Support time setting startup/shutdown, delayed power off function |
|
Power and Consumption
|
Input Voltage
|
DC:+8V - +36V
|
|
|
Output Voltage
|
+12V@1.5A,+5V@1.5A
|
|
|
Power-off Protection
|
UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
|
|
|
Consumption
|
Normal working < 14W, standby < 0.5W
|
|
Working environment
|
Temperature
|
-20℃ - +70℃
|
|
|
Humidity
|
20% - 80%
|
|
SD Card Type Series
|
Dimension
|
140*116*40MM
|
|
|
Weight
|
1.1KG
|

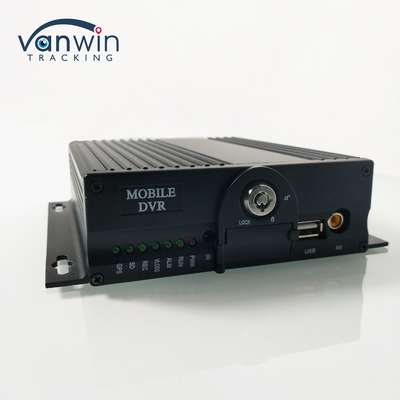

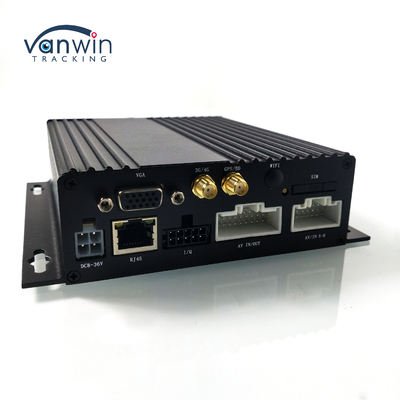

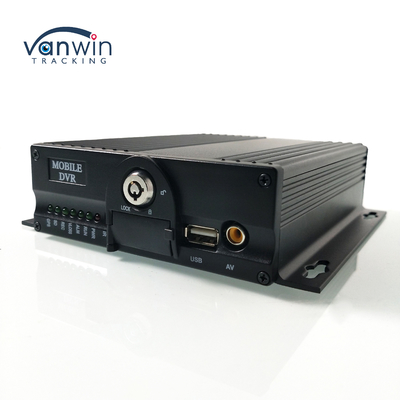

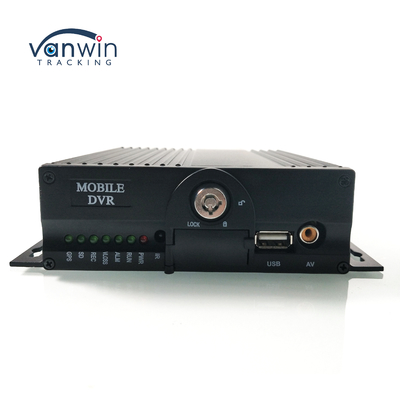

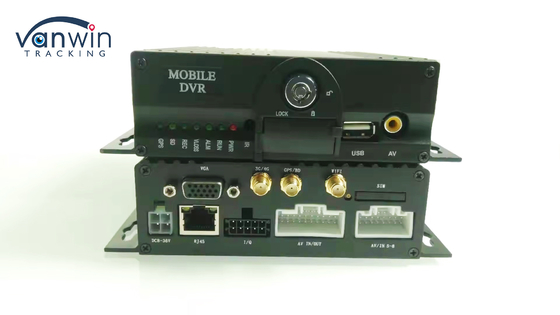

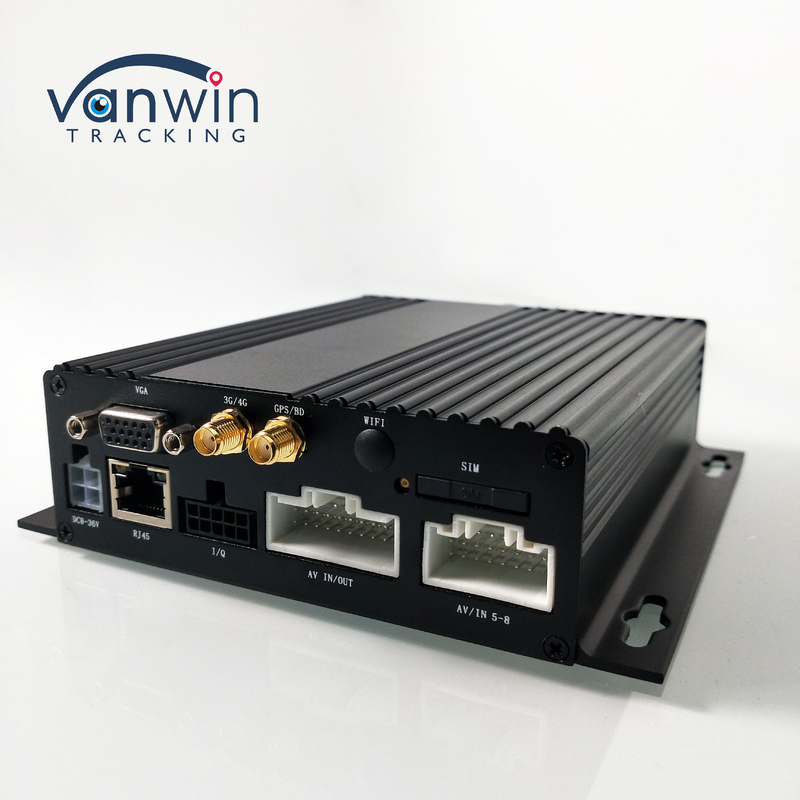

Ai Video Recorder Details Images
Specification-ADAS
Advanced driver assistance system, or ADAS for short, is an active safety technology that can use AI algorithms for intelligent
image analysis. Using the MDVR (built-in AI algorithm ) and AHD Cameras collects environmental data inside and outside the car at
the first time, and performs technical processing such as the identification, detection and tracking of static and dynamic
objects, so that the driver can detect the potential in the shortest time danger, prevent traffic accidents.
Main Functions of ADAS
Forward Collision Warning (FCW)
---At a faster driving speed, the potential collision risk is judged by sensing and calculating the relative distance and relative
speed of the vehicle from the preceding vehicle during driving, and an alarm will be immediately issued.
Lane Departure Warning(LDW)
---Lane Departure Warning, through the ADAS algorithm, senses the road environment information ahead, judges the behavior of the
vehicle leaving the lane, and promptly reminds the driver, and informs the driver when leaving the original lane in an unconscious
situation (without turning lights) An alarm is issued to prevent possible traffic accidents due to lane departure.
Headway Monitoring Warning(HMW)
---Headway Monitoring Warning monitors the real-time distance between the car and the front car in real time by sensing and
calculating the distance and absolute speed of the car and the front car during driving. Early warning alarm is issued to remind
the driver to pay attention to the distance between the car and the car and avoid rear-end collision.
