1080p 4 Channel Mobile DVR Hdd 4g Mdvr Gps Wifi Bus Taxi Truck School Bus Mdvr
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9204 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V Wide Voltage | Camera Installtion: | Front/side/rear/indoor Optional |
|---|---|---|---|
| Basic Function: | 4 Cameras Monitoring With 3G Real Time,GPS Tracking, WIFI Download | Software Support: | All Softwares, Like Client,server,playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | Resolution: | 1080P/960P/720P/D1/CIF, Max 4CH 720P Recording |
| Alarm: | 4CH Alarm Inputs, 2CH Alarm Output | Own Software/Platform: | Yes |
| 3G 4G GPS WIFI: | Optional | ||
| Highlight: | WIFI 1080p Mobile Dvr,4 Channel 1080p mobile dvr,Hdd 4g Mdvr |
||
Product Description
4 channel 1080p mobile dvr hdd 4g mdvr gps wifi bus taxi truck school bus mdvr
VW9204 is a cost-effective and high extendibility Mobile Digital Video Recrder(MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI. It supports 1080p,720p,D1,resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.
Datasheet

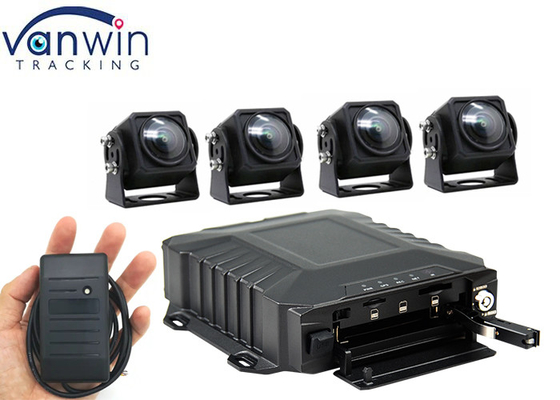

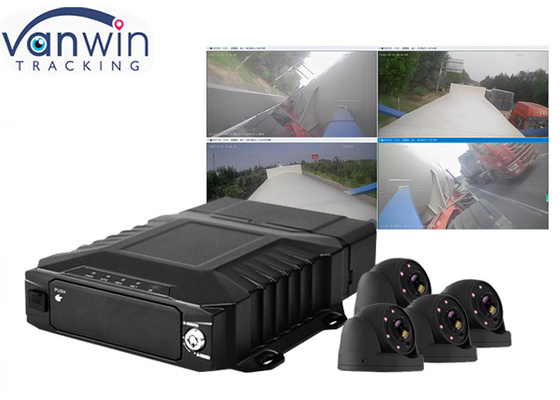

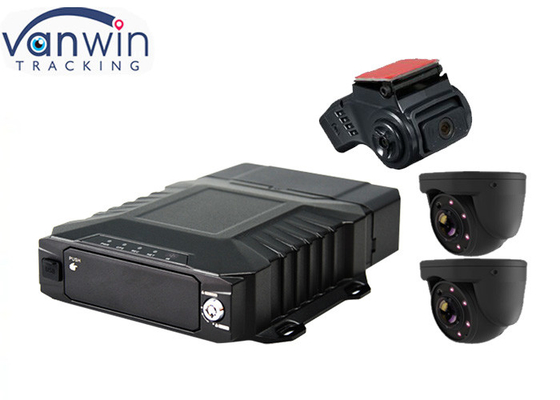

Product Picture

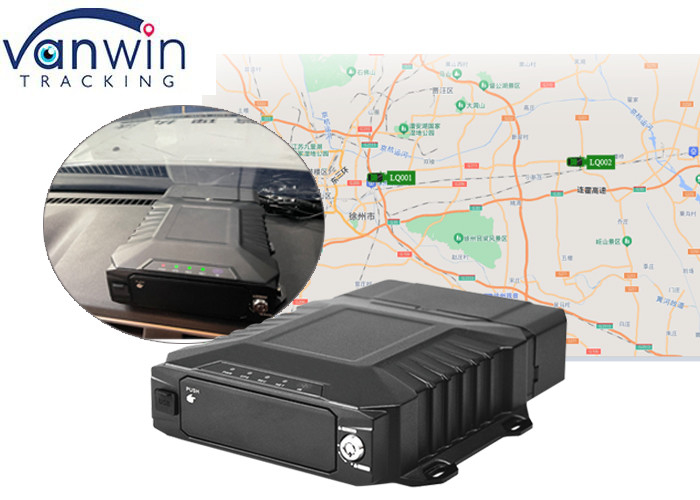

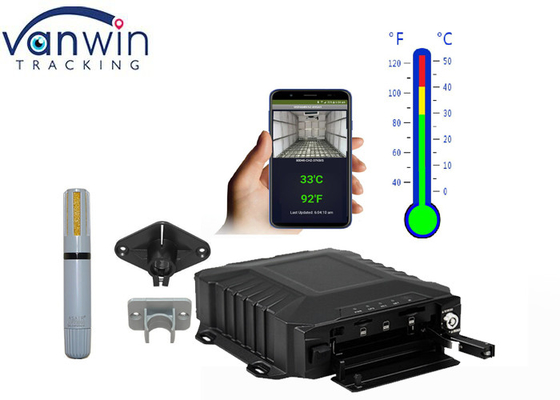

Product Installation and Application
FAQ
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
