ADAS DSM BSD 4G WIFI AI MDVR Driver Fatigue Detection Mobile Car Mini DVR 3CH
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-D13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Type: | Mini AI MDVR | Power Input: | 8-36V DC |
|---|---|---|---|
| 4G GPS WIFI: | Support | ADAS Camera: | Support, 720P |
| DMS Camera: | Support, 720P | BSD: | Optional |
| Alarm Input: | 4CH | Alarm Output: | 1CH |
| Storage Card: | SD+TF Card | Network Interface: | RJ45/WIFI/3G/4G |
| Network Protocol: | TCP/IP/PPPoE/DHCP/FTP/DNS/DDNS/NTP/UPnP | Recording Mode: | Continuous/Alarm/Motion Detection |
| Video Compression: | H.264/H.265 | Video Resolution: | 1080P/720P/D1/CIF |
| Highlight: | BSD 4G WIFI AI MDVR,Mobile Car Mini DVR 3CH |
||
Product Description
ADAS DSM BSD 4G WIFI AI MDVR Driver Fatigue Detection Mobile Car Mini DVR 3CH
This model supports DSM (driver status monitoring) and ADAS (advanced driving assistant system ). BSD (blind spot detection) is under development. Will be a smart mini tool for your fleet management.
1. DSM camera also main host terminal, 4 channels HD video inputs with H.264 compression mode.
2. Strong AI chip with 1.0T computing ability, neuron logical analysis mode, deep learning algorithm.
Main functions:
3. DSM [Driver State Monitor]: give reminder to driver, send event data and even evidence to platform for behaviors like: fatigue driving (eye close, yawning), distraction, smoking, making a call, etc.
4. Facial recognition: recognize driver for checking attendance and avoiding unauthorized/certificated driver to take the drive.
5. ADAS [Advanced Driving Assistant System]: Support FCW(Forward collision warning), HWM(Headway monitoring), LDW(Lane departure warning), etc.
6. Integrated high-sensitivity 1MIC, 1ch audio input to optional recording and intercom ; integrated 1 speaker, TTS audio broadcast and efficient warning prompts.
7. Built-in G-SENSOR module, realize automatic alarm upload of abnormal vibration, rollover, impact and sudden braking
8. Support GPS/BD tracking module to realize the management of speed, position, time and route.
9. Support positioning module abnormality and antenna abnormality alarm
10. Integrated 4G, WIFI module, for remote monitoring management and system configuration, maintenance.
11. Support multiple platforms, web and app for monitoring at any time, anywhere.
*BSD function and Driver physiological state detection are under development
12. *BSD [Blind Spot Detection]: Detection pedestrian, bicycler or motorcycle the blind area of HGV.
13. *Driver physiological state detection: High accurate mode for fatigue driving detection. Adopts physiological detection radar to monitor driver’s heartbeats and breathe without contact. Can give early alarm to abnormal body state of driver to avoid serious accidents.
14. Adopts ABS material, super mini size, industrial structure for safety of data card, SIM card and port connection.
15. Good heat-dissipation design, can work under max 75 Celsius degree.
16. Neat wire, scientific installation diagram design, save installation time and cost. Just need 1/20 of normal installation time.

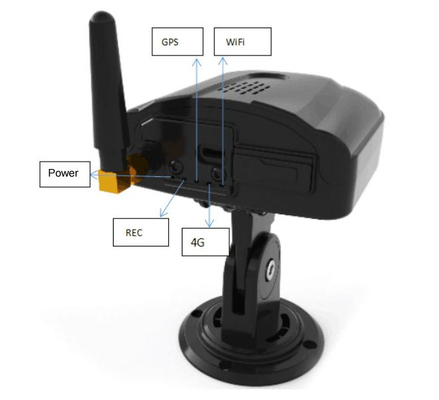

17. With 5 status indicators, to control status of the device easily
18. Optional 1 alarm button to emergency and snapshot picture, save up to 16 lines for alarms entering and leaving the area.
19. 8V~36V adaptive wide voltage input, ultra-low power consumption. Support reverse connection protection, voltage overcurrent and overload protection, support 12V power output
20. Support dual card (SD+TF card) storage, single card supports up to 512G. Support hot swap
21. 1 MICRO USB to backup data or device upgrade, 1CH RJ45 to realize AI functions with other normal MDVR.
22. 4 alarm inputs, 1 alarm output. ICH RS232 or RS485 optional to extend other peripheral
23. Ultra-low power consumption in sleep mode for GPS tracking, support delay-off recording.
24. Super mini size and easy-installation design. Continuous monitoring under the environment of -30°C~70°.
25. Free platform software, mobile App, web, client App, for professional and effective fleet management.
Specifications
|
Basic Parameter
|
Operation system |
Linux |
|
|
Network type |
2G,3G,4G |
|
|
RAM |
2GB |
|
|
DSM cam |
HD 720P cam |
|
|
Other cam |
HD 720P cam |
|
Hardware Function
|
Position |
Support dual module GPS+BD；Precision ≤10m(95%)； |
|
|
|
starting time,warm reboot ≤5s, cold reboot ≤45s |
|
|
WiFi |
2.4G；IEEE 802.11b/g/n |
|
|
Speaker |
8Ω, 1W, with audio cavity |
|
|
Microphone |
Single microphone, support echo and noise elimination |
|
|
G-sensor |
3-axis acceleration sensor |
|
|
Loop denoising |
Compatible with hardware loop denoising |
|
3G/4G wireless |
Frequency |
UMTS:850/900/1900/2100MHz HSUPA/HSDPA:850/1900/2100MHz GSM/GPRS/EDGE:850/900/1800/1900MHz |
|
|
Module type |
Support build-in 3G/4G wireless transmission, TDD-LTE, FDD-LTE |
|
|
protocol |
UDP,TCP/IP |
|
|
voice service |
HR/FR/EFR and AMR |
|
|
message service |
SMS |
|
|
Frequency |
EGSM850/900 2W,GSM1800/1900 1W,WCDMA 0.25W |
|
Interface
|
Aviation interface |
The extension harness supports aviation extension of 2 channel video |
|
|
USB interface |
1*micro USB； |
|
|
SIM card slot |
SIM card slot*1 |
|
|
TF card slot |
SD card slot*1+TF card slot*1(For recording video) |
|
|
Communication Interface |
1CH RS232 |
|
|
Can |
Can interface extension |
|
|
Network |
Ethernet interface extension |
|
|
Alarm Output |
4CH IO alarm input |
|
|
Alarm Output |
1CH switch output, linkage sound and light alarm, oil cut-off, etc. |
|
Light/Button |
Indicator light |
5 |
|
|
Alarm button function |
SOS |
|
Antenna |
BD/GPS antenna |
Built-out |
|
|
4G antenna |
Built-in |
|
|
WIFI antenna |
Built-in |
|
Shut Down Mode |
ACC OFF |
When ACC is off, then DVR shutdown. |
|
|
Delay mode |
When the car power off, you can setting time to delay shutdown the DVR. |
|
|
ultra-low power sleep |
GPS position can continue to report in sleep state; keep location updated |
|
Power |
Power input |
8-36V wide voltage input |
|
Others |
Working temperature |
-40℃-70℃ |
|
|
Storage temperature |
-40℃-85℃ |
|
|
Size and weight |
100*88*98mm |
Integrated ADAS algorithm
