4G Wireless GPS SD Card DVR Video Surveillance System For Vehicles Fleet Management
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW618 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Features: | 4G And GPS , WIFI, WIFI AP, I/O, RS232/485, AI, Basic Monitoring | Power Supply: | 8V-36V |
|---|---|---|---|
| CVBS: | Support | Storage Capacity: | 2*256G SD Cards |
| I/O Cables: | 6ch Alarm Inputs And 2 Ways Outputs | AHD Cameras: | 720P/960P/1080P |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | Customization: | Support, For Both Hardware And Software |
| RJ45 Network Port: | Support | AVI/H.264 Format: | Support |
| Highlight: | 6ch Mobile Video Surveillance System,4G Mobile Video Surveillance System FCC |
||
Product Description

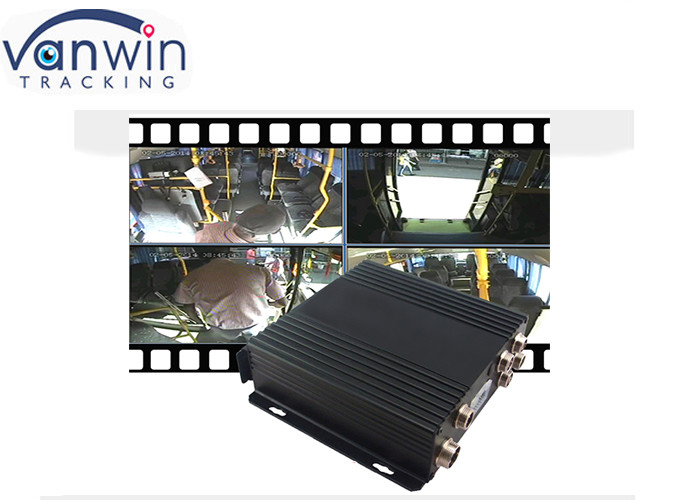

4G Wireless GPS SD Card DVR Video Surveillance System For Vehicles Fleet Management
As a professional mobile dvr manufacturer,Vanwin Tracking supplies the best quality MDVR in China. Vanwin Tracking Vehicle Mobile DVR supports 8 channel FULL D1 camera video recording.3G/4G wireless live video transmission on PC&phone remote control.With GPS positioning on google map or Baidu map.Auto downloading when connect to the Wifi.With RJ45 lan port,RS232&485,I/O port interface for multiple outer device integration.The storage max up to 2TB,which could lasts more than 80 days 720P video recording.4 channel 720P AHD Camera HDD MDVR is widely use for vehicle fleet management.Which with the following function:PTZ Control,Fuel Sensor Monitoring,People Counting,live video monitoring,and we also have the GEO-fence function and so on.You can remotely download video/GPS data/snapshot on the clients.Sodimax is one of the most professional Mobile DVR supplier in china.
Main Features
1) 4CH 1080P/720P Video Recording.
2) With 3G/4G/GPS/WIFI/G-sensor/ Alarm/intercom/RS232&485/Immobilizer
3)Pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
4)9-36V wide voltage with low power consumption.
5)Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
6)One SD Card Storage Or Dual SD Card Storage (Max 128GB)
7)Support USB port data backup and device update;
8)Support GPS/G-Sensor Extension module;
9)Realize real time monitor through 3G/4G;
10)Support to connect OBD on the vehicles(customization)
11)Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel/People Counter;
12) Support VPN
13)Support IOS/Android Phone Remote monitor
Specifications
|
Item |
Description |
|
|
OS |
Linux |
|
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
|
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
|
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
|
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. |
|
|
Dual-Stream |
Supported |
|
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
|
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
|
Resolution |
CIF, HD1 and D1 for selection, max 4*720P |
|
|
Quality |
Grade 1 to grade 5 for selection (descending) |
|
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |
|
|
Recording |
Storage Medium |
Supporting dual SD card, which supports up to 32G |
|
File Format/ System |
ASF/FAT32 |
|
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
|
Video Search |
Searching by time, type, storage device and other conditions |
|
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
|
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
||
|
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
|
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
|
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
|
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
|
|
Wireless Transmission (Optional) |
Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; Compatible with GPRS, EDGE; Embedded Wi-Fi module; |
|
|
GPS (Optional) |
Supporting external GPS |
|
|
Remote Data Transmission Channel Selection |
Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies; |
|
|
PTZ Control |
Supporting PTZ control realized by local ad client software; |
|
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
|
|
G-Sensor |
Embedded |
|
|
System Upgrading |
Supporting SD card and remote upgrading |
|
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Delayed shutdown 3. Timed on/off |
|
Input Voltage |
DC:+8V ~ +36V |
|
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
|
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
|
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
|
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
Humidity |
10% to 95% |
|
|
Dimensions |
141(L)×133(W)×43(H)mm |
|
FAQ
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card. The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
