4G GPS WIFI 4CH 1080P HD Mobile NVR / MDVR For Law Enforcement Vehicle
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW805HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V Wide Voltage | Network: | 3G/4G WCDMA/EVDO |
|---|---|---|---|
| Type: | 4CH Mobile NVR | Storage Card: | 1/2TB HDD /SD Card |
| Alarm: | 6CH Alarm Inputs, 2CH Alarm Output | Client Software: | PC And Mobile Phone Supported |
| Audio Output: | 1 Channel VGA Video Output, 1 Channel Aviation Connector Video Output | Recording Storage: | 1080P 1.9G/hour/channel; 720P 0.8G/hour/channel |
| Network Port: | RJ45 | Video Compression: | H.265 |
| Resolution: | 720P/1080P | Video Format: | PAL/NTSC |
| Main Processor: | Hi3520DV400 | Dimension: | 166mm*155mm*137mm |
| Highlight: | GPS HD Mobile NVR,WIFI 4CH HD Mobile NVR,Law Enforcement Vehicle 4G Mobile NVR |
||
Product Description

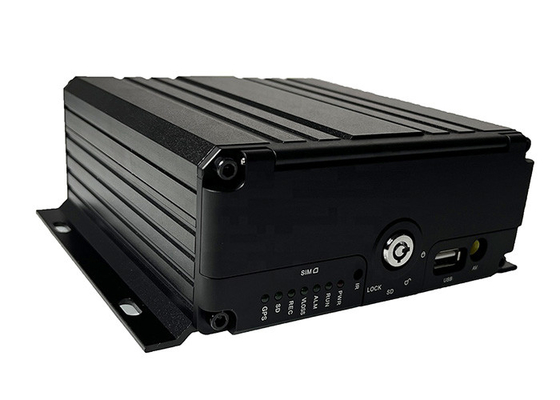

4G GPS WIFI 4CH HD 1080P HDD Mobile NVR / MDVR for Law Enforcement Vehicle / Car / Boat / Ship / Vessel
The system that records both the inside and outside of your vehicle to prove what really happened in any situation.
The 4 camera device support 4ch 1080P IPC cameras.
Main Features
1.H.265 Compression, saves storage costs, smoothly live streaming, clear picture quality, multi-stream recording.

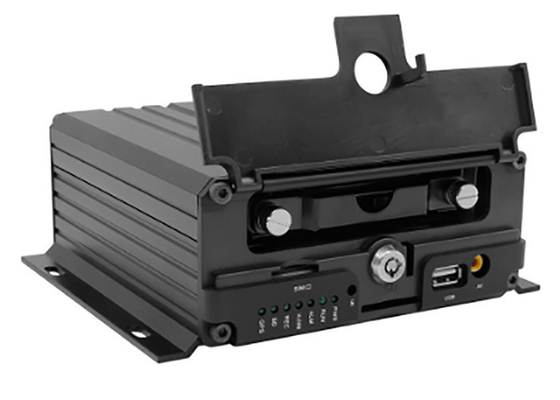

2.Support HDD/SSD/SD Card Storage, completely protect the data from damage.
3.Watchdog abnormal restart function protection, Better machine and data protection.
4.Flameout delay recording function, ACC Delay off,can set 24 hours.
5.On board UPS 8~10 seconds delay power-off for data protection.

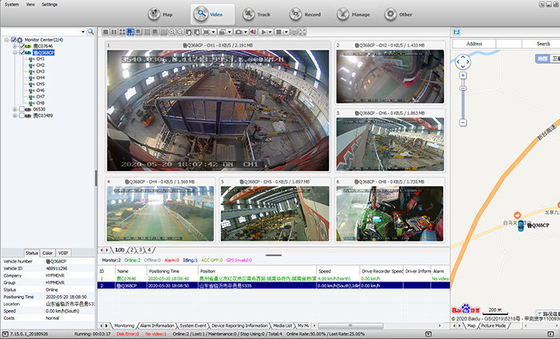

6.Support remote management, voice intercom, fuel monitoring, cut engine remotely function.

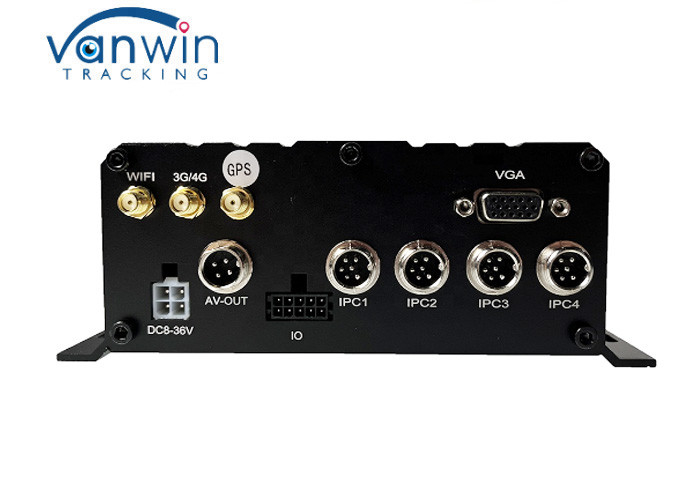

7.Designed with RS232/RS485 and RJ45 peripheral interface.
8.Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.
9.8V~36V wide voltage power supply, Overload/ undervoltage/ short circuit protection, low voltage automatic shutdown.
10.Al-aluminum profile design, small size, fast heat dissiption, dustproof, shockproof.
Power supply:
1. Professional vehicle power supply 8-36V DC wide voltage input design
2. Various protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various models
3. Support intelligent power management identification, automatic shutdown when low power, low power consumption after flameout.
Data storage:
1. Using a special file management mechanism to encrypt data to effectively protect data security
2. Proprietary disk bad sector detection technology, which not only ensures the continuity of video recording, but also prolongs the life of the disk
3. Built-in super capacitor to avoid abnormal power failure data loss and disk damage

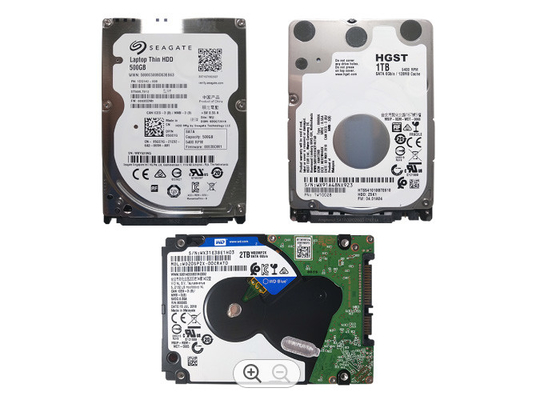

4. Support 2.5inch hard disk, up to 2TB.
5. Support SD storage, up to one 512G.
6. Support hard disk automatic heating (customization)
Main Specifications
How to install?
Advantage of 3G Mobile DVR
1. The original chip
Further Video Recorder, each of which uses the original industrial-grade chip, can ensure stable operation in the severe cold and heat environment.
2. Humanized USB Interface
Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.
3. Support screen switching
Supporting reverse screen enlargement, four-way video switching, providing technical support.
4. Wide Voltage Design
Vehicle broadband power supply can work steadily in the range of DC 8V-36V voltage.
