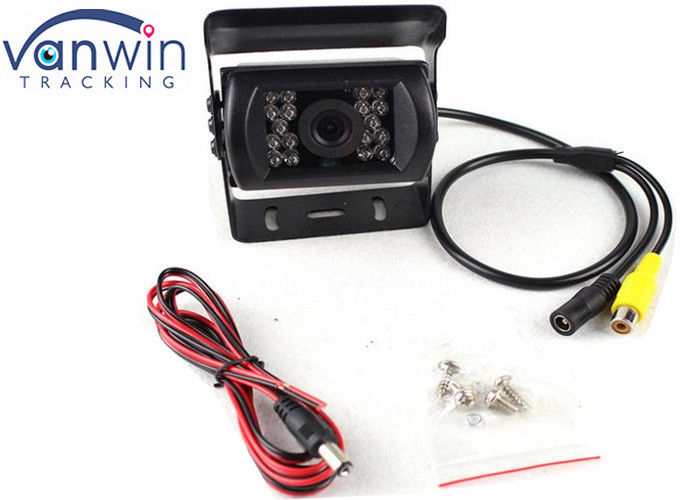

24V Bus Truck Backup Camera for Reversing with CMOS or CCD Sensor
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE, FC, RoHS |
| Model Number: | VW--388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Analog Camera | Sensor: | CMOS And CCD |
|---|---|---|---|
| Day&Night: | Yes | Ir Led: | 18PCS |
| Ir Distance: | 5-10m | View Angle: | 90-120 Degree |
| Style: | Bus/ Truck Backup Camera | Connector: | 4 PIN Connector Or RCA Connector |
| Highlight: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description
24V Bus Truck Backup Camera for Reversing with CMOS or CCD Sensor
Our advantages
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
1. This Bus Truck Backup Camera can support 12V/ 24V power supply.
2. It can support BNC, rca, 4PIN or 6pin connector.
Main Specifications
| TV System | PAL | NTSC | |
| Sensor | 1/3" SHARP RJ2365 | ||
| Effective Pixels | 752(H)*582(V) | 768(H)*582(V) | |
| Horizontal Sync Frequency | kHz | kHz | |
| Vertical Sync Frequency | 50Hz | 60Hz | |
| Scanning System | Interlace | ||
| Sync.System | Internal | ||
| AGC | Auto | ||
| BLC | Auto | ||
| White Balance | Auto | ||
| Resolution | 600TV Lines | ||
| Video out | 1.0Vp-p,75Ohm | ||
| S/N Ratio | >48dB | ||
| Current Consumption | Max.150mA | ||
| Power Supply | DC24V±20% | ||
| Operating Temperature | -20℃-70℃,RH95%MAX | ||
| Storage Temperature | -30℃-70℃,RH95%MAX | ||
| Lens Angel | 120° | ||
| Horizontal Angel | 90° | 90° | |
| Water-proof | IP67 | ||
| IR leds | 18 Pcs | ||
| Minimum Illumination | 0.1 Lux | ||
| Audio out | 0-7.8VP-P | ||
