3G Video H.264 Digital Video Recorder Remote Monitoring Bidrectional
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW605C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Functions: | People Counter ,3G Live Video ,GPS Track ,G-sensor | Support: | Softwares And Technology Support |
|---|---|---|---|
| Power Supply: | 8V-36V | Accuracy: | 98% Above |
| Storage Capacity: | 1TB HDD Or SSD | Cameras: | Two Cameras For Two Doors |
| Technology: | Unparalled And NEW | Product Name: | 3G Video Streaming DVR With Sophisticated Automatic Passenger Counting (APC) Systems |
| Highlight: | 3g cctv dvr,3g h.264 dvr |
||
Product Description

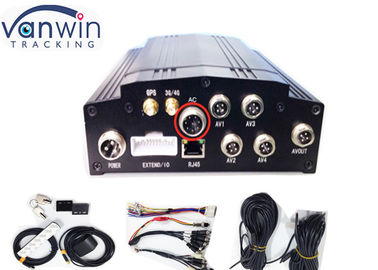

3G Video H.264 Digital Video Recorder Remote Monitoring Bidrectional
Highlights

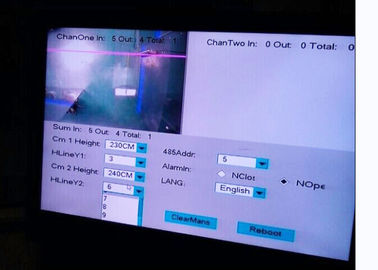

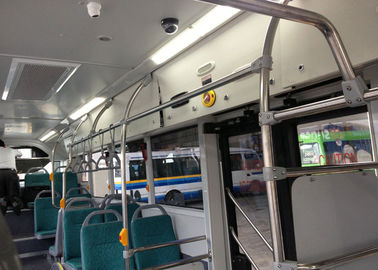

Video people counter is our new and unparalleled technology in the market,whose accuracy is over 98%.It counts people on and off from the counting cameras to the mdvr then show the data on the monitoring platform.We have clients from Singapore and Romania ,Mexico who prove them totally ,one of which is the biggest clients from Singapore ,widely sell our counter dvr to the airport and buses .
Welcome you for ask more details from us.
Features are very accuracy over 98% ,count by two counting cameras with 3G live video ,ontime data .Easy to instal
Specification
|
Item |
Description |
||
|
OS |
Linux |
||
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
||
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
||
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
||
|
Video Compression Format |
Compression coding. Applying hisilicon hi-performance processor. |
||
|
Dual-Stream |
Supported |
||
|
Preview Function |
Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
||
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
||
|
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
||
|
Quality |
Grade 1 to grade 5 for selection (descending) |
||
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
|
Compression Format |
G.726 coding |
||
|
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
|
|
File Format/ System |
ASF/FAT32 |
||
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
||
|
Video Search |
Searching by time, type, storage device and other conditions |
||
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
||
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
|||
|
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
||
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
||
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
||
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
||
|
Wireless Transmission (Optional) |
Supporting Wi-Fi; |
||
|
GPS (Optional) |
Supporting external GPS |
||
|
PTZ Control |
Supporting PTZ control realized by local; |
||
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
||
|
G-Sensor |
Embedded |
||
|
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
||
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
|
Input Voltage |
DC:+8V ~ +36V |
||
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
||
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
||
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
||
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
|
Humidity |
10% to 95% |
||
|
Dimensions |
160(W) x62(H) x200(D) mm. |
||
|
Weight |
Net: 2200g, Gross: 3500g |
||
CMS Platform
Our Advantages
1. Our dvr has the world class anti-vibration technology,widely used in military .It is very long lifetime for over 10 years.
2. We are professional manufacturer,who can offer you great price and technology support.
3. We have a very warm and capable technical team,who can customize many projects for you.We have many examples like VPN DVR ,RFID DVR and so on .Please check our offical website .
4. Great Service.
Testing Procedure
Application
