1080P Ultra-Wide Angle Smart Automotive Camera IP68 AHD Vehicle Surveillance System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-363 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| System: | PAL/NTSC | Field Angle: | 120°/150°/170° |
|---|---|---|---|
| Waterproof Grade: | IP68 | Color: | Black |
| Connector: | 4 Pin / RCA | Operating Temperature: | -20℃~70℃ |
Product Description
1080P Ultra-Wide Angle Smart Automotive Camera IP68 AHD Vehicle Surveillance System
The unique customized ultra wide angle dash cam supports 120°/150°/170° field of view, providing stable infrared night vision and side view solutions for various vehicles in various scenes. Our cameras have undergone strict Strict and comprehensive testing like Camera Aging test, High and Low Temperature test, Waterproof Vacuum test, Vibration test, Air Tightness Leakage test, Salt Spray test, Focusing Technology test, etc. Perfect match your need.
1080P Ultra-Wide Angle Smart Automotive Camera Key Features
Ultra HD wide-angle imaging (150° flagship configuration)
AHD 3.0 image architecture: 6-layer lens set with nonlinear distortion correction algorithm, center resolution up to 300 lines /mm, edge deformation < 5%, support 1080P full HD /720P adaptive dual-mode output.
Starlight night vision performance: in 0.1 Lux low-light level environment, based on STARVIS 2 generation CMOS sensor and 65dB signal-to-noise ratio control, output noise-free color screen; Dynamic range increased to 120dB when switching between black and white at night.
All-weather protection system
IP68 industrial seal: Integrated metal cavity through vacuum, soaking water, dust fog, high temperature aging and other multiple tests, long dust and waterproof life.
Anti-vibration and anti-electromagnetic interference: 200Hz~2KHz full frequency vibration protection conforms to the Chinese national standard GB/T28046-2011, double shielded coaxial cable can resist 100V/m strong electromagnetic field, suitable for mining, port and other heavy machinery scenarios.
Intelligent engineering design
No red exposure infrared supplementary light: 6 940nm wavelength LED array, 3 meters accurate distance at night and avoid human visible light interference, ICR filter day and night mode switch response time < 0.1 seconds.
Rapid deployment architecture: Support 120°/150°/170° three lens options, 4Pin aviation head and RCA connector options, reduce installation time by 30%.
Flexible production service
Basic model is matte black body, batch order can be customized purple/green/yellow painting (MOQ≥500), support brand LOGO laser etching.
Main Specification
| Sensor | 1/3" CMOS | 1/3" Starlight CMOS | 1/2.9" CMOS |
| Horizontal Resolution | 1.3Megapixel | 1.3Megapixel | 2.0Megapixel |
| TV system | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixel | 1280(H)*960(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Minimum Illumination | Color 0.1Lux,0 Lux with IR | Color 0.01Lux,0 Lux with IR | Color 0.05Lux,0 Lux with IR |
| S/N ratio | ≥45dB | ≥60dB | ≥56dB |
| Day/Night mode | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching | ||
| Sync system | Internal | ||
| Backlight compensation | AUTO | ||
| White balance | AUTO | ||
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) | ||
| Video output | AHD(default)Standard, 720P output | AHD(default)Standard, 1080P output | |
| lens | 170°/150°/120°/More optional | 150°/120°/More optional | |
| IR leds Qty | 5pcs LEDs | ||
| IR distance | ≤3 meters | ||
| waterproof grade | IP68 | ||
| Operating Temp. | -20°C~+70°C, RH95%MAX | ||
| Storage Temp | -30°C~+80°C, RH95%MAX | ||
| Power supply | DC12V±10% | ||
| Power consumption | ≤2W | ||
| Dimension | 73.7*54*41(mm) | ||

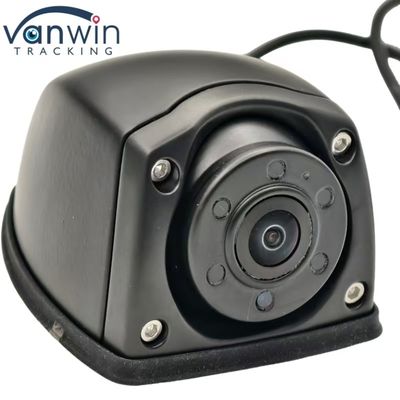

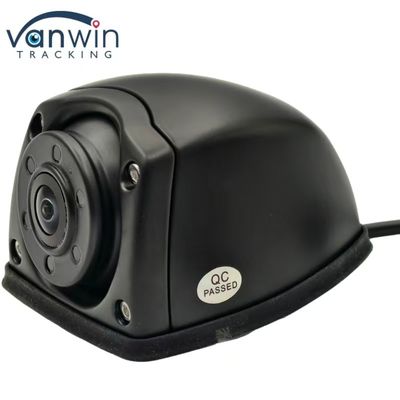

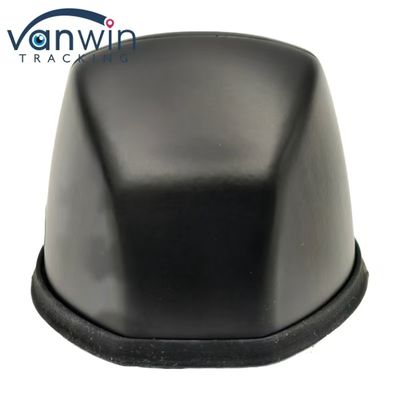

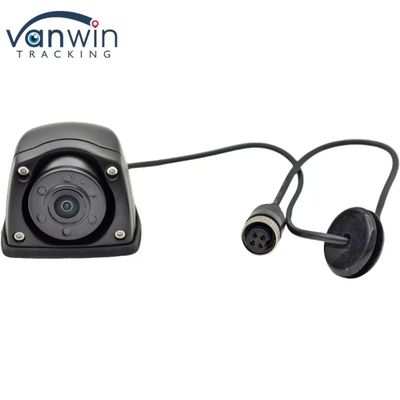

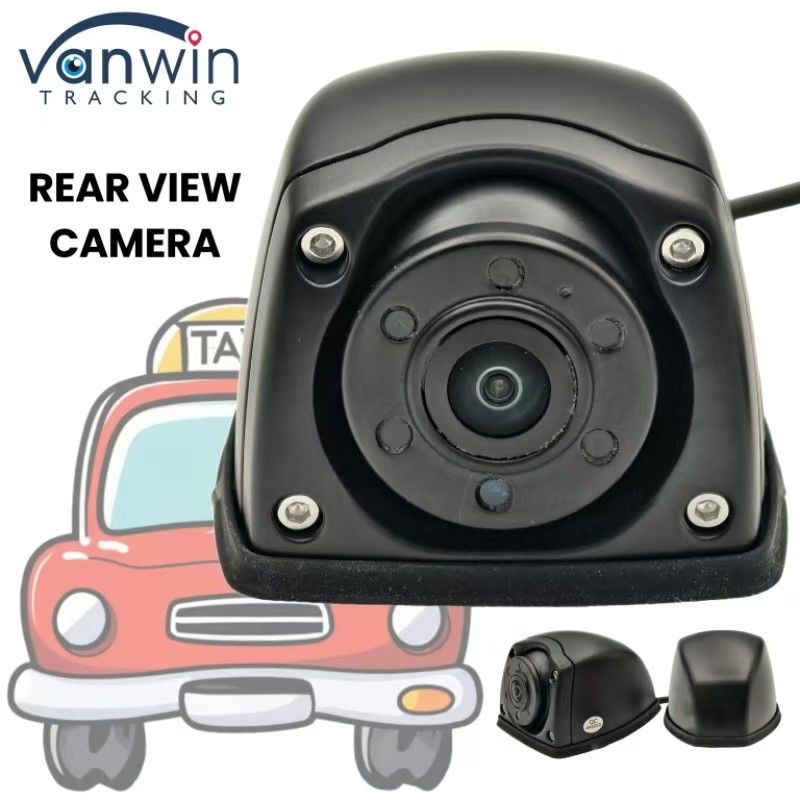

Product Picture
Application Scenarios
Bus/logistics vehicle: 150° viewing Angle covers the front door coin area to the rear row seat, avoiding the monitoring blind area.
Construction machinery: IP68 protection grade to withstand high-pressure water gun cleaning and dust environment, extend the maintenance cycle.
Delivery cycle: 72 hours for spot delivery, 15-30 working days for custom delivery.
Our Industry Advantage
We specialize in the research, development, production and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Our professional QC team is committed to strict quality control and consistently delivers high-standard products. We have the honor of serving large companies around the world and customizing professional projects for global customers. Looking forward to the opportunity to work with you in the near future.
FAQ
1. Q: How do I install a vehicle camera on my truck?
A: We have detailed product installation and operation instructions to help you install and use this vehicle camera better and faster.
2. Q: Is this camera suitable for use on a crane?
A: Yes, this product is suitable for a variety of industrial machinery.
3. Q: Does your company support customized services?
A: Yes, we have provided customized solutions for many customers to meet their specific needs, with a customer satisfaction rate of 99%. If you have customized requirements for the vehicle monitoring system, please send it to us by email.
