1080P AHD Rear View Camera Waterproof Car Surveillance Camera For Taxi Bus Van Truck
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-372 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| TV System: | PAL/NTSC | Operating Temperature: | -20℃~70℃ |
|---|---|---|---|
| LED: | 18pcs | Noise Reduction: | 3D |
| Waterproof Grade: | IP68 | Warranty: | 12 Month |
Product Description
1080P AHD Rear View Camera Waterproof Car Surveillance Camera For Taxi Bus Van Truck
Our cameras have undergone strict and comprehensive testing like Camera Aging test, High and Low Temperature test, Waterproof Vacuum test, Vibration test, Air Tightness Leakage test, Salt Spray test, Focusing Technology test, etc. We have a strong customization capability, a variety of exclusive private model cameras to choose from. Perfectly suited to your company's needs.
1080P AHD Rear View Camera Key Features
√The reverse camera is one of the essential accessories of a car, especially in complicated traffic situations. Car reverse cameras help drivers solve blind spots when backing up or turning on difficult roads.
√Car reverse cameras are elegantly designed with high quality materials and high durability.
√High waterproof rating, no fear of rain and snow weather, so that you can travel at ease.
√The large viewing Angle gives you a more comprehensive view of the driving field and improves driving safety by 200%.
√The full HD resolution provides the sharpest images and, combined with LED lights, ensures the best recording even at night.
√The product is compact and easy to install, and is suitable for many types of vehicles: cars, trucks, family cars, etc.
√Installing a reverse camera on a car is very important for drivers, especially those who are just learning to drive. Reverse cameras are like an extra pair of eyes that help drivers see obstacles behind them and reverse more safely and efficiently.
Main Specifications
| Type | Model | VW-372 1080P | ||
| Camera | Main processor | Hi3516EV200 | ||
| Image sensor | 1/2.9" Progressive Scan CMOS | |||
| Horizontal Resolution | 3MP | |||
| Min.Illumination | Color:0.1Lux/F1.2(0Lux IR Leds ON) | |||
| S/N Ratio | ≥50dB | |||
| Day/Night mode | ICR IR filter automatically switches | |||
| Lens | 2.8mm/3.6mm | |||
| IR LEDs | 18 PCS | |||
| IR distance | ≤10M | |||
| Electronic shutter | 1/25-1/10000 | |||
| White Balance | Support | |||
| BLC | Support | |||
| Noise Reduction | Support 3D NR | |||
| WDR | Support D-DWR | |||
| Motion Detection | Support | |||
| Privacy Shelter | Support 4 areas | |||
| Video | Video compression standard | H.264 ,H.265 | ||
| Video resolution | Main stream:2304×1296,1920×1080,Sub stream:704*576 ,640*360 , 352*288 | |||
| Video frame rate | 3MP(20fps50HZ/60HZ),2MP(25fps50HZ/60HZ) | |||
| Video adjustments | Brightness, saturability,chroma,contrast,sharpness adjustment | |||
| compression standard | Compression output rate | 32 Kbps~16Mbps | ||
| Audio | Audio | Optional,G.711U | ||
| Input | 1CH In | |||
| Output | 1CH Out | |||
| Network function | Interface Protocol | Support ONVIF | ||
| Network protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.) | |||
| Client | iPhone, iPad, Android,Wind ows | |||
| Port | Ethernet | RJ-45 10M/100M | ||
| General specification | IP-rated | IP68 waterproof | ||
| POE | POE 12V optional | |||
| Working Temperature | -20°C~+70°C | |||
| Power supply | DC12V±10% | |||
| Power consumption | ≤ 6W | |||
| Size | 79*67.4*68.3 | |||

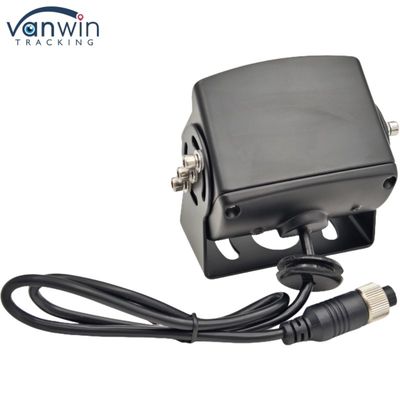

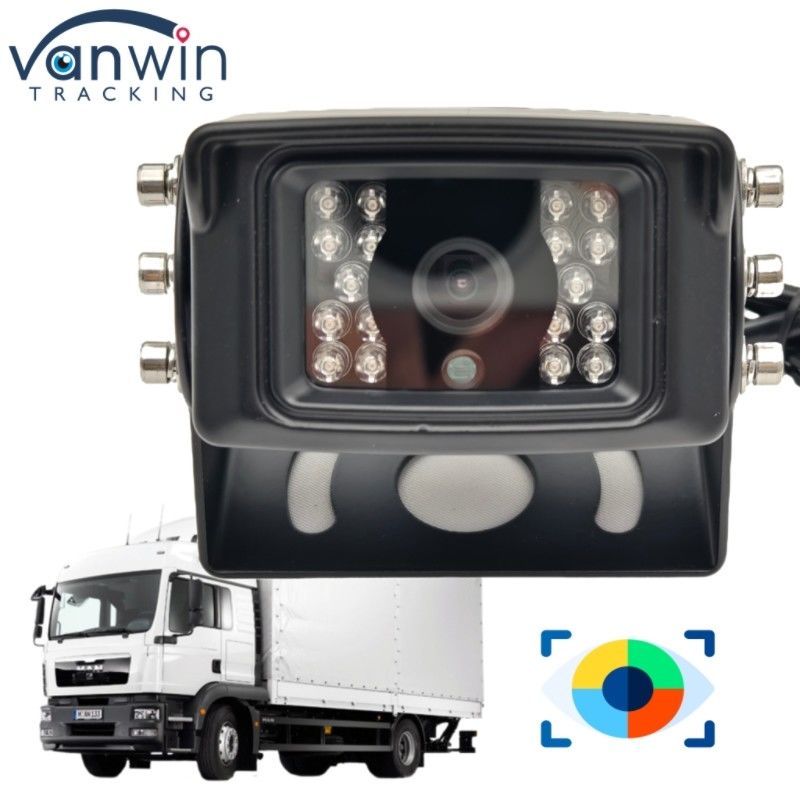

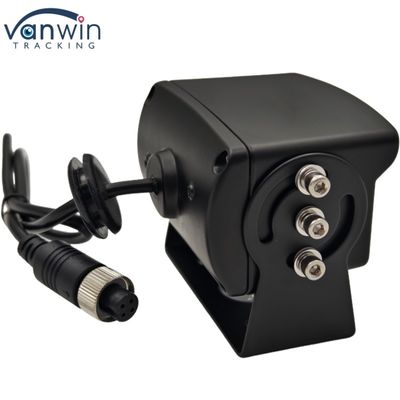

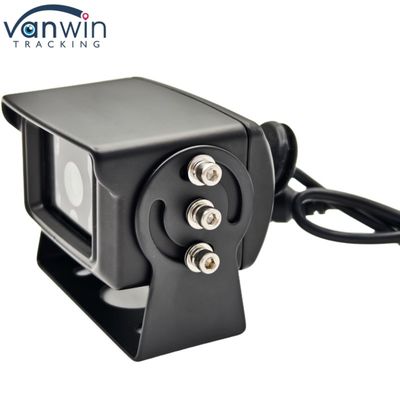

Product Picture
Application Scenarios
Our Industry Advantage
We specialize in the research, development, production and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Our professional QC team is committed to strict quality control and consistently delivers high-standard products. We have the honor of serving large companies around the world and customizing professional projects for global customers. Looking forward to the opportunity to work with you in the near future.
FAQ
1. Q: How do I install a vehicle camera on my car?
A: We have detailed product installation and operation instructions to help you install and use this vehicle camera better and faster.
2. Q: Is this camera suitable for use on a crane?
A: Yes, this product is suitable for a variety of industrial machinery.
3.Do the backup camera systems work at night?
Yes - most of our backup cameras come with infra-red lights and all come with excellent night vision.
4. Q: Does your company support customized services?
A: Yes, we have provided customized solutions for many customers to meet their specific needs, with a customer satisfaction rate of 99%. If you have customized requirements for the vehicle monitoring system, please send it to us by email.
