Oil Level Gauge Diesel Generator Fuel Tank Level Real Time Oil Monitoring Sensor For Truck Equipped
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-N08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | Rod-Type Fuel Sensor | Warranty: | 12 Months |
|---|---|---|---|
| Size: | 0.1M-1.5M Depth For Fuel Tank | Working Temperature: | -40℃ To +85℃ |
| Protection Class: | IP67 | Accuracy: | 99.3% UP |
| Customized Support: | OEM, ODM | Application: | Vehicles, Construction Machinery, Ships, Etc |
| Highlight: | Real Time Oil Monitoring Sensor,Diesel Generator Oil Monitoring Sensor,Truck Equipped Oil Monitoring Sensor |
||
Product Description

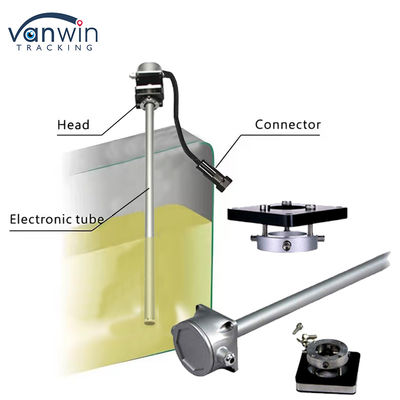

Rod-Type Fuel Sensor Description
Oil Level Gauge diesel Generator Fuel Tank Level Real Time Oil Monitoring Sensor For Truck Equipped
The Rod-Type Fuel Sensor is a precision-engineered device designed to accurately measure and monitor fuel levels in various types of fuel tanks. This sensor is ideal for applications in automotive, marine, industrial, and agricultural machinery, where reliable fuel level monitoring is essential for efficient operation and maintenance.

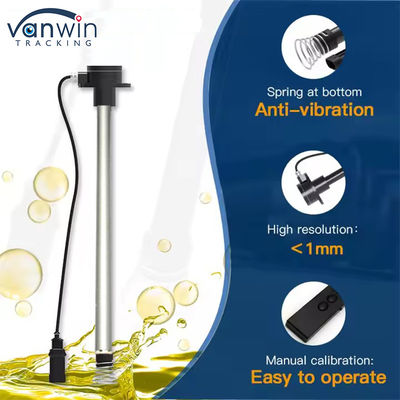

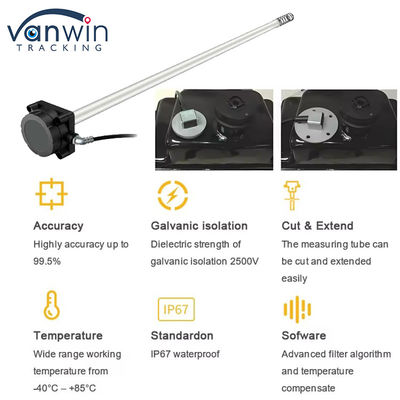

Rod-Type Fuel Sensor Key Features:
- High Accuracy: The sensor provides precise and reliable fuel level readings, ensuring optimal fuel management and preventing unexpected run-outs.
- Durable Construction: Built with robust materials, the sensor is resistant to corrosion, wear, and harsh environmental conditions, making it suitable for long-term use in demanding environments.
- Easy Installation: The rod-type design allows for straightforward installation in most fuel tanks, with compatibility for a wide range of tank sizes and configurations.
- Wide Compatibility: The sensor is compatible with various types of fuels, including diesel, gasoline, and other liquid fuels, making it versatile for different applications.
- Low Maintenance: Designed for minimal maintenance, the sensor ensures consistent performance with little need for frequent adjustments or replacements.
- Customizable Length: Available in various lengths to suit different tank depths, ensuring a perfect fit for your specific requirements.
- Integrated Electronics: Equipped with advanced electronic components, the sensor provides stable and accurate signal output for integration with fuel monitoring systems or gauges.
Rod-Type Fuel Sensor Main Specification
| Item | Performance parameters |
| Collection principle | Capacitance |
| Size |
100mm to 1500mm(minimum can be detected100mm,maximum can be detected 1500mm) |
|
Electrical parameters |
Input DC:4—70V |
|
Power Consumption |
0.13W/5V, 0.19W/12V, 0.38W/24V |
|
Signal output (can be customized) |
Voltage output:0—5V |
|
Signal output (can be customized) |
Digital output:RS-232 RS-485 |
|
Signal output (can be customized) |
Analog resistant output:10—500Ω |
|
Signal output (can be customized) |
Current output: 4—20mA |
|
Signal output (can be customized) |
Communication baud rate:2400,4800,9600,57600,115200 |
|
Detection of liquid type |
Diesel, bio diesel, kerosene, gasoline, etc. |
|
Use of the environment |
Work temperature:-40℃~+85℃ |
|
Use of the environment |
Save temperature:-40℃~+105℃ |
| Material | Aluminum alloy |
| Protection class | IP67 |
Applications:
- Automotive: Trucks, buses, and heavy-duty vehicles.
- Marine: Boats, yachts, and other marine vessels.
- Industrial: Generators, construction equipment, and machinery.
- Agricultural: Tractors, harvesters, and other farming equipment.
Rod-Type Fuel Sensor Photos
Platform Sceenshot:Rod-Type Fuel Sensor
FAQ:Rod-Type Fuel Sensor
Q1: Do you have your own factory?
A1: We are the fuel level sensor manufacturer and tracking software platform operator with 6 years of experience.
Q2:Why choose us?
A2:AoooG is a multifuncitional GPS tracking and IoT platform used for mobile and stationary assets tracking and integrated with
more than types of GPS tracking devices, our products and services have covered more than 80 countries and regions around the
world and enjoy high brand awareness and reputation in America, Africa, Asia and Europe.
Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but also IOS/Android/Huawei APP.
Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also software functionalities, UI design.
Q5: What is the MOQ?
A5: MOQ will be 2pcs.
Q6: What's your delivery time?
A6: For samples, 2-5 days, bulk order, 5-15 days generally.
Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.
Q8: Can we have our logo or company name to be printed on your products or the package?
A8: Yes, of course.
Q9: What is the Warranty period of your products?
A:9: 12 months.
Q10: If the products have quality problems, what after-sale service I can get?
A10: Online chat service, remote technology support and platform service.
