AHD 1080P IP69K Side View Camera With Night Vision Vehicle CCTV Camera For Bus Truck
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-775 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Type: | AHD Side View Camera | Lens: | 3.6mm/2.8mm |
|---|---|---|---|
| View Angle: | 150 Degree | Resolution: | 720P/960P/1080P |
| Ir Distance: | 10-15 Meters | Ir Led: | 10 PCS |
| Waterproof: | IP69K | Connector: | 4 Pin Aviation |

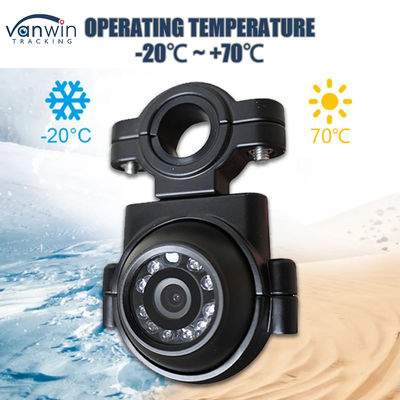

| Operation Temperature: | -20℃ To 70℃ | Warranty: | 12 Months |
| Highlight: | IP69K Side View Camera,Vehicle CCTV Side View Camera,AHD 1080P Side View Camera |
||
Product Description
IP69K AHD 1080P Side View Camera Description
AHD 1080P IP69K Side View Camera With Night Vision Vehicle CCTV Camera For Bus Truck
The IP69K Night Vision AHD 1080P Side View Camera is a premium-grade, high-performance camera designed to deliver exceptional visibility and safety for trucks, buses, trailers, and heavy-duty vehicles. Built to withstand the most demanding environments, this camera combines advanced night vision technology, superior image quality, and rugged durability to ensure reliable performance in all conditions.
Night Vision Side View Camera Key Features:
IP69K Certified Durability:
The camera meets the IP69K rating, offering complete protection against dust, high-pressure water jets, and extreme temperatures. It is ideal for use in harsh environments, including off-road, construction, and industrial applications.
AHD 1080P High-Resolution Imaging:
Delivers Full HD 1080p resolution for crystal-clear, detailed images, ensuring you can see every critical detail on the road or worksite.
Advanced Night Vision:
Equipped with high-power infrared (IR) LEDs, the camera provides superior night vision capabilities, with a visibility range of up to 30 meters (98 feet) in complete darkness.
Wide-Angle View:
Features a 120° wide-angle lens to minimize blind spots and provide a broad field of view, enhancing safety during lane changes, reversing, and parking.
Rugged and Weatherproof Design:
Constructed with high-quality materials, the camera is resistant to shock, vibration, and extreme temperatures, ensuring reliable performance in tough conditions.
Anti-Glare and Anti-Fog Lens:
The lens is specially coated to reduce glare from headlights and prevent fogging, ensuring clear visibility in all lighting and weather conditions.
Easy Installation:
Designed for seamless integration with most vehicles, the camera comes with a user-friendly mounting system and all necessary wiring for quick and hassle-free installation.
Real-Time Monitoring:
Compatible with in-cabin monitors or digital dashboards, the camera provides real-time video feed, helping drivers make informed decisions and avoid accidents.
Versatile Applications:
Perfect for trucks, trailers, buses, RVs, and heavy machinery, this camera is a must-have for enhancing safety and operational efficiency.
Side View Camera Specification:
| Model | JK-AHD-C775 |
| Image Sensor | 1/4" progressive scan CMOS |
| Horizontal Resolution | 1.0Megapixel |
| TV system | PAL/NTSC |
| Effective pixels | 1280(H)*800(V) |
| Minimum Illumination | 0.01Lux@(AGC ON),0Lux with IR |
| S/N | ≥41dB |
| Day and night switch | Motor Driver ICR Filter Switch (Magnetic Valve Driver ICR optional) |
| Auto Gain Control | Support |
| Back light compensation | Support |
| White Balance | AUTO |
| Digital Noise Reduction | Adaptive digital noise reduction,2D/3D-DNR |
| Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Video Output | Follow AHD standard |
| Image Function | Original/Reverse image |
| Output Adapter | 4P aviation head cable |
| Lens | 2.8mm(3.6mm Optional),M12*P0.5 |
| IR LEDS Quantity | 10 PCS Φ5 LEDS |
| IR distance | 10～15 meters |
| IP grade | IP69K |
| Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) |
| Power Supply | DC12V±10% |
| Power Consumption | ≤2.5W |
| Dimension | 112.5*75*50(mm) |
| Application scenarios: suitable for school bus, container trucks, harvesters, excavators and other side view camera, Mounting rod diameter: Ф20 ~ 30mm | |
Why Choose This Camera?
The IP69K Night Vision AHD 1080P Side View Camera is the ultimate solution for drivers and fleet operators who prioritize safety, durability, and performance. Whether you're navigating through dark rural roads, busy urban streets, or challenging off-road terrains, this camera ensures you have a clear view of your surroundings at all times.
AHD Side View Camera Details:
Benefits
Increased Safety: Reduce the risk of accidents by gaining a better understanding of your environment, especially in challenging driving situations.
Improved Parking Accuracy: Navigate parking lots and spaces with ease, ensuring you can park confidently and accurately.
Enhanced Awareness: Stay aware of pedestrians, cyclists, and other vehicles, making every drive safer for you and those around you.
FAQ:Side View Camera-Night Vision IP69K Camera
Q1: What is the material of your camera lens?
A: Glass lens can ensure constant clarity of your camera
Q2: Is your camera with parking line?
A: Sure, it is up to your choice.
Q3: What is the delivery time?
A: 5 Days for sample orders, 10 days for regular order
Q4: What is your MOQ?
A: 500 sets for regular order(can mix different models). Trial order acceptable.
Q5: What is your payment method?
A: T/T, L/C, and Western Union
About Us
Shenzhen Vanwin Tracking Co.,Ltd ,is one high-tech industry specializing in R&D ,production,sales of vehicle video monitoring system,3G/4G/5G/GPS monitoring kits, intellectual public transit dispatcher`s monitoring system ,video people counter . Our products refers to SD HDD mobile dvr,3G/4G/5G remote control monitoring dvr with mature ADAS DMS BSD,vehicle multi-media Ads machine,car camera,software etc .They are widely used in public transport, passengers traffic,logistics,law enforcement cars,escort and so on .With very strong research technology,senior industry background,very stable good quality ,on-time production&delivery capacity ,high efficiency service ,we soon have achieved in one of the leaders in the market.
Enhance your driving experience and reduce the risk of accidents with this reliable, high-tech side-view camera. Perfect for professional drivers and fleet managers alike!
