H.264 4CH HD 1080P Mobile DVR 4G GPS WIFI SD Card MINI MDVR For Car Video Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M15Hv |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 4ch Mobile DVR Support 3g 4g WIFI GPS MDVR | Resolution: | 4ch 1080P |
|---|---|---|---|
| Operating System: | LINUX | Warranty: | 18 Months |
| Storage: | 2pc*512G SD Card | Video Compression: | H. 264 |
| Power Input: | 12~36V DC | Applicable: | Universal Vehicles, Bus, Truck, Other Special Vehicles |
| Highlight: | H.264 Mobile DVR,4CH Mobile DVR,1080P Mobile DVR |
||
Product Description
SD Card 4CH Mobile DVR Description
H.264 4CH HD 1080P Mobile DVR 4G GPS WIFI SD Card MINI MDVR For Car Video Monitoring
The 4CH Mobile DVR is a compact and efficient digital video recorder designed for mobile surveillance applications. This device supports four channels of video input, allowing for comprehensive monitoring of various locations simultaneously.
AHD 4G GPS Mobile DVR Key Features:
- 4-Channel Video Input: Supports up to four cameras, enabling multi-angle surveillance for enhanced security.
- SD Card Storage: Equipped with an SD card slot for easy and expandable storage options. Supports high-capacity SD cards for extended recording times.
- Mobile Compatibility: Designed for vehicles, ensuring reliable performance in mobile environments. Ideal for buses, trucks, and other transport vehicles.
- Real-Time Monitoring: Provides real-time video playback and recording, ensuring you never miss critical moments.
- Motion Detection: Advanced motion detection technology triggers alerts and recordings only when necessary, optimizing storage usage.
- User-Friendly Interface: Intuitive menu navigation and controls make it easy to configure settings and access recordings.
- Robust Build: Built to withstand harsh environments, making it suitable for outdoor and off-road applications.
- Remote Access: Enables remote monitoring and playback capabilities via mobile devices or computers.
4CH Mobile DVR Specifications:
| Item | Description | |
| OS | Linux | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | CIF, HD1 and D1 for selection, max 4*720P/1080P | |
| Quality | Grade 1 to grade 5 for selection (descending) | |
| Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
| Audio | Audio Input, Output | 4-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting dual SD card, which supports up to 512G |
| File Format/ System | ASF/FAT32 | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 4-channel on/off signal alarm input, 1-channel on/off signal alarm output |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| Communication Ports | RS232, RJ45 10M/100M self-adaptable network interface | |
| Wireless Transmission (Optional) |
Embedded 3G/4G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; Compatible with GPRS, EDGE; Embedded Wi-Fi module; |
|
| GPS (Optional) | Supporting external GPS | |
| Remote Data Transmission Channel Selection | Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies; | |
| PTZ Control | Supporting PTZ control realized by local ad client software; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card and remote upgrading | |
| Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Delayed shutdown 3. Timed on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@4*0.5A; +5V@0.5A | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | <10W in normal operation; <0.5W in standby mode | |
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
| Dimensions | 141(L)×133(W)×43(H)mm | |

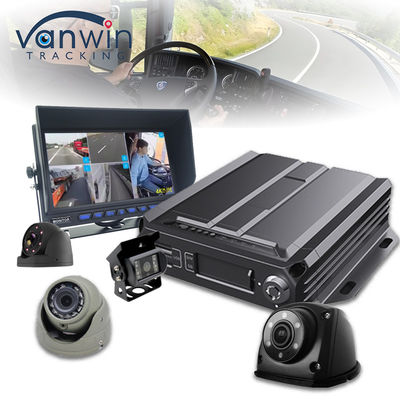

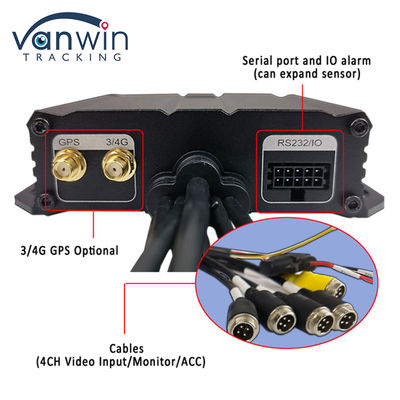

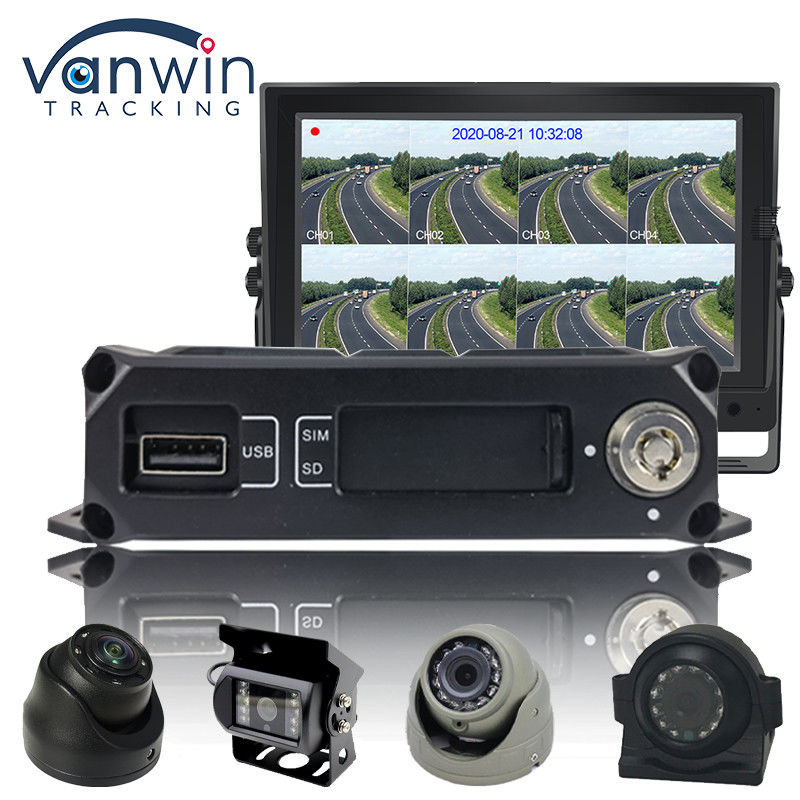

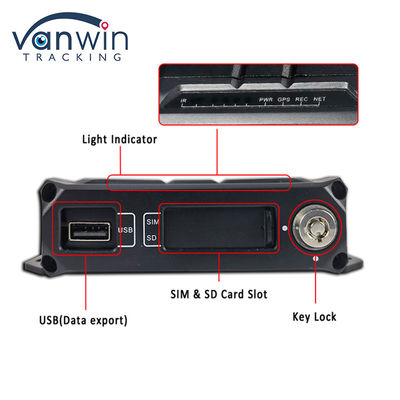

4G 1080P 4CH Mobile DVR Photos:
Usage precautions for the SD Card 4CH Mobile DVR:
-
Compatibility:
- Ensure that the SD card is compatible with the device. It's recommended to use high-quality SD cards for better performance and stability.
-
Format the SD Card:
- Format the SD card before the first use to ensure proper recognition and functionality by the device.
-
Power Management:
- Connect the device to a stable power source during use to avoid sudden power loss while recording.
-
Temperature Control:
- Avoid using the device in extreme temperatures, as overheating or excessive cold can affect performance and the lifespan of the SD card.
-
Regular Checks:
- Periodically check the storage status of the SD card to ensure there is no damage or data loss.
-
Data Backup:
- Regularly back up important data to prevent loss due to SD card failure or accidental deletion.
-
Secure Installation:
- Ensure the device is securely installed in the vehicle to prevent vibrations or dislodging while driving.
-
Firmware Updates:
- Regularly check and update the device firmware to ensure access to the latest features and security patches.
-
Compliance with Local Laws:
- Be aware of and adhere to local laws and regulations regarding video surveillance and privacy.
-
Avoid Moisture and Dust:
- Keep the device away from damp and dusty environments to prevent damage.
