HD IR Night Vision Vehicle Metal Dome Camera LED Truck Bus Car Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW226 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Video Compression Standard: | H.264/H.265 | IR Distance: | ≤8 Meters |
|---|---|---|---|
| Connector: | POE, 4PIN, BNC+DC, 6PIN | Lens: | 2.1mm / 2.8mm /3.6mm |
| Lens Mount: | M12*P0.5 | Sensor: | CMOS / CCD |
| Application: | For Truck Or Bus | TV System:: | PAL Or NTSC |
| Certification: | CE/FCC/RoHS | Warranty: | 12 Months |
| Highlight: | LED Vehicle Metal Dome Camera,IR Night Vision Metal Dome Camera |
||
Product Description
HD IR Night Vision Vehicle Metal Dome Camera LED Truck Bus Car Camera
Specification
| Camera | Main processor | FH8852V200 |
| Image Sensor | 1/2.9″ CMOS GC2063 | |
| Horizontal Resolution | 3.0MP/2.0MP(default) | |
| Minimum Illumination | Color:0.01Lux/F1.2 | |
| S/N | ≥69dB(AGC OFF) | |
| Day and night switch | EXT(default),Support IR CUT switching | |
| Electronic Shutter | 1/25S～1/10000S | |
| IR LEDS Quantity | 12pcs LEDs | |
| IR distance | ≤8 meters | |
| Lens | Lens focal length 2.8mm | 2.8mm |
| Lens mount | M12*P0.5 | |
| Video Processing | Video compression standard | H.264/H.265 |
| Video resolution | Main stream: 2304x1296,1920×1080,1280×720；Sub stream:800x448 ,704x576,640x360,352x288 | |
| Video frame rate | 300W(30fps) | |
| Audio | Audio | G.711U,G.711A |
| Audio input | Built-in Mic | |
| Network Function | Network Protocol | Support: P2P,CGI,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP, DNS,IP Filter |
| Access Protocol | Support ONVIF Protocol | |
| Interface | Communication interface | 10/100M adaptable Ethernet interface, RJ45 |
| General Specification | Waterproof grade | IP65 |
| Operating Temperature | ,-20°C~+70°C | |
| Power Supply | DC12V±10% |

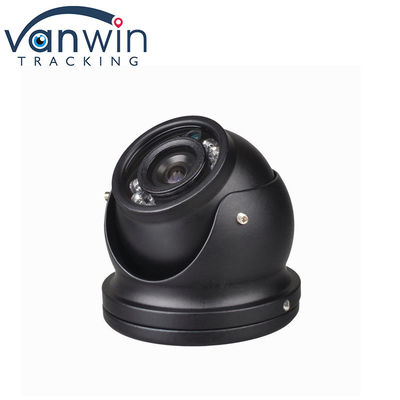

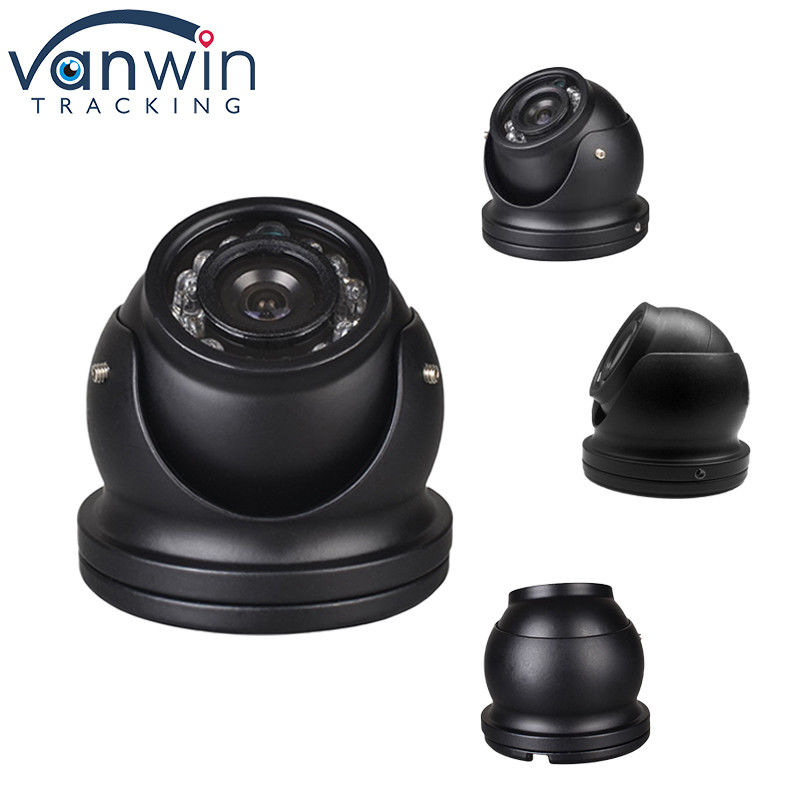

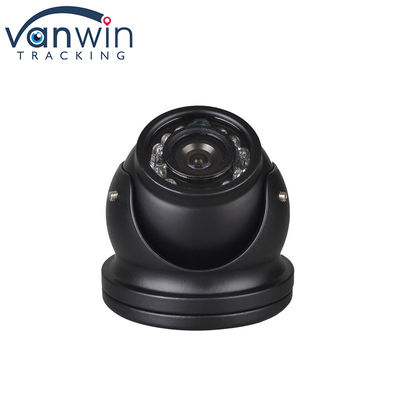

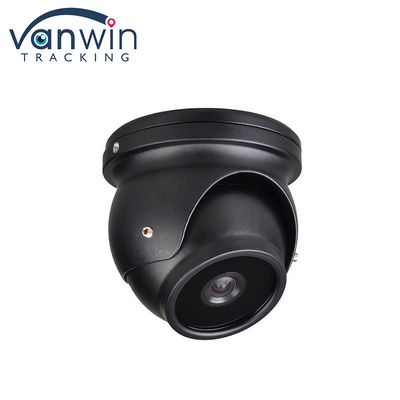

Product Photos
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
